EVGA SuperNOVA 550W G2 Power Supply

Power Supply

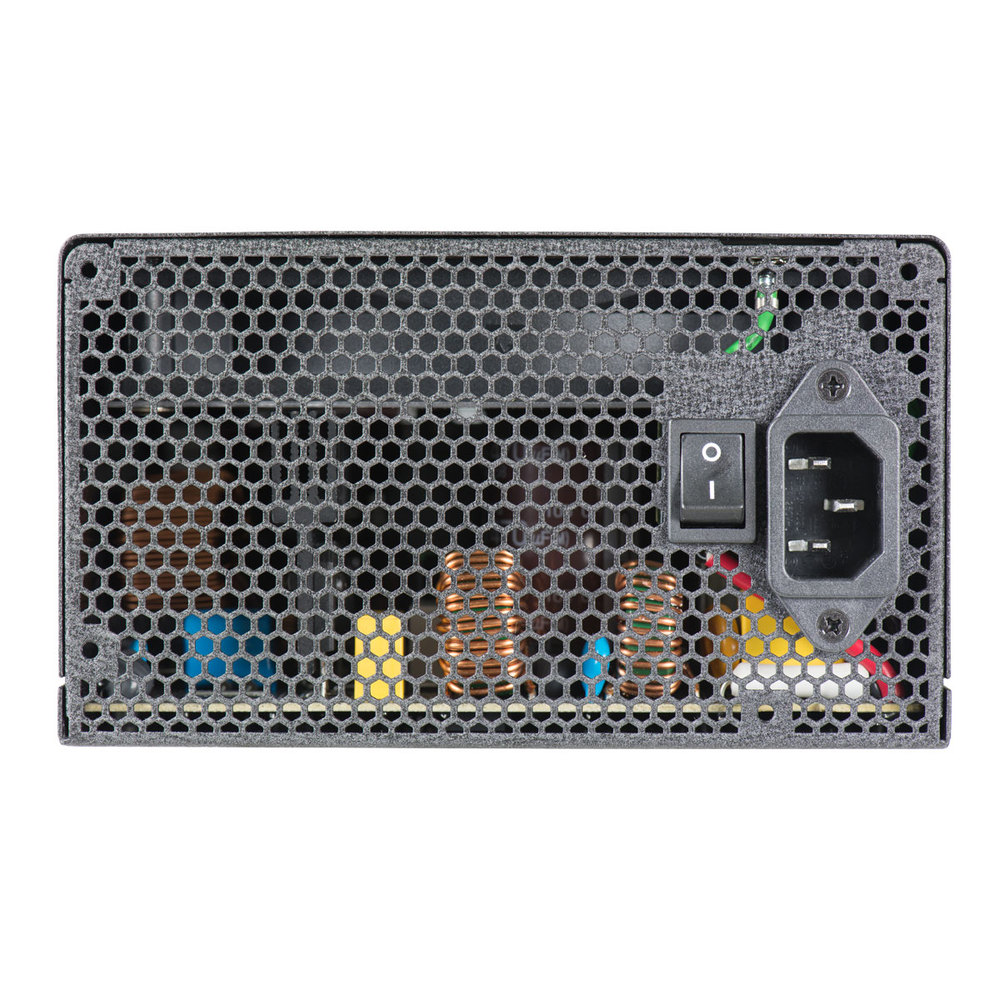

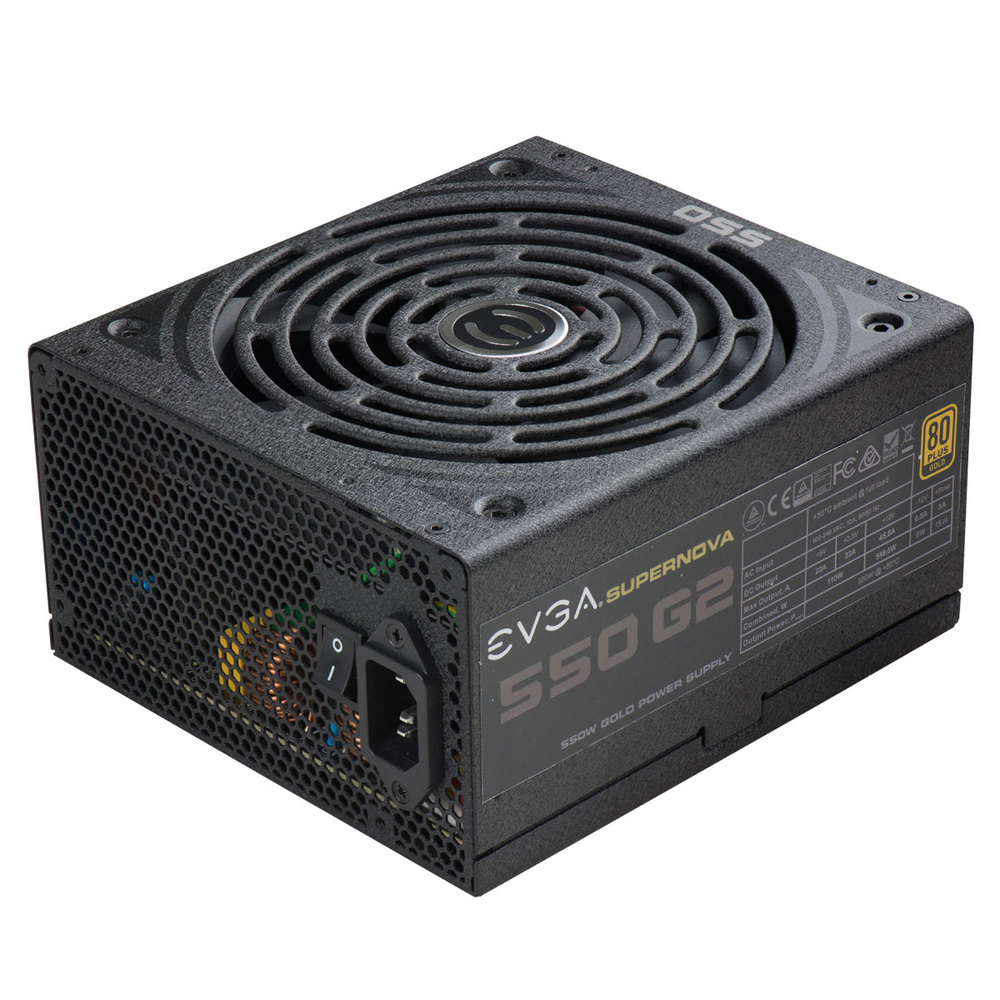

EVGA SuperNOVA 550W G2 Power Supply Main Picture


EVGA SuperNOVA 550W G2 Power Supply Picture 40845EVGA SuperNOVA 550W G2 Power Supply Picture 40846EVGA SuperNOVA 550W G2 Power Supply Picture 40847EVGA SuperNOVA 550W G2 Power Supply Picture 40848
The EVGA SuperNOVA 550W G2 power supply is a mid-range unit in terms of wattage, but with high-end 80 PLUS Gold rated efficiency and fully modular cabling. It is ideally suited to systems with a single CPU and video card (or onboard graphics). It supports more SATA power connections for drives than previous models we've carried in this size range and it features "ECO mode" which will run the fan at the lowest speed possible to keep the unit cool - fully stopping the fan at low power levels.
William George (Marketing Project Manager)
William George (Marketing Project Manager) Says:
I've really come to appreciate fully modular power supplies in the last couple of years, and am pleased that even affordable models in our line like this now have that feature. This PSU also has a fan that turns off entirely at low power draw - another feature inherited from higher end models - so it is very quiet and offers enough wattage for most single-GPU systems.

Model: EVGA 220-G2-0550-Y1

Specifications

Maximum Power 550 W
Standard Compliance TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
Peak Efficiency 90 %
Efficiency Certification 80 PLUS Gold
Cooling System 140mm Fan
Power Distribution
+3.3V rail 22 amps
+5V rail 22 amps
+12V1 rail 45.8 amps
Connectors
Molex 3
SATA 9
Floppy 1
PCIe 6-Pin 1
PCIe 8-Pin 2
CPU Power 8/4 pin 1
External Connector Type C13
Dimensions
Height 85 mm (3.3 in)
Width 150 mm (5.9 in)
Depth 165 mm (6.5 in)
Net Weight 2.27 kg (5.0 lbs)
Input
Voltage 100-240 Vac
Frequency 50/60 Hz

Features

  • ECO mode keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.

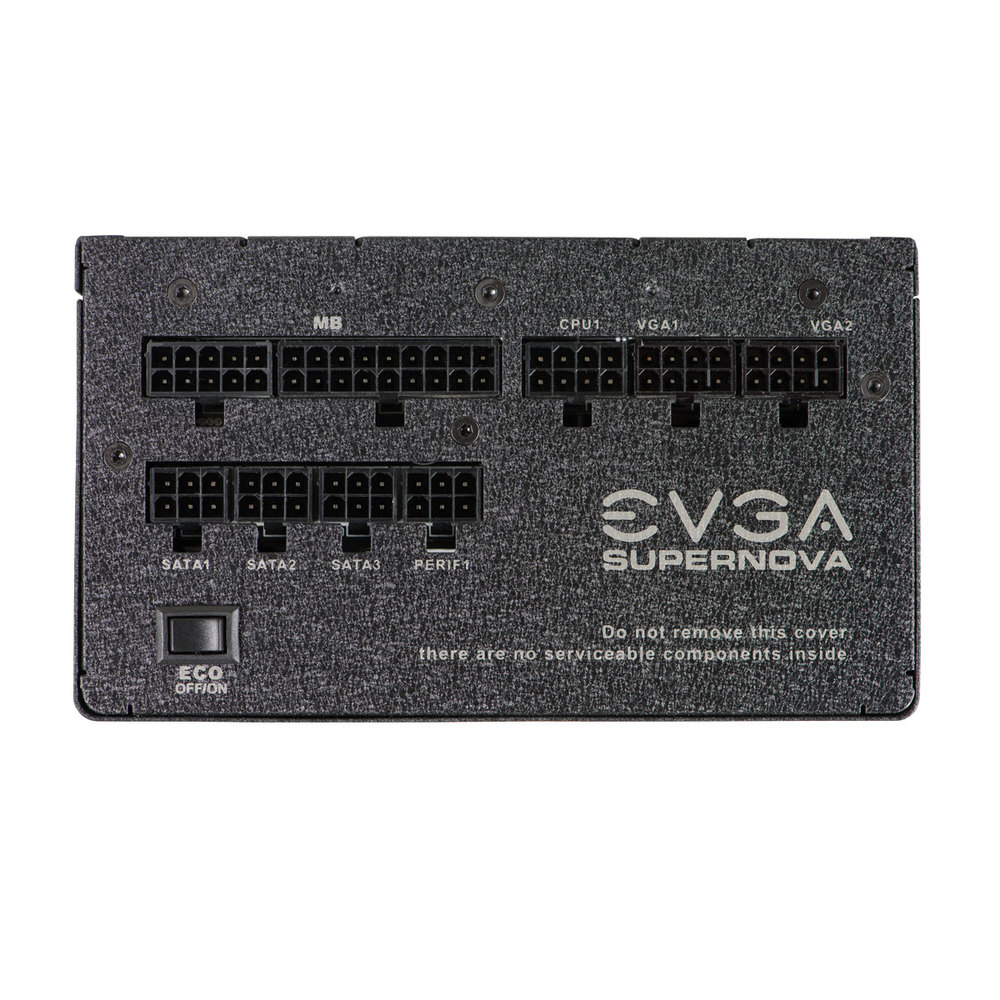

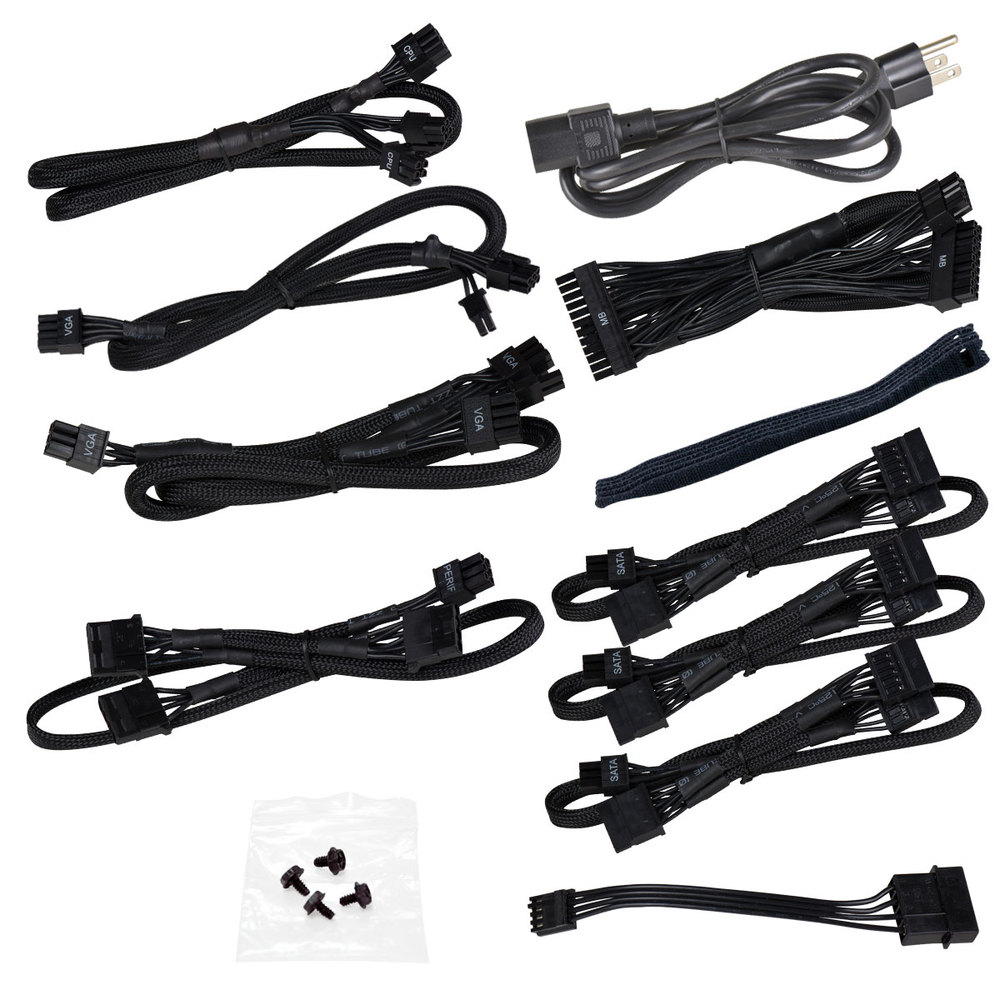

  • Fully modular cables
