Seasonic PRIME Gold 650W Power Supply

Power Supply

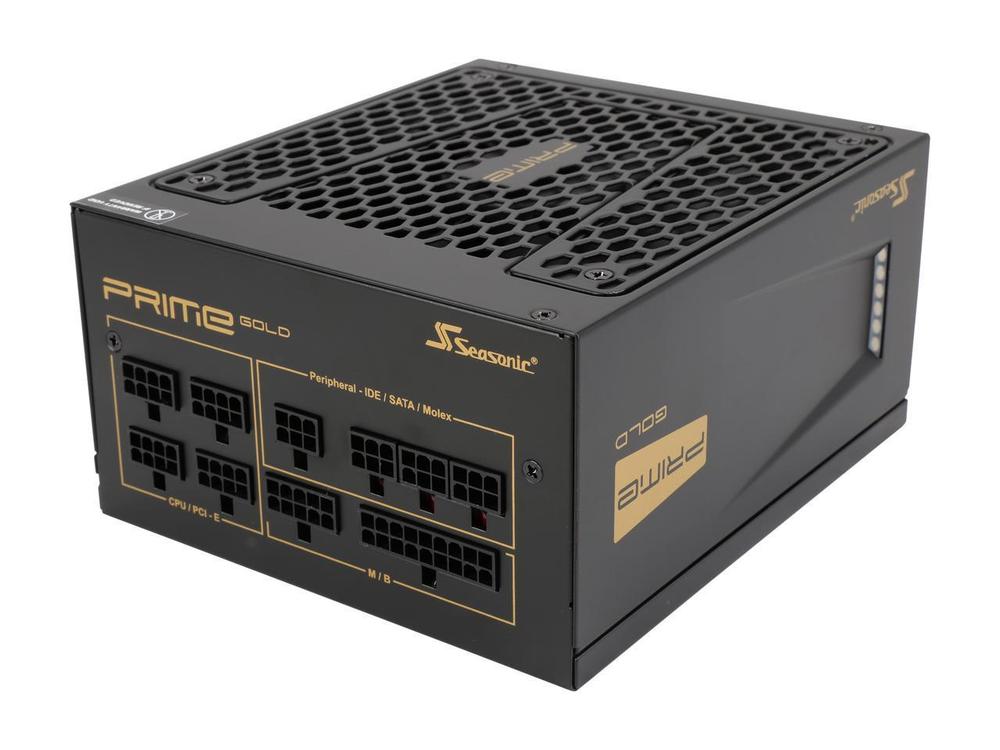

Seasonic PRIME Gold 650W Power Supply Picture 45234Seasonic PRIME Gold 650W Power Supply Picture 45235Seasonic PRIME Gold 650W Power Supply Picture 45236
The PRIME Gold 650W power supply from Seasonic is a fully modular power supply with the 80 PLUS Gold rating. For cooling it has a quiet 135mm fan, which can turn off entirely at lower power loads - which Seasonic calls "Hybrid Mode" - to further reduce noise. Together with a high efficiency rating, good wattage capacity, and 12 year manufacturer warranty this unit is a reliable option for powering PC workstations.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This is a great PSU for pretty much any CPU and single GPU (video card) configuration
Model: SeaSonic SSR-650GD

Specifications:
spacer
Maximum Power  650 W
Standard Compliance  ATX12V / EPS12V
Peak Efficiency  >87 %
Efficiency Certification  80 PLUS Gold
Cooling System  Quiet 120mm Fan
Power Distribution
+3.3V rail  20 amps
+5V rail  20 amps
+12V1 rail  54 amps
Combined +12V Maximum  54 amps
Connectors
Molex  3
SATA  6
Floppy  1
PCI Express 8-pin  4
CPU Power 8/4 pin  2
External Connector Type  C13
Dimensions
Height  150 mm (5.9 in)
Width  170 mm (6.7 in)
Depth  86 mm (3.4 in)
Net Weight  3.63 kg (8.0 lbs)
Input
Voltage  100-240 Vac
Frequency  50/60 Hz


Configure a custom computer with the Seasonic PRIME Gold 650W Power Supply.
