Seasonic X-650 650W Power Supply

Power Supply

Seasonic X-650 650W Power Supply Picture 24596Seasonic X-650 650W Power Supply Picture 24597Seasonic X-650 650W Power Supply Picture 24598Seasonic X-650 650W Power Supply Picture 24599Seasonic X-650 650W Power Supply Picture 24600
The X-Series 650W power supply from Seasonic is unique in being a high powered modular power supply with the 80 PLUS Gold rating. It also has a unique cooling setup, in that the 120mm fan turns off entirely at lower power loads. Between that and its overall efficiency rating in excess of 87%, this unit provides both a high level of power and a reliable, quiet configuration.
Jon Bach (President)
Jon Bach (President) Says:
This power supply is extremely efficient, and will completely turn off its fan under low load (such as when your PC is idle). It is a great pick for a silent PC.
William George (Product Development)
William George (Product Development) Says:
I have a power supply from this same line in my small form factor desktop system - and the fan does indeed turn off at low power draw / heat levels (making it great for a quiet system). When it comes on I can just barely hear it, and my quiet Asus video card usually makes a little more noise - just enough to mask it - since a heavy load on the power supply means I am probably gaming.

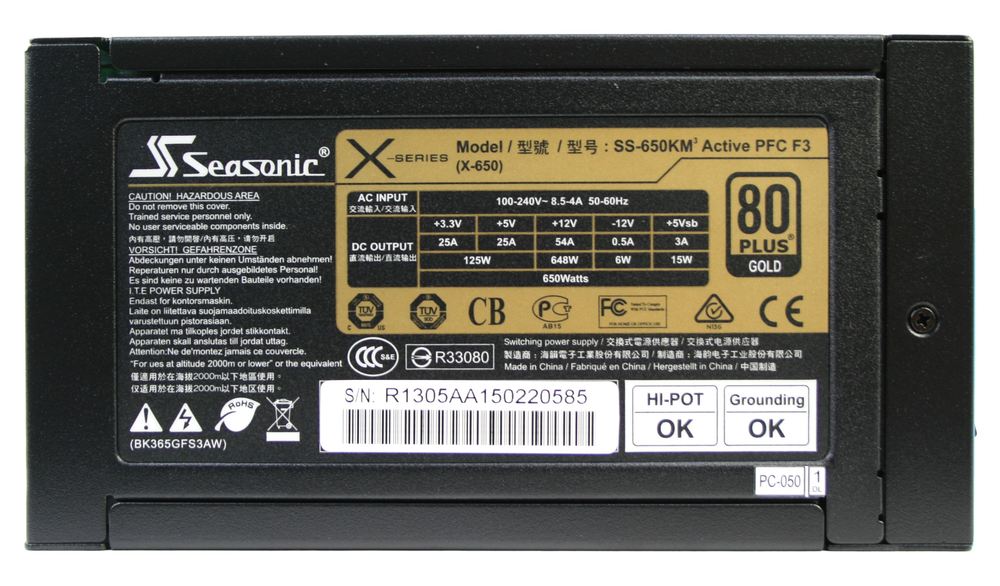

Model: SeaSonic SS-650KM Active PFC F3

Maximum Power  650 W
Peak Efficiency  >87 %
Efficiency Certification  80 PLUS Gold
Cooling System  Quiet 120mm Fan
Power Distribution
+3.3V rail  25 amps
+5V rail  25 amps
+12V1 rail  54 amps
Combined +12V Maximum  54 amps
Molex  5
SATA  10
Floppy  1
PCI Express 8-pin  4
CPU Power 8 pin  1
CPU Power 8/4 pin  1
External Connector Type  C13
Height  150 mm (5.9 in)
Width  160 mm (6.3 in)
Depth  86 mm (3.4 in)
Net Weight  3.63 kg (8.0 lbs)
Voltage  100-240 Vac
Frequency  50/60 Hz


7 Years

Configure a custom computer with the Seasonic X-650 650W Power Supply.
