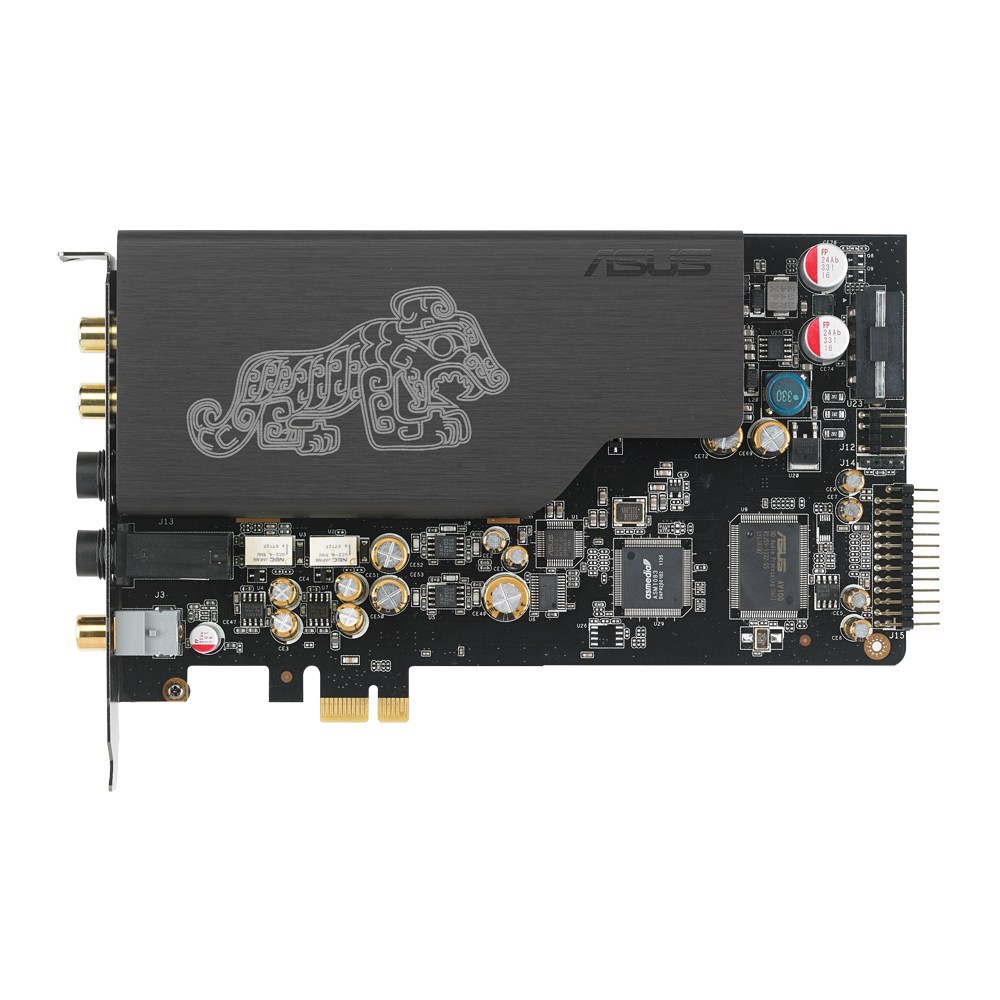

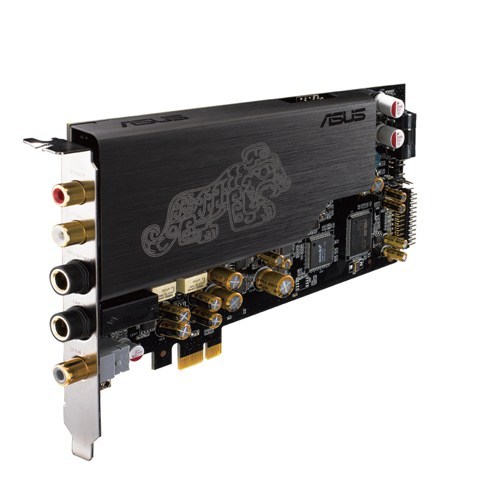

ASUS Xonar Essence STX II PCI-E

Sound Card

ASUS Xonar Essence STX II PCI-E Picture 38550ASUS Xonar Essence STX II PCI-E Picture 38549ASUS Xonar Essence STX II PCI-E Picture 38552

Note: Great for headphones, or analog 2-channel (stereo) speakers. Not designed for surround-sound output.

Model: Asus Xonar Essence STX II

Specifications:
spacer
Specifications
Slot Type  PCI-Express
Channel Output  2.0 Channels
Analog Input  Mic
Digital Output  Coax SPDIF
Digital Input  None
Front Audio Signal to Noise Ratio  124 dB
Rear Audio Signal to Noise Ratio  120 dB
Input Signal to Noise Ratio  118 dB
Front-panel Connection  Yes

Features:
  • Industry-leading 124dB SNR (signal-to-noise ratio) audio quality inherited from the revolutionary and widely-acclaimed Xonar Essence ST/STX
  • Ultra-low jitter with premium TCXO clock source
  • Clean and consistent power supply thanks to high-fidelity low-dropout (LDO) regulators and WIMA capacitors for uncompromising sound
  • Top-notch headphone amplifier supports up to 600ohm-headphone impedance with additional gain for in-ear monitors (IEMs)
  • Exclusive op-amp swap kit includes three op-amps and tool for easy tone tuning Celebrated MUSES op-amps deliver true-to-life musicality

Audio Processor
ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)

Analog Output
1 x 6.3 mm jack (1/4") Headphone out
2 x RCA (Un-Balanced)
Analog Input
1 x 6.3 mm jack (1/4") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Coaxial)
1 x Front-Panel Header

Includes Op-amp swap kit
1 x Needle-nose pliers
2 x LME49720
1 x MUSES8820
*see page 11 of the manual for more instructions




with the ASUS Xonar Essence STX II PCI-E.
