Model: Creative Labs 70SB046600002
RCA Jacks: - Two RCA jacks for coaxial SPDIF input and output - Two RCA jacks for Auxiliary input
Optical connectors: 2 for optical SPDIF input and output
Mini MIDI: 2 female connectors for MIDI input and output
Headphone output and volume control: Via 6.35 mm (1/4-inch) stereo jack
Shared line-level analog Line/Microphone input: Via 6.35 mm (1/4-inch) stereo jack
Processor: Genuine Intel Pentium III 1 GHz, AMD 1 GHz processor or faster
Memory: 256MB RAM
Storage: 600MB of free hard disk space
Operating System: Microsoft Windows XP Service Pack 2 (SP2)
Connectivity: Available PCI 2.1 slot for the audio card
Other: Intel, AMD or 100% compatible motherboard chipset CD-ROM/CD-RW or CD/DVD-ROM required for software installation Graphics card with DirectX 9 and OpenGL compliant 3D graphics accelerator

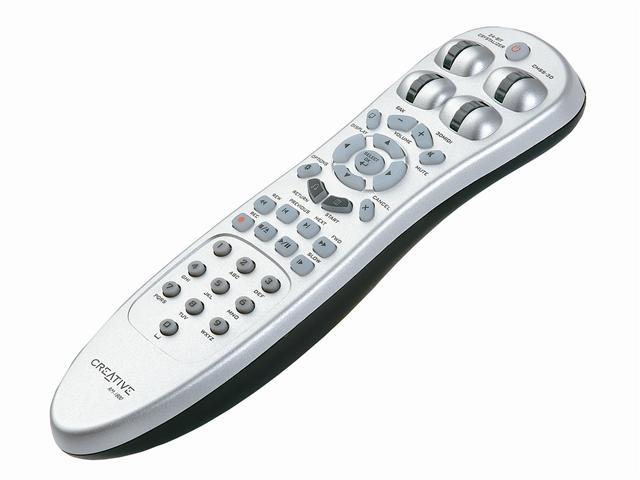

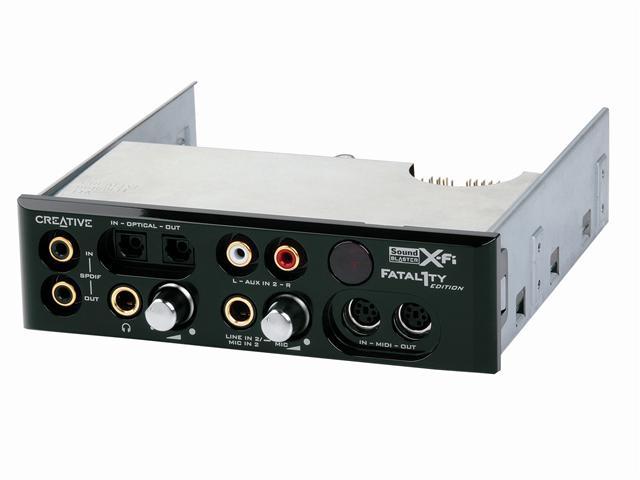

Items: Sound Blaster X-Fi Fatal1ty FPS PCI CardX-Fi Fatal1ty FPS I/O DriveQuick Start LeafletRemote Control2x mini MIDI to standard MIDI adapter cables3.50 mm (1/8-inch) to 6.35 mm (1/4-inch) plug adapter2x Batteries (AA)Screws for assembly
Installation and Applications CD containing: Drivers for Windows XPCreative Software SuiteDoom 3 Sound Blaster EAX patchUser#39;s Guide
Programs: Entertainment CenterCreative MediaSource 3
24-bit Analog-to-Digital conversion of analog inputs: 96kHz sample rate
24-bit Digital-to-Analog conversion of digital sources: 96kHz to analog 7.1 speaker output
24-bit Digital-to-Analog conversion of stereo digital sources: 192kHz to stereo output
16-bit to 24-bit recording sampling rates: 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz
ASIO 2.0 support: 16-bit/44.1kHz, 16-bit/48kHz, 24-bit/44.1kHz 24-bit/48kHz and 24-bit/96kHz with direct monitoring.
Enhanced SoundFont support: up to 24-bit resolution
X-RAM: 64MB
Signal-to-Noise Ratio: (20kHz Low-pass filter, A-Weighted)
Stereo Output: 109dB
Front and Rear Channels: 109dB
Center, Subwoofer and Side Channels: 109dB
Total Harmonic Distortion + Noise: 1kHz (20kHz Low-pass filter) = 0.004%
Frequency Response: (-3dB, 24-bit/96kHz input ) = <10Hz to 46kHz
Frequency Response(Stereo Only): (-3dB, 24-bit/192kHz input) = <10Hz to 88kHz
FlexiJack: (Performing a 3-in-1 function, Line In / Microphone / Digital Out) via 3.50 mm minijack
Line level out: (Front / Rear / Side / Center / Subwoofer) via 3.50 mm minijacks
AUX_IN: line-level analog input via 4-pin Molex connector on card
One AD_Link: (26 pin) connector for linking to the X-Fi I/O Console (upgrade option)
