Model: Creative Labs 70SB046000001
Technical Specifications: 24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog 7.1 speaker output24-bit Digital-to-Analog conversion of stereo digital sources at 192kHz to stereo output16-bit to 24-bit recording sampling rates
Audio Performance (Rated Output @ 2Vrms): Signal-to-Noise Ratio (20kHz Low-pass filter, A-Weighted)Stereo Output

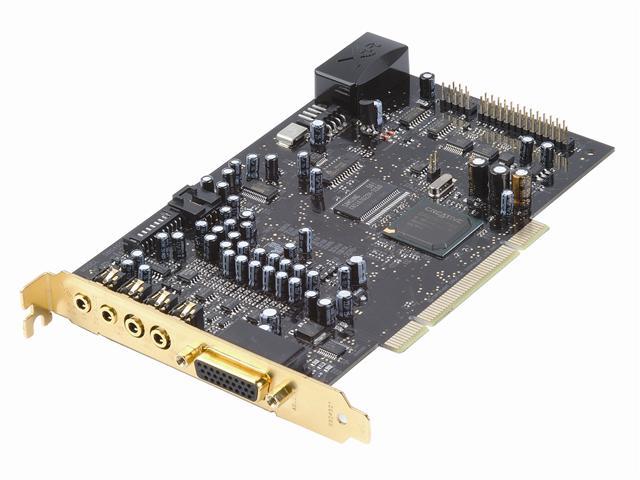

On-Board Connectivity: FlexiJack (Performing a 3-in-1 function, Digital In / Line In / Microphone) via 3.50mm mini jackLine level out (Front / Rear / Center / Subwoofer / Rear Center) via 3.50mm mini jacksAUX_IN line-level analog input via 4-pin Molex connector on cardOne AD_Link (26 pin) connector for linking to the X-Fi I/O Console (upgrade option)

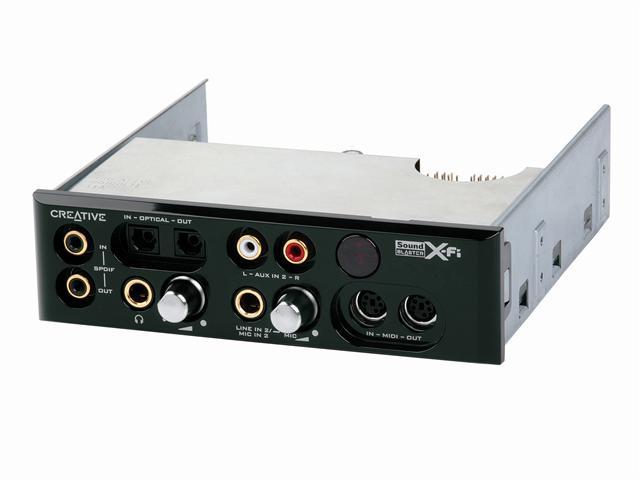

I/O Drive Connectivity: Two RCA jacks for coaxial SPDIF input and outputTwo RCA jacks for Auxiliary inputTwo optical connectors for optical SPDIF input and outputTwo mini MIDI female connectors for MIDI input and outputHeadphone output and volume control via 6.35 mm (1/4-inch) stereo jackShared line-level analog Line/Microphone input via 6.35 mm (1/4-inch) stereo jack
Processor: Genuine Intel Pentium III 1 GHz, AMD 1 GHz processor or faster
Operating System: Microsoft Windows XP Service Pack 2 (SP2)
Memory: 256MB RAM
Disk Storage: 600MB of free hard disk space
Display: Graphics card with DirectX 9 and OpenGL compliant 3D graphics accelerator
Other Requirements: - Intel, AMD or 100% compatible motherboard chipset - Available PCI 2.1 slot for the audio card - CD-ROM/CD-RW or CD/DVD-ROM required for software installation
Items: - Sound Blaster X-Fi PCI Card - X-Fi I/O Drive - Remote Control - 2x mini MIDI to standard MIDI adapter cables - 3.50 mm (1/8-inch) to 6.35 mm (1/4-inch) plug adapter - 2x Batteries (AA) - Quick Start Leaflet - Screws for assembly - AD_Link Cable - Power Splitter Cable

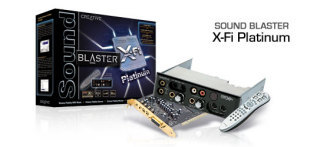

Enhance Your Music, Games and Movies With Xtreme Fidelity!

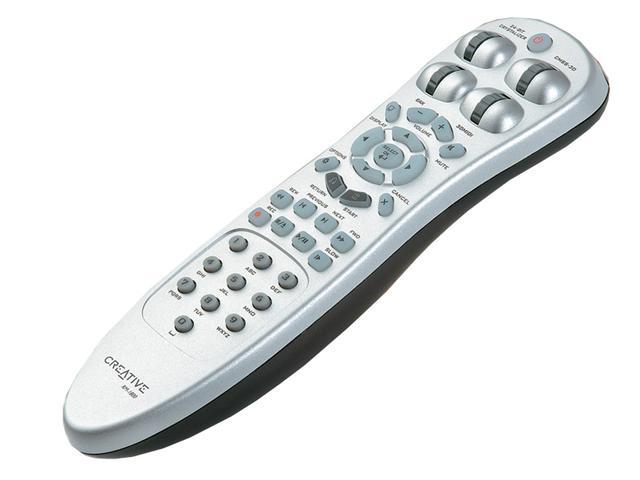

The ideal versatile sound card to suit all digital entertainment experiences, the Sound Blaster X-Fi Platinum sound card includes an internal drive bay with additional, convenient front-facing input/output connectivity for headphone listening, PC gaming and audio creation. Delivering 109dB SNR audio quality, the Sound Blaster X-Fi Platinum includes the X-Fi IR remote, for easy access to the Entertainment Center software console, which enables access to music, movies and picture slide shows through a slick, streamlined interface.
The Sound Blaster X-Fi Platinum also includes all of the standard features, application software, power and performance capabilities of the Sound Blaster X-Fi XtremeMusic.
Harness the full power of Sound Blaster X-Fi Platinum by selecting one of its 3 usage modes:
Entertainment Mode
For Xtreme Fidelity Music and Movies
X-Fi 24-bit Crystalizer enhances MP3s and movies to sound better than they do on their original CD or DVD.
Utilizing the Creative X-Fi Xtreme Fidelity audio processor your music and movie audio is sent through a two-step quality enhancement process. First the processor converts the audio into 24-bit/96kHz quality using its virtually transparent SRC (Sample Rate Converter) engine.
Then it remasters and selectively enhances the audio by analyzing and identifying which parts of the audio stream have been restricted/damaged during the compression stages to 16-bit and then to MP3. The result of these enhancements is music that sounds cleaner, smoother and has more sparkle, and movies that sound more realistic than ever before!
X-Fi CMSS-3D allows you to upgrade your MP3 music and movies into surround sound with headphones or multichannel speakers.
X-Fi CMSS-3D allows you to upgrade your MP3 music and movies into surround sound with headphones or multichannel speakers.
Enjoy your stereo MP3s and movies in surround sound with X-Fi CMSS-3D technology. Instead of performing a basic upmixing of stereo content, the Creative X-Fi Xtreme Fidelity audio processor intelligently remixes the audio into surround sound to match the speaker system you have (including headphones). It also uses advanced techniques to extract specific audio elements, like voice to the center channel and ambience to the surrounding channels, so your music and movies sound more alive than ever before!
SuperRip allows you to rip your CDs into Xtreme Fidelity quality.
The X-Fi 24-bit Crystalizer and X-Fi CMSS-3D features allow you to "SuperRip" CDs into Xtreme Fidelity quality so you can now enjoy permanently enhanced music instead of low-quality MP3 files!
Enjoy the latest cinematic technologies for the ultimate PC movie experience!
Experience incredible audio with THX certified quality and unbeatable movie sound with DTS-ES and Dolby Digital EX decoding!
Audio Creation Mode
For Pristine Audio Recording Quality
Sound Blaster X-Fi Platinum offers the highest quality, most feature-rich recording available in a consumer solution
Utilizing the Creative X-Fi Xtreme Fidelity audio processor, you'll get the most advanced features and effects of any audio processor for music and audio creation delivering pristine audio playback quality.
Advanced Audio Conversion Engine
The Creative X-Fi Xtreme Fidelity audio processor features an SRC engine that is 300 times more precise than the previous Sound Blaster solutions and can convert any audio to any resolution at near transparency with 136dB THD+N.
Lowest Latency ASIO Recording
Experience the most precise audio recording capabilities in any class with ASIO recording that has latency as low as one millisecond with zero CPU load.
Advanced Features and Effects for Music and Audio Creation
Sound Blaster X-Fi Platinum supports up to eight different 24-bit hardware effects, unprecedented hardware synthesis capabilities, 24-bit SoundFont sampling, and 3DMIDI recording for the first
Gaming Mode
For Ultimate Gaming Performance and Maximum Realism
Sound Blaster X-Fi Platinum delivers the fastest gaming performance ever!
A completely re-engineered game audio processing engine utilizing Creative X-Fi Xtreme Fidelity audio processor allows Sound Blaster X-Fi Platinum to deliver the fastest gaming performance ever seen, providing more than a 15% performance boost over motherboard audio solutions while simultaneously delivering full audio effects!
X-Fi CMSS-3D delivers the most realistic surround sound experience with headphones
Know exactly where your enemies are whether you're using headphones or speakers. You won't believe how good X-Fi CMSS-3D positional gaming audio is; in fact, it's so good you'll forget you're wearing headphones!
EAX ADVANCED HD delivers the most realistic gaming audio ever!
Features like 128 voice support, EAX MacroFX, EAX PurePath and Environment FlexiFX set a new standard for EAX and realism available in gaming audio.
X-Fi 24-bit Crystalizer automatically upgrades existing games to Xtreme Fidelity
Experience gaming audio that sounds more dynamic and realistic than you could ever imagi
