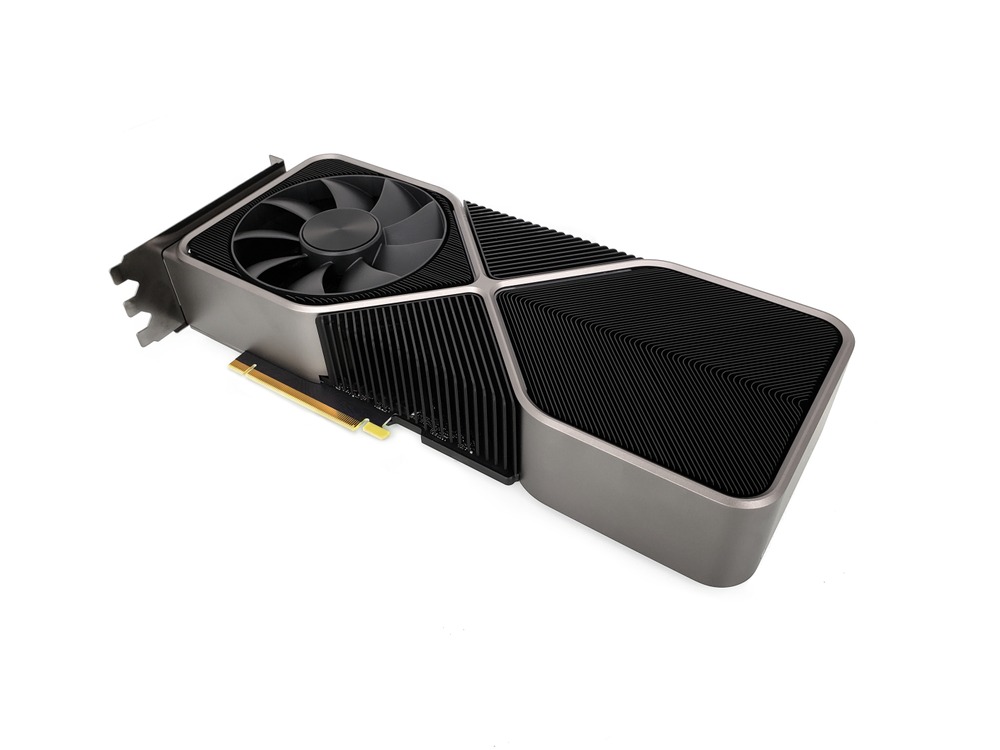

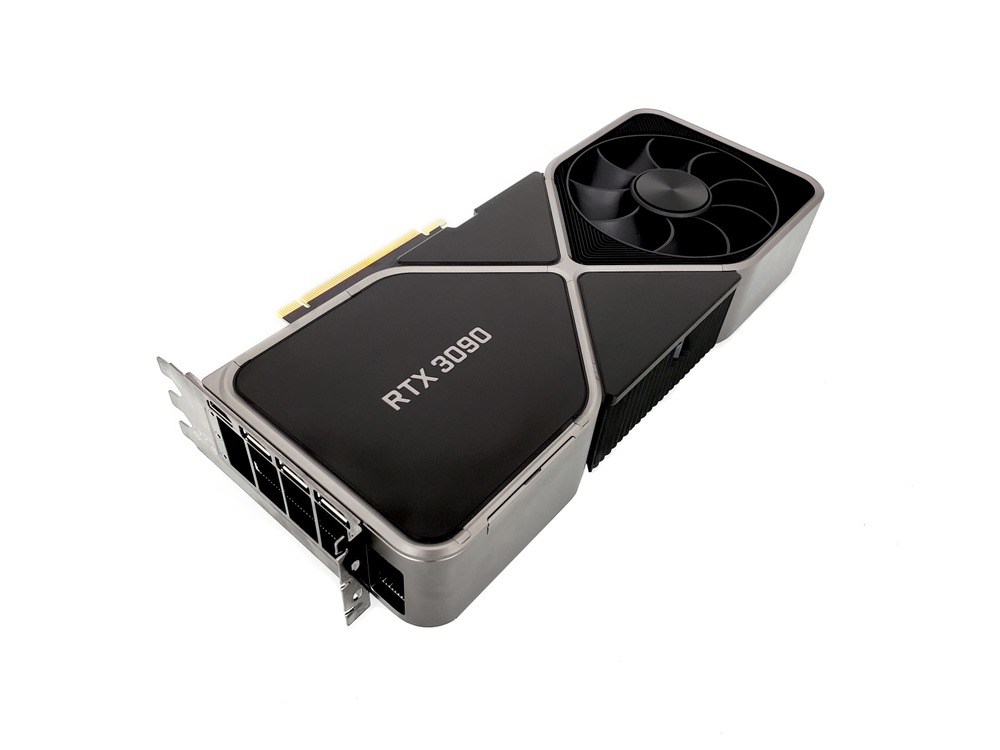

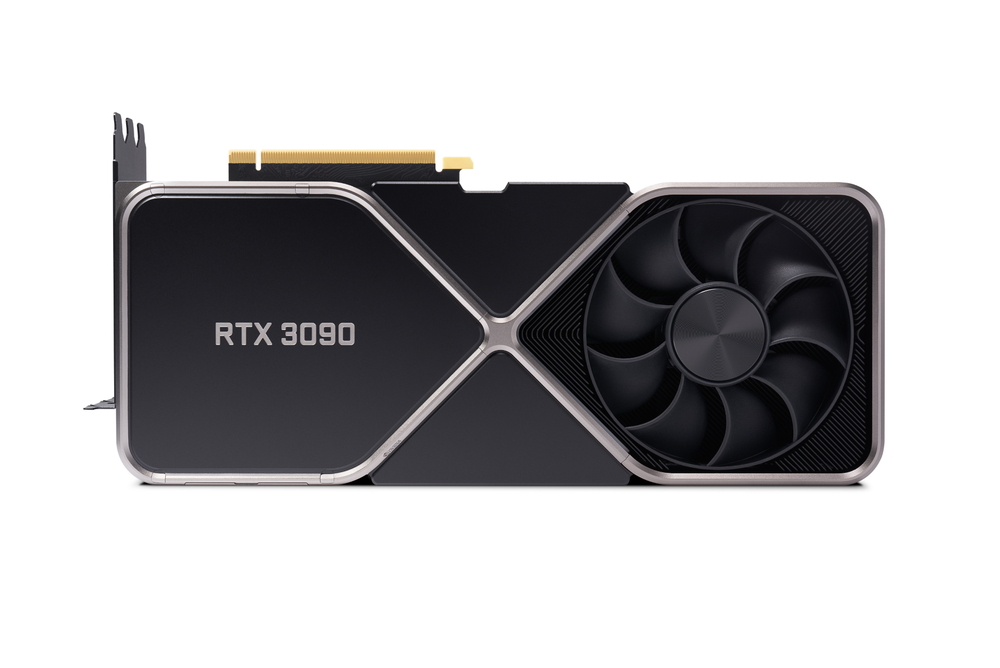

NVIDIA GeForce RTX 3090 24GB Open Air

Video Card

NVIDIA GeForce RTX 3090 24GB Open Air Picture 64010NVIDIA GeForce RTX 3090 24GB Open Air Picture 64011NVIDIA GeForce RTX 3090 24GB Open Air Picture 64012NVIDIA GeForce RTX 3090 24GB Open Air Picture 63986
NVIDIA's GeForce RTX 3090 is one of the first consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies greatly depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. Compared to the previous 20 Series models, the RTX 3090 can be more than twice as fast in some applications - but not every program or game will see that much gain. In contrast, compared to the less expensive RTX 3080, most users would gain a 10-20% boost - along with 140% more VRAM, which can make a much bigger difference in many real-world situations.

This variant uses a multi-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. In those cases, a video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: NVIDIA 3090

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3090
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology NVLink (GeForce RTX 3000)
Lite Hash Rate No
GPU Specifications
Core Speed 1,400 MHz
Boost Speed 1,700 Mhz
Stream Processors 10496
Memory Specifications
Video Memory 24GB
Memory Type GDDR6X
Memory Speed 19,500 MHz
Memory Bus Width 384-bit
Bandwidth 936 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 3

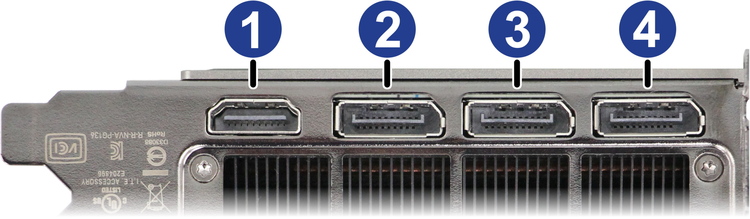

Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Uses Power Adapter Yes
Dimensions
Length 313 mm (12.3 in)
Height 138 mm (5.4 in)
Width 62 mm (2.4 in)
Net Weight 2.2 kg (4.9 lbs)
