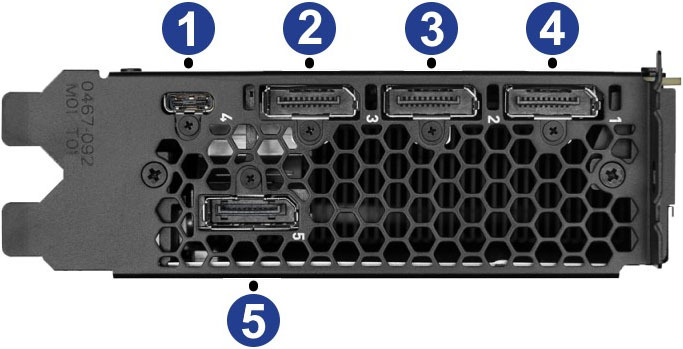

NVIDIA Quadro RTX 8000 PCI-E 48GB Ports
VirtualLink: Industry standard for VR headsets, video, audio and data over Type C connector (7680x4320)
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
The NVIDIA Quadro RTX 8000 is the highest-end Turing-based Quadro card, offering the best single card performance available in this generation. In fact it has the same GPU as the RTX 6000, but double the amount of onboard memory: a tremendous 48GB! Because of the Turing architecture it also gains specialized ray tracing and machine learning inference hardware as well: RT cores and Tensor cores, respectively. As with most Quadros, the single-fan cooler on this card is ideally suited for use in multi-GPU systems.
In addition to extreme performance for professional 3D applications and a massive amount of VRAM, the Quadro RTX 8000 also supports up to four monitors at the same time. It sports four DisplayPort connections, along with VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power for single-cable connectivity to next-generation VR headsets. Using that counts toward the limit of four simultaneous outputs.
In addition to extreme performance for professional 3D applications and a massive amount of VRAM, the Quadro RTX 8000 also supports up to four monitors at the same time. It sports four DisplayPort connections, along with VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power for single-cable connectivity to next-generation VR headsets. Using that counts toward the limit of four simultaneous outputs.
William George (Marketing Project Manager) Says:
This is effectively a RTX 6000 with double the memory (48 vs 24GB) and a mirror finish on the heatsink shroud. If you need a ton of VRAM, this is the most I've ever seen on a card from NVIDIA (as of early 2019, at least).
This is effectively a RTX 6000 with double the memory (48 vs 24GB) and a mirror finish on the heatsink shroud. If you need a ton of VRAM, this is the most I've ever seen on a card from NVIDIA (as of early 2019, at least).
Model: NVIDIA VCQRTX8000-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Quadro |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum DVI Resolution | 1920x1200 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | NVLink (Quadro RTX) |
GPU Specifications | |
| Stream Processors | 4608 |
| Tensor Cores | 576 |
Memory Specifications | |
| Video Memory | 48GB |
| Memory Type | GDDR6 ECC |
| Bandwidth | 624 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 16.3 Tflops |
| Half Precision Floating Point (Peak) | 32.6 Tflops |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 6.5 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
Outputs | |
| Port 1 | USB Type-C |
| Port 2 | DisplayPort |
| Port 3 | DisplayPort |
| Port 4 | DisplayPort |
| Port 5 | DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
| Plug 2 | 6-pin PCI-E |
Dimensions | |
| Length | 267 mm (10.5 in) |
| Height | 112 mm (4.4 in) |
| Width | 42 mm (1.7 in) |
