NVIDIA RTX A2000 12GB PCI-E

Video Card

NVIDIA RTX A2000 12GB PCI-E Picture 72951NVIDIA RTX A2000 12GB PCI-E Picture 72952NVIDIA RTX A2000 12GB PCI-E Picture 72953NVIDIA RTX A2000 12GB PCI-E Picture 72954
The NVIDIA RTX A2000 is a mid-range, Ampere-based professional graphics card. It represents a solid upgrade from the previous P2000 model, with the addition of specialized ray tracing and machine learning inference hardware alongside substantially more video memory. A wide range of standards are also supported by this card: DirectX 12, Vulkan, OpenGL 4.5, CUDA 11, and OpenCL (to name a few).

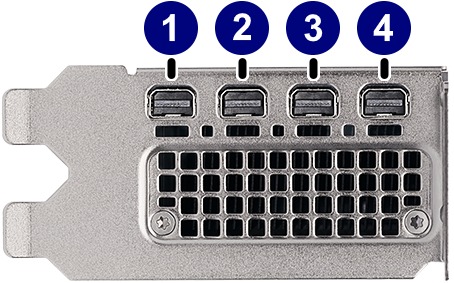

To compliment its focus on professional applications, the RTX A2000 supports up to four monitors at the same time. Four Mini DisplayPort 1.4a outputs are physically present on the back of the card, capable of up to 5K resolution each, and a wide range of adapters are available from third party vendors if you need to adapt to other video standards like DVI or HDMI. When using such adapters the maximum resolution will be reduced substantially if not using a DP to HDMI 2.0 Active adapter.
William George (Product Development)
William George (Product Development) Says:
This is a great mid-range GPU, which is ideal for applications which need a "professional grade" video card but don't require cutting-edge 3D performance. It also supports 10-bit color, so it is a great choice for Photoshop users with high-end, 10-bit capable monitors. If you don't fall into one of those categories, though, a GeForce card around the same price will give more raw 3D performance in most situations... or, of course, a more powerful NVIDIA RTX A-series card.

Model: PNY VCNRTXA200012GB-PB

Specifications

Chipset Manufacturer NVIDIA
Product Line Quadro
Series Ampere Workstation
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
GPU Specifications
Stream Processors 3328
Tensor Cores 104
Memory Specifications
Video Memory 12GB
Memory Type GDDR6
Memory Bus Width 192-bit
Bandwidth 288 GB/s
Performance
Single Precision Floating Point (Peak) 8 Tflops
Additional Information
Cooling System Blower Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2
Outputs
Port 1 Mini DisplayPort
Port 2 Mini DisplayPort
Port 3 Mini DisplayPort
Port 4 Mini DisplayPort
Dimensions
Length 167.6 mm (6.6 in)
Height 69 mm (2.7 in)
Width 40 mm (1.6 in)
Net Weight 0.446 kg (1.0 lbs)
