NVIDIA RTX A5000 24GB PCI-E

Video Card

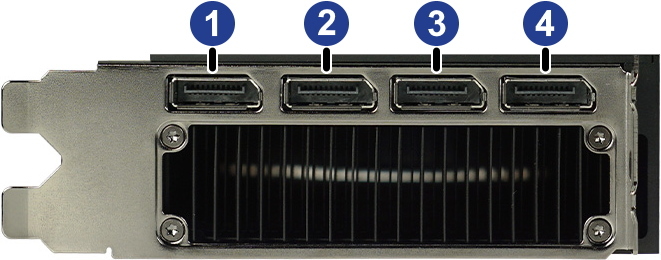

[ Rear Ports ]

NVIDIA RTX A5000 24GB PCI-E Picture 69494NVIDIA RTX A5000 24GB PCI-E Picture 69498NVIDIA RTX A5000 24GB PCI-E Picture 69499NVIDIA RTX A5000 24GB PCI-E Picture 69497
The RTX A5000 is an Ampere-based workstation graphics card from NVIDA. It offers raw performance similar to the more mainstream GeForce RTX 3080, but with a focus on support for professional applications and substantially more onboard VRAM (24GB). As with most workstation GPUs, like NVIDIA's former Quadro series, the single-fan cooler on the A5000 is well suited for use in multi-GPU systems - but noisier, especially under load, than most multi-fan consumer video cards.

In addition to great performance for professional 3D applications, the RTX A5000 also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) the same time. An adapter to DVI is also included, for those who need to use an older screen that lacks direct DisplayPort input; additional DVI and HDMI adapters can be purchased separately.
William George (Product Development)
William George (Product Development) Says:
These cards offer the right combination of lower power draw, blower-style cooling, and high VRAM that makes them nearly perfect for multi-GPU rendering workstations! We can fit up to four of these in many of our tower PCs if you want maximum rendering performance in a single system.
Model: PNY VCNRTXA5000-BLK

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  Quadro
Series  Ampere Workstation
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (RTX A)
GPU Specifications
Stream Processors  8192
Tensor Cores  256
Memory Specifications
Video Memory  24GB
Memory Type  GDDR6
Memory Bus Width  384-bit
Bandwidth  768 GB/s
Performance
Single Precision Floating Point (Peak)  27.8 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  DisplayPort 1.4a
Port 2  DisplayPort 1.4a
Port 3  DisplayPort 1.4a
Port 4  DisplayPort 1.4a
Power Connectors
Plug 1  8-pin ATX
Dimensions
Length  267 mm (10.5 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)
Net Weight  1.028 kg (2.3 lbs)


Configure a custom computer with the NVIDIA RTX A5000 24GB PCI-E.
