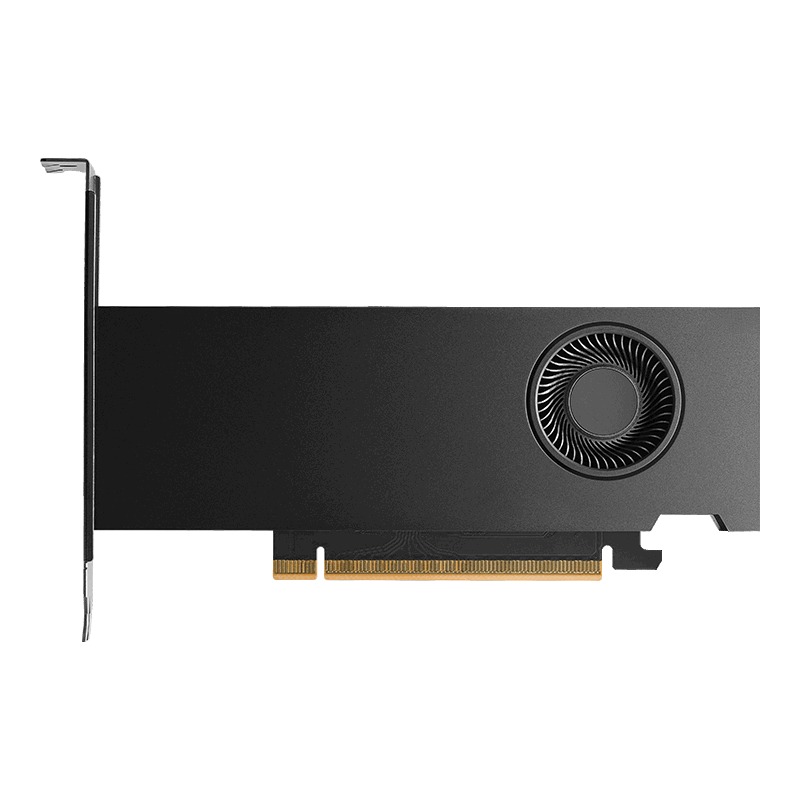

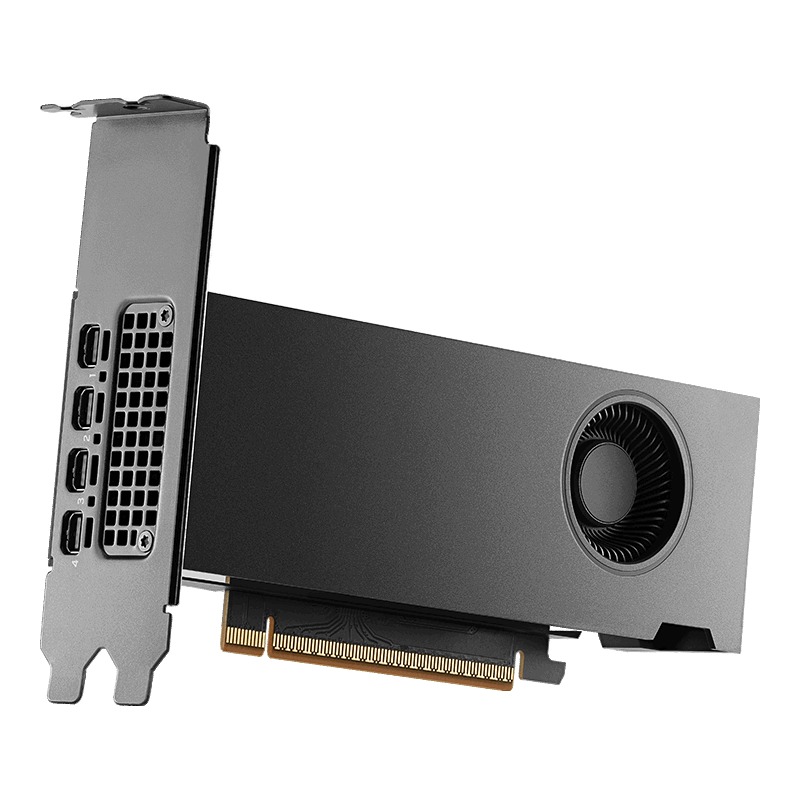

The NVIDIA RTX PRO 2000 Blackwell is a mid-range workstation graphics card packaged in a low-profile design. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series. Its performance and power draw are more modest than other RTX PRO models, but the lower price while still offering 16GB of onboard VRAM make it ideal for many engineering applications. Coupled with the half-height design, this allows it to function in compact and low-wattage systems where a more traditional video card either could not fit or would not be sufficiently powered.

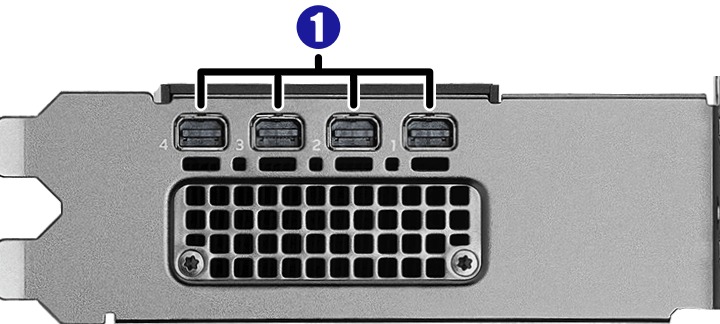

In terms of connectivity, the RTX PRO 2000 Blackwell has four Mini DisplayPort 2.1b outputs supporting up to four monitors at 4K resolution, or two at 8K. A wide range of adapters are available from third-party vendors if you need to adapt to other video standards like DVI or HDMI. Please note that the maximum resolution can be reduced substantially when using such adapters.
In terms of connectivity, the RTX PRO 2000 Blackwell has four Mini DisplayPort 2.1b outputs supporting up to four monitors at 4K resolution, or two at 8K. A wide range of adapters are available from third-party vendors if you need to adapt to other video standards like DVI or HDMI. Please note that the maximum resolution can be reduced substantially when using such adapters.
William George (Go-To-Market (GTM) Manager) Says:
This is a great mid-range GPU, ideal for applications that need a "professional grade" video card but don't require cutting-edge 3D performance. It also supports 10-bit color, so it is a great choice for Photoshop users with high-end, 10-bit capable monitors. If you don't fall into one of those categories, though, a GeForce card around the same price will give more raw 3D performance in most situations... or, of course, a more powerful NVIDIA RTX PRO card.
This is a great mid-range GPU, ideal for applications that need a "professional grade" video card but don't require cutting-edge 3D performance. It also supports 10-bit color, so it is a great choice for Photoshop users with high-end, 10-bit capable monitors. If you don't fall into one of those categories, though, a GeForce card around the same price will give more raw 3D performance in most situations... or, of course, a more powerful NVIDIA RTX PRO card.
Model: NVIDIA VCNRTXPRO2000B-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Pro Viz |
| Series | Blackwell |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 5.0 x8 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| TGP | 70 W |
GPU Specifications | |
| CUDA Cores | 4352 |
| AI Cores | 136 |
| RT Cores | 34 |
Memory Specifications | |
| Video Memory | 16GB |
| Memory Type | GDDR7 ECC |
| Memory Bus Width | 128-bit |
| Bandwidth | 288 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| Removable Backplate | No |
| Slot Width | 2 |
| Integrated GPU Brace Mounting | Yes |
Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
Dimensions | |
| Length | 168 mm (6.6 in) |
| Height | 69 mm (2.7 in) |
| Width | 42 mm (1.7 in) |
| Net Weight | 0.309 kg (0.7 lbs) |
