PNY GeForce RTX 3080 XLR8 REVEL 10GB Open Air

Video Card

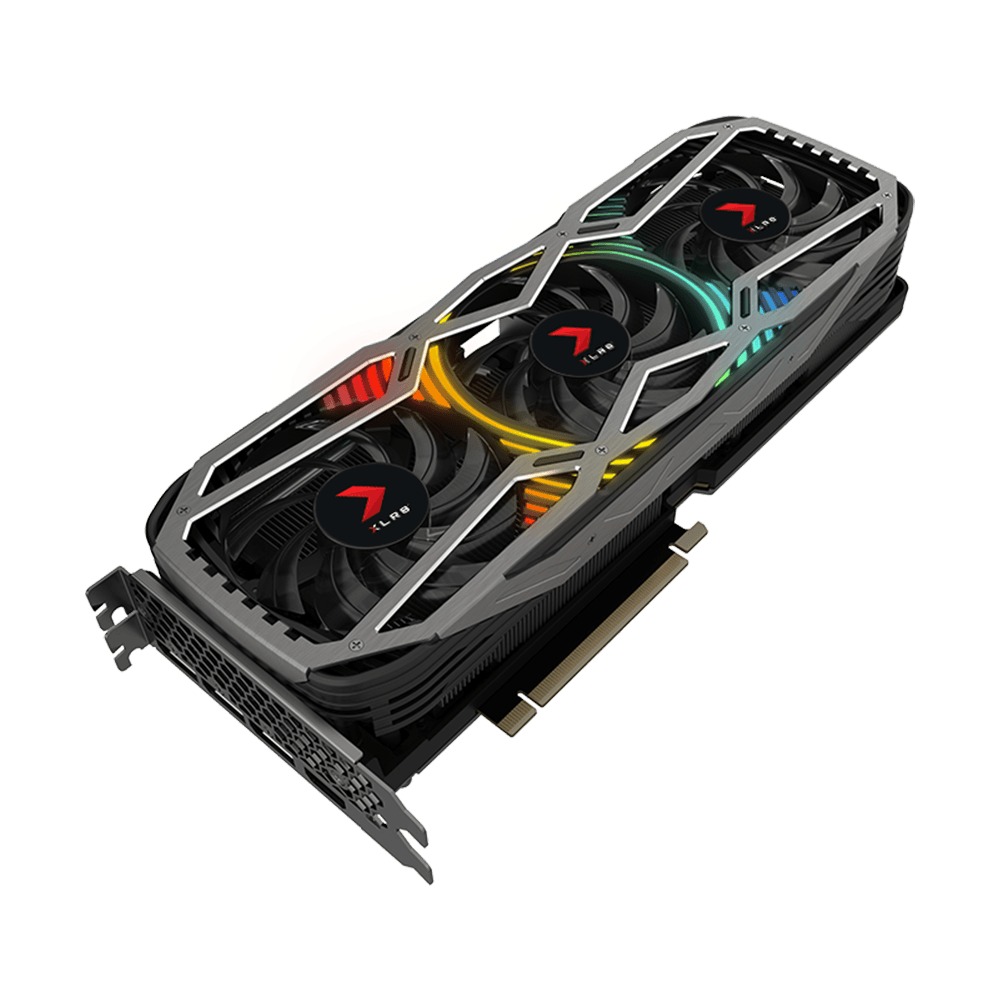

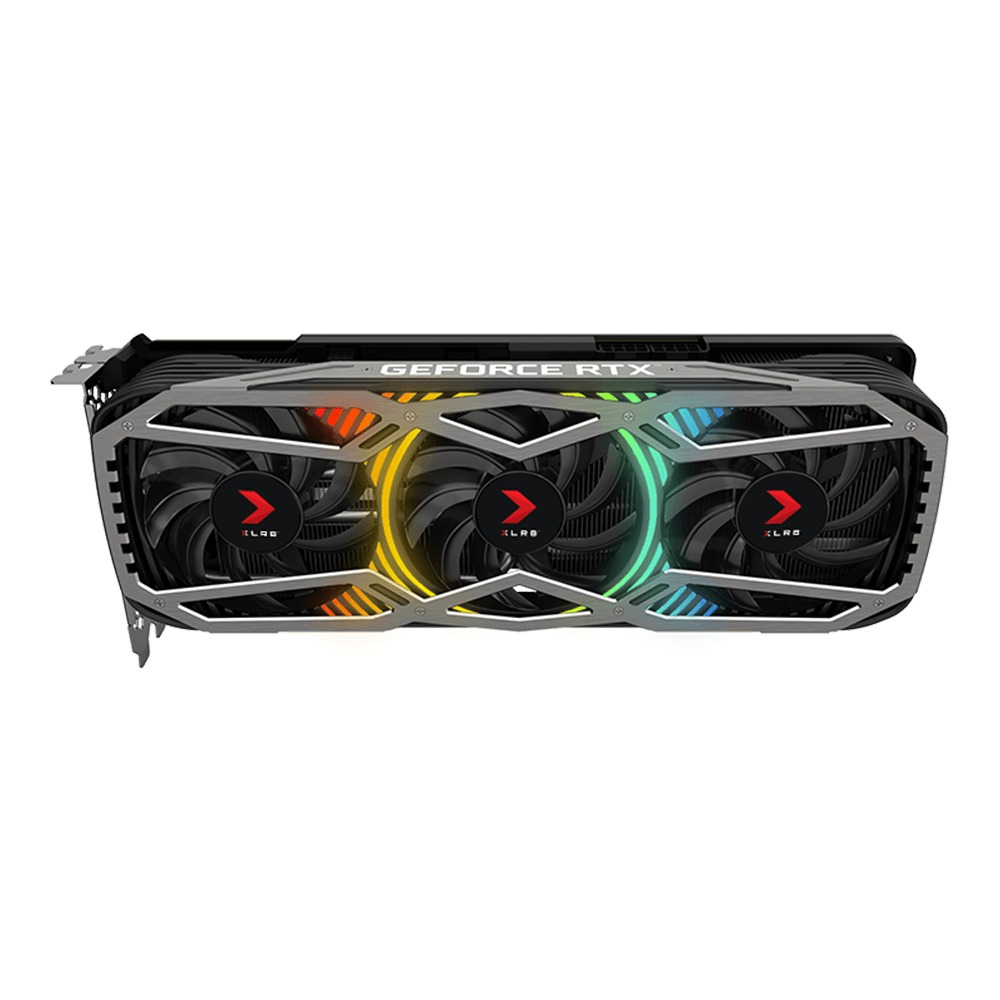

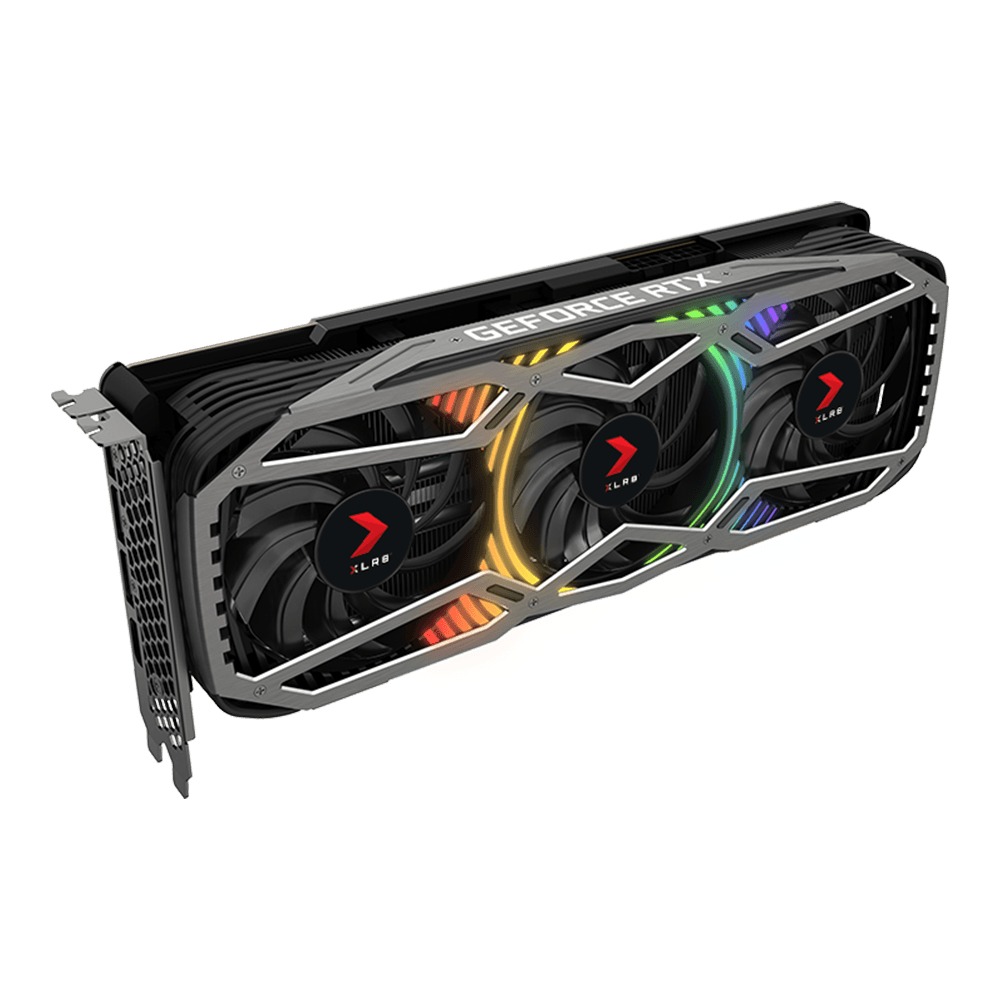

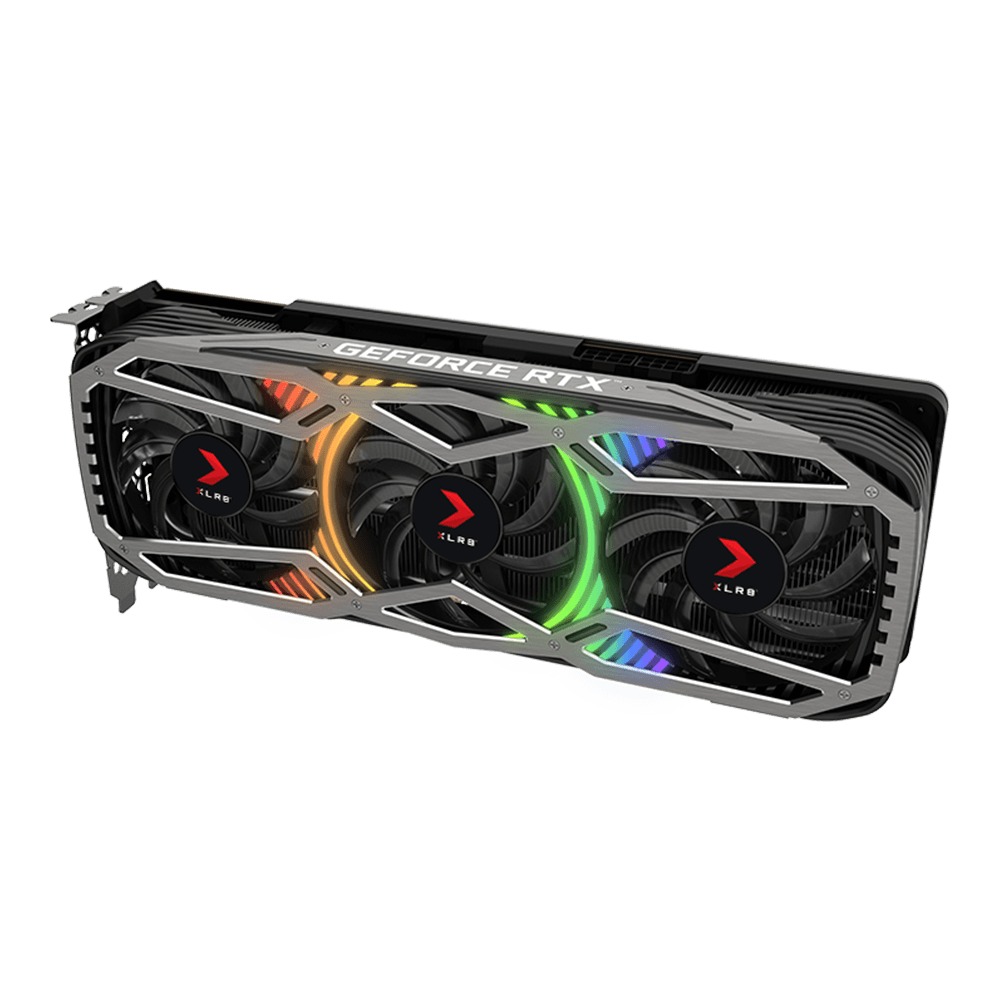

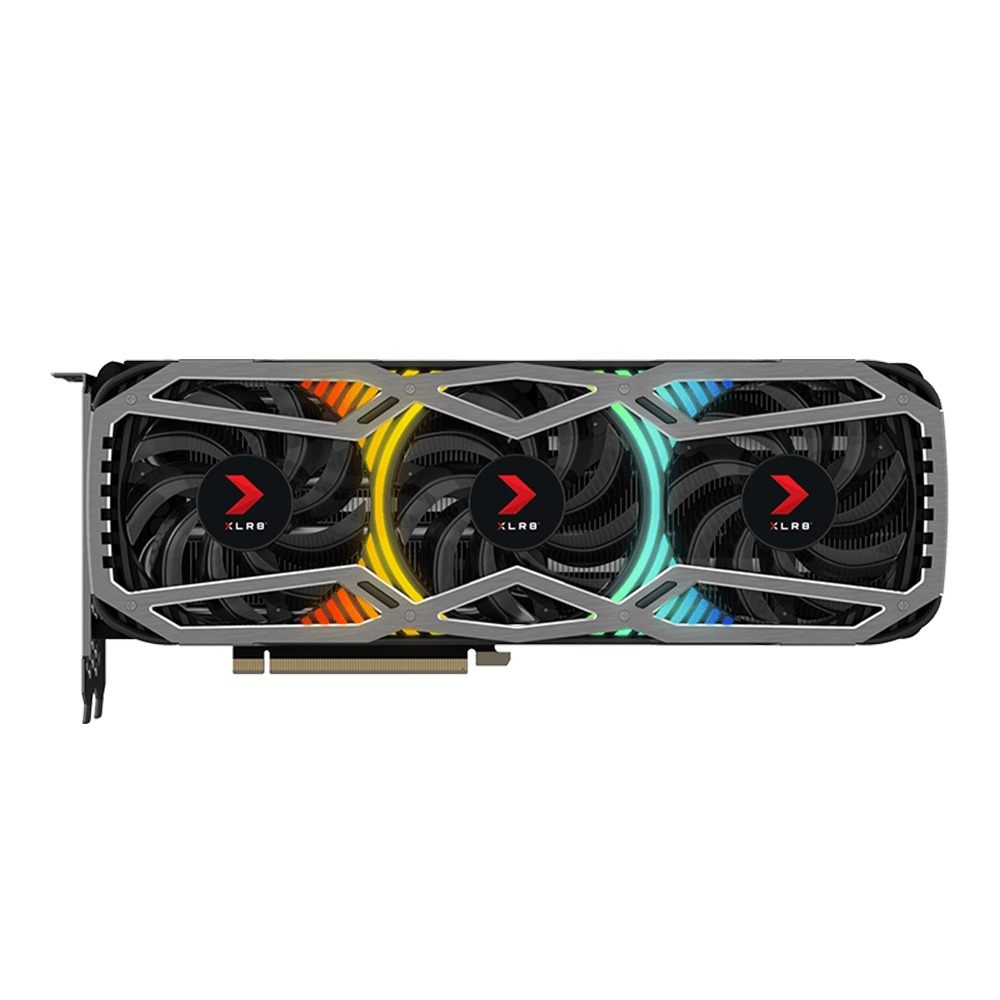

PNY GeForce RTX 3080 XLR8 REVEL 10GB Open Air Picture 65126PNY GeForce RTX 3080 XLR8 REVEL 10GB Open Air Picture 65127PNY GeForce RTX 3080 XLR8 REVEL 10GB Open Air Picture 65128PNY GeForce RTX 3080 XLR8 REVEL 10GB Open Air Picture 65129PNY GeForce RTX 3080 XLR8 REVEL 10GB Open Air Picture 65130
NVIDIA's GeForce RTX 3080 is the first consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies greatly depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. Compared to the previous 20 Series models, the RTX 3080 can be up to twice as fast in some applications - but not every program or game will see that much gain.

This variant from PNY uses a triple-fan cooling layout. It is a great design for keeping a single card running cool and quiet, but results in most of the heat it generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems. In those cases, a video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: PNY VCG308010TFXPPB

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3080
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
Lite Hash Rate No
GPU Specifications
Core Speed 1,440 MHz
Boost Speed 1,710 Mhz
Stream Processors 8704
Memory Specifications
Video Memory 10GB
Memory Type GDDR6X
Memory Speed 19,000 MHz
Memory Bus Width 320-bit
Bandwidth 760 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2+

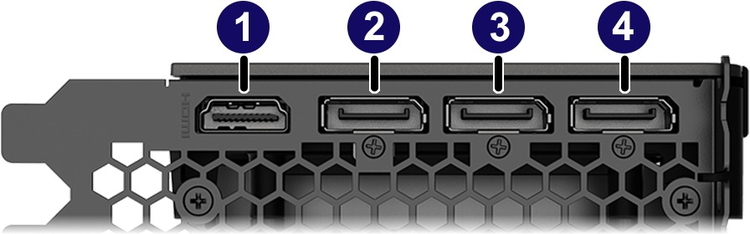

Outputs
Port 1 HDMI
Port 2 DisplayPort
Port 3 DisplayPort
Port 4 DisplayPort
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Dimensions
Length 293.9 mm (11.6 in)
Height 112 mm (4.4 in)
Width 56 mm (2.2 in)
Net Weight 1.055 kg (2.3 lbs)
