This card has four Mini DisplayPort connections, and includes adapters to DVI as well. Please note that if you are using those DVI adapters you will be limited to a lower maximum resolution (1920x1200).
This is a great, compact way to get quad monitor support. Or put two of them in your system for 8 monitor support!
This is a great card choice when you need to support many monitors for tasks like day-trading. This is not a very powerful graphics card. So if you have 3D demanding programs that you intend to run such as CAD / 3D modeling or Gaming, then you would want to choose a more powerful graphics card.
When choosing a graphics card, it is always important to make sure the monitor(s) that you intend to use will have compatible connection types with the graphics card outputs.
Keep in mind that if you use the Mini DP to DVI adapters, the maximum resolution from those DVI adapters will be 1920x1200.
*Important: When using mini DisplayPort-to-singlelink DVI adapters, quad output is divided into two pairs (displays 1 and 2 and displays 3 and 4). The displays used in each pair must be identical (with the same manufacturer and model number) and must be identically configured (with the same resolution).
Model: PNY VCNVS510DVI-PB
Specifications
| Chipset Manufacturer | nVidia |
| Product Line | Quadro |
| Interface | PCI Express 3.0 x16 |
| Maximum DisplayPort Resolution | 3840x2160 |
| Maximum DVI Resolution | 1920x1200 |
| Maximum Monitors Supported | 4 |
GPU Specifications | |
| Stream Processors | 192 |
Memory Specifications | |
| Video Memory | 2GB |
| Memory Type | DDR3 |
| Memory Bus Width | 128-bit |
| Bandwidth | 28.5 GB/s |
Additional Information | |
| Cooling System | Small Fan and Heatsink |
| DirectX Support | DirectX 11 |
| CUDA Support | 3.0 |
| OpenGL Support | 4.3 |
Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | None |
Dimensions | |
| Length | 160 mm (6.3 in) |
| Height | 68.9 mm (2.7 in) |

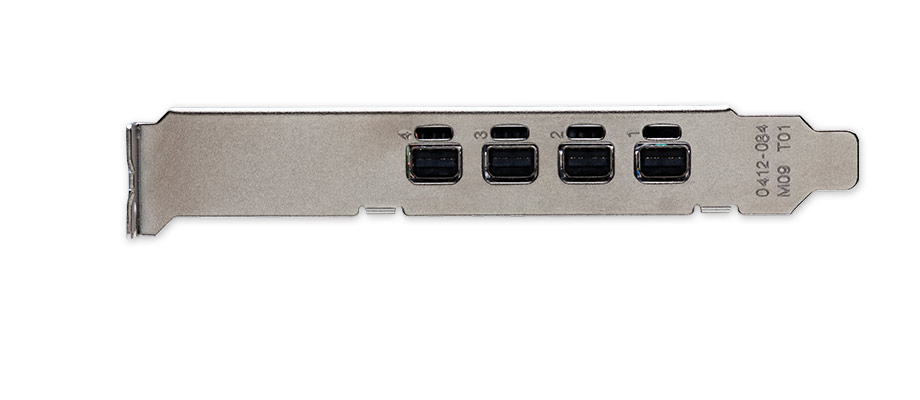

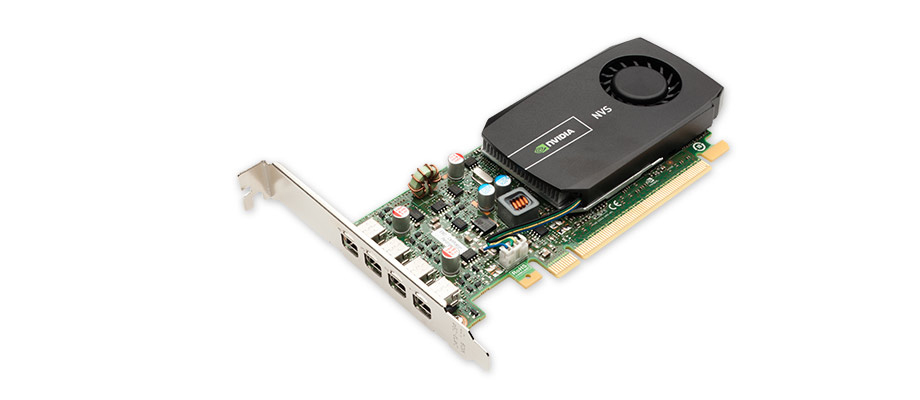

Reliably visualize any data across four displays with the power efficient, low-profile form factor NVIDIA NVS 510 business graphics solution. You get support for advanced DisplayPort 1.2 features like Multi-Stream Technology and Stream Cloning, plus the capability to natively drive four ultra-high resolution displays at up to 3840x2160 in small form-factor systems. This configuration of the NVS 510 also includes four locking mini-DisplayPort to DVI-D SL adapters for installations requiring DVI displays or a mix of DVI and DisplayPort monitors.
The NVS 510 also takes advantage of the latest NVIDIA Kepler architecture with 2 GB of dedicated graphics memory to deliver more than 3x the performance of the previous-generation solution-without increasing power. And it's backed by a super-reliable hardware and software platform and robust IT management tools to enable fast, cost-effective integration, deployment, and support across large enterprises. This makes it the ideal solution for today's most demanding business user.
Includes 4 Mini-DP to DVI-D SL adapters
