Puget Systems Acrylic Development Enclosure for NVIDIA Jetson TK1

Case

Puget Systems Acrylic Development Enclosure for NVIDIA Jetson TK1 Picture 29593Puget Systems Acrylic Development Enclosure for NVIDIA Jetson TK1 Picture 29594Puget Systems Acrylic Development Enclosure for NVIDIA Jetson TK1 Picture 29595Puget Systems Acrylic Development Enclosure for NVIDIA Jetson TK1 Picture 29596

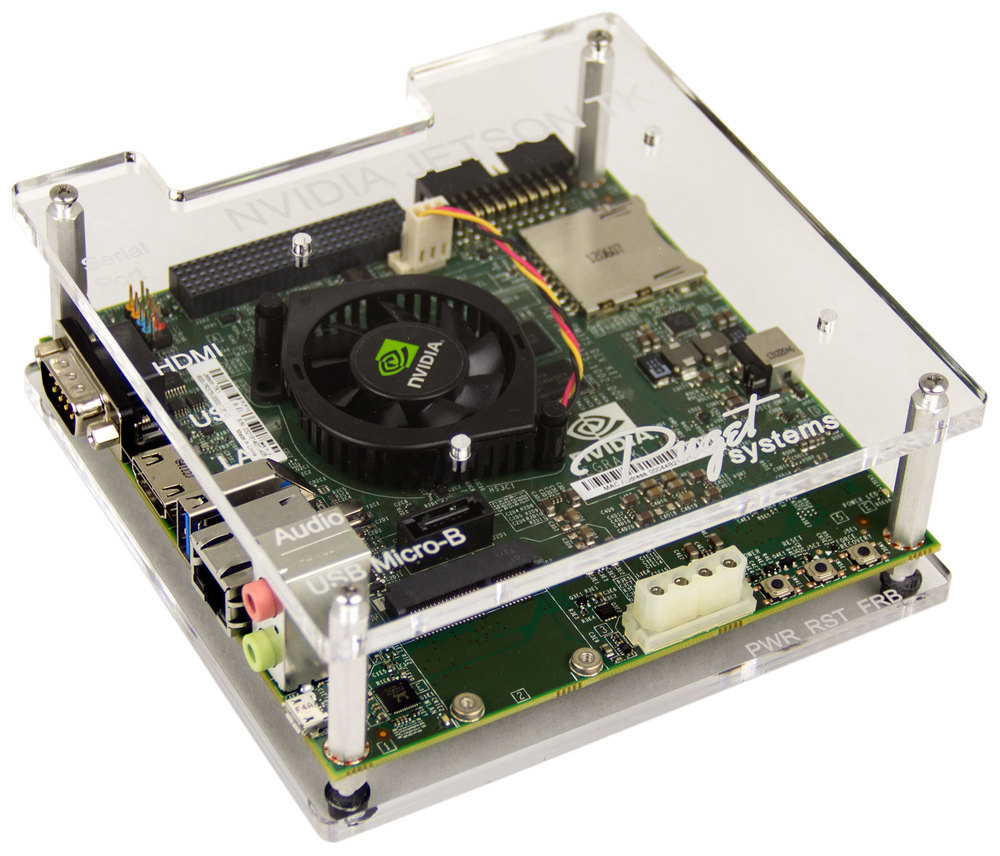

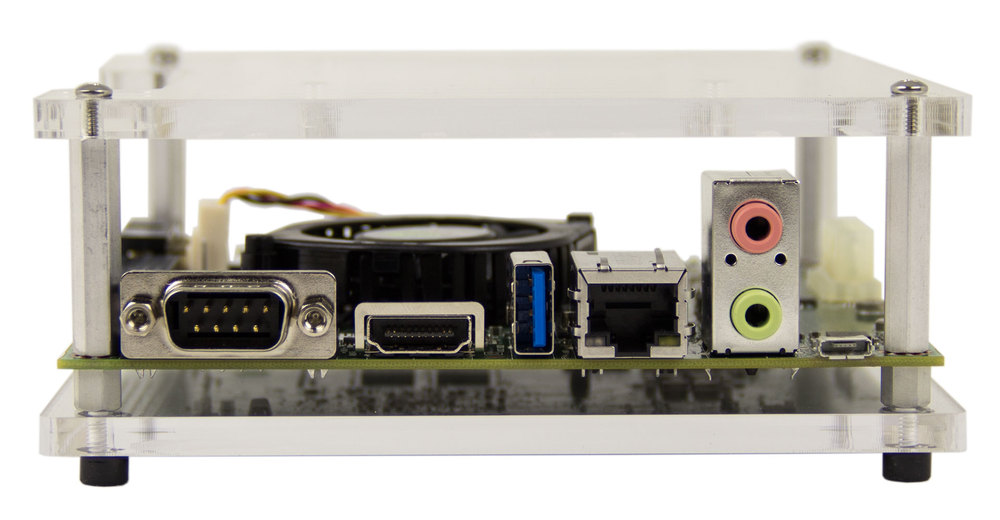

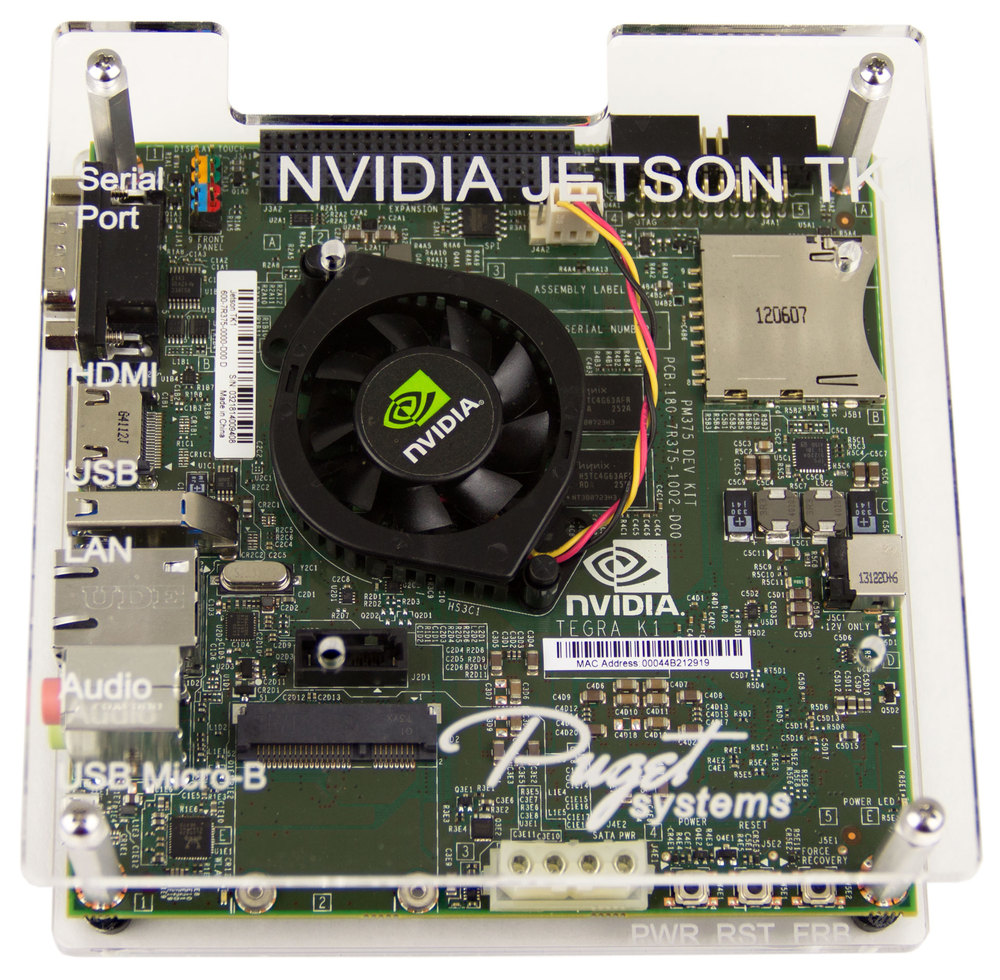

This simple case for the NVIDIA Jetson Tegra K1 developer board is great for providing basic protection while still allowing full access to the many i/o ports and connectors on the board. It is made from nicely laser-cut and etched acrylic, and is simple to assemble or dis-assemble.

Buy on Amazon
Donald Kinghorn (HPC and Scientific Computing)
Donald Kinghorn (HPC and Scientific Computing) Says:
"Nice housing for your Jetson TK1. Keeps your cat from stepping on your board while it's on your test bench. I'm glad I have mine!"
Model: Puget Systems JetsonTK1_Enclosure

Specifications:
spacer
Dimensions
Height  58 mm (2.3 in)
Width  133.35 mm (5.2 in)
Depth  133.35 mm (5.2 in)
Drive Bays
Internal 2.5 inch  1

Rubber feet not included (should come with the Jetson K1 board)

Includes mount points for a single 2.5inch hard drive on the top of the chassis, but does not include cables or mounting screws (4x ANSI M3x0.5 - 10mm). We recommend using a right-angle SATA cable if you are planning on mounting a 2.5inch hard drive.

Included components:
Bottom acrylic panel
Top acrylic panel
4x .25 inch #4-40 standoffs (for under the Jetson K1 board)
4x 1.25 inch #4-40 standoffs (for on top of the Jetson K1 board)
4x .375 inch #4-40 screws (for securing the top panel to the 1.25 inch standoffs)




Configure a custom computer with this part, or buy Puget Systems Acrylic Development Enclosure for NVIDIA Jetson TK1 from the Puget Store! (In stock)
