NVIDIA GeForce GTX 1080 8GB

Video Card

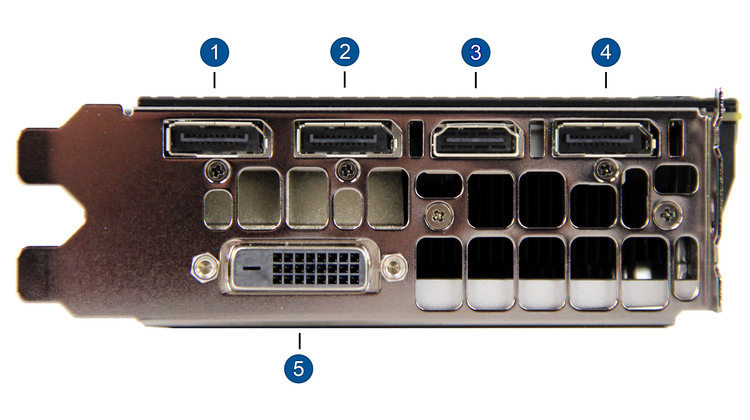

[ Rear Ports ]

NVIDIA GeForce GTX 1080 8GB Picture 39664NVIDIA GeForce GTX 1080 8GB Picture 39500NVIDIA GeForce GTX 1080 8GB Picture 39665NVIDIA GeForce GTX 1080 8GB Picture 41980
NVIDIA's GeForce GTX 1080 is the first mainstream graphics cards using their new Pascal GPU architecture. This generation is based on a die shrink to 16nm, allowing for a lot more circuitry to be packed into the same physical space used by previous graphics chips. That means a huge boost in performance, making the GTX 1080 over 70% faster than the GTX 980 and 30% faster than the 980 Ti and Titan X. Even with that increase in performance, the GTX 1080 draws only 180W - less than the 980 Ti and Titan X, and only slightly more than the vanilla 980.

In addition to its great speed and efficiency, the GTX 1080 also has under-the-hood improvements tailored to boosting virtual reality and multi-monitor performance. It is excellent at maintaining good frame-rates in games and VR experiences, even in graphics-laden titles and at high resolutions, and includes support for CUDA, DX12, and NVIDIA's 3D Vision technology. Finally, it supports up to 4 usable display outputs across five physical connections: DVI, HDMI, and three DisplayPorts.
William George (Product Development)
William George (Product Development) Says:
The GTX 1080 is a fantastic card all-around. It is great for gaming: viable as a single card at up to 4K resolution, though better suited to 1440P - and a good choice for virtual reality experiences like the HTC Vive. It also does very well in scientific computing with single precision (FP32) calculations.

And yes, I did buy one... on launch day... because I'm running 3440x1440... :)
Jeff Stubbers (Technology Consultant Lead)
Jeff Stubbers (Technology Consultant Lead) Says:
The GTX 1080 is a great graphics card, and offers support for (4) monitors with its (1) DVI, (1) HDMI, & (3) DisplayPort outputs. If you have the option, I would recommend using the DisplayPort outputs as it is the highest-end connection type.
Model: NVIDIA GTX 1080

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Core Speed  1607 MHz
Boost Speed  1733 Mhz
Stream Processors  2560
Memory Specifications
Video Memory  8GB
Memory Type  GDDR5X
Memory Speed  10000 MHz
Memory Bus Width  256-bit
Bandwidth  320 GB/s
Single Precision Floating Point (Peak)  9 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.1
OpenGL Support  4.5
Removable Backplate  Yes
Port 1  DisplayPort
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  HDMI
Port 5  Dual-Link DVI
Power Connectors
Plug 1  8-pin PCI-E
Length  266.7 mm (10.5 in)
Height  111.2 mm (4.4 in)
Width  38.1 mm (1.5 in)

Configure a custom computer with the NVIDIA GeForce GTX 1080 8GB.
