NVIDIA GeForce GTX 1080 Ti 11GB

Video Card

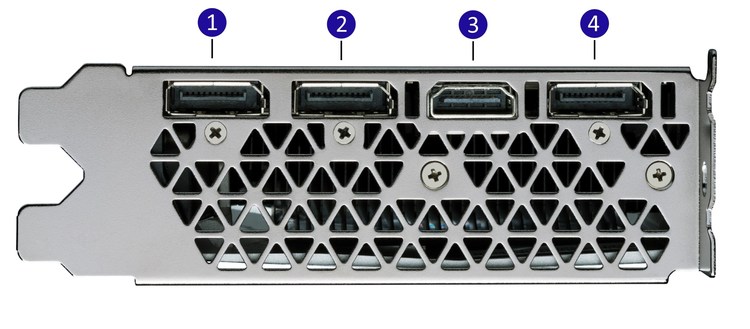

[ Rear Ports ]

NVIDIA GeForce GTX 1080 Ti 11GB Picture 42081NVIDIA GeForce GTX 1080 Ti 11GB Picture 42082NVIDIA GeForce GTX 1080 Ti 11GB Picture 46174
NVIDIA's GeForce GTX 1080 Ti represents a refresh to their new Pascal graphics card line. It improves upon the original GTX 1080 with both more graphics processors (CUDA cores) and additional video RAM. Those combine to provide a substantial boost in performance, with the GTX 1080 Ti about 30% faster than the GTX 1080 - and even a hair faster than the Titan X, though without quite as much onboard memory as that model.

In addition to its great speed and efficiency, the GTX 1080 Ti shares the under-the-hood improvements that all Pascal cards have for boosting virtual reality and multi-monitor performance. It is excellent at maintaining good frame-rates in games and VR experiences, even in graphics-laden titles and at high resolutions, and includes support for CUDA, DX12, and NVIDIA's 3D Vision technology. Finally, it supports up to 4 usable display outputs: one HDMI 2.0 and three DisplayPorts. The older DVI connection has been removed, which allows more room for the card to vent hot air.
William George (Product Development)
William George (Product Development) Says:
The GTX 1080 Ti is the fastest video card for gaming, as of its launch in March 2017, and it should excel in other GPU accelerated applications as well. It is probably overkill for gaming at anything below 4K 60Hz or 1440P 120Hz, but if you want the best then this is it (until the next generation of GeForce cards come out, at least). It should also do very well in scientific computing with single precision (FP32) calculations.
Jeff Stubbers (Technology Consultant Lead)
Jeff Stubbers (Technology Consultant Lead) Says:
It is interesting to note that one difference this card has compared to the other GTX 10xx series cards is that it drops the DVI output. Instead this card has (1) HDMI, & (3) DisplayPort outputs. So please make sure your monitor(s) have compatible inputs.

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Core Speed  1480 MHz
Boost Speed  1582 Mhz
Stream Processors  3584
Memory Specifications
Video Memory  11GB
Memory Type  GDDR5X
Memory Speed  11000 MHz
Memory Bus Width  352-bit
Bandwidth  484 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.1
OpenGL Support  4.5
Removable Backplate  Yes
Port 1  DisplayPort
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  6-pin PCI-E
Plug 2  8-pin PCI-E
Length  266.7 mm (10.5 in)
Height  111.2 mm (4.4 in)
Width  38.1 mm (1.5 in)

Configure a custom computer with the NVIDIA GeForce GTX 1080 Ti 11GB.
