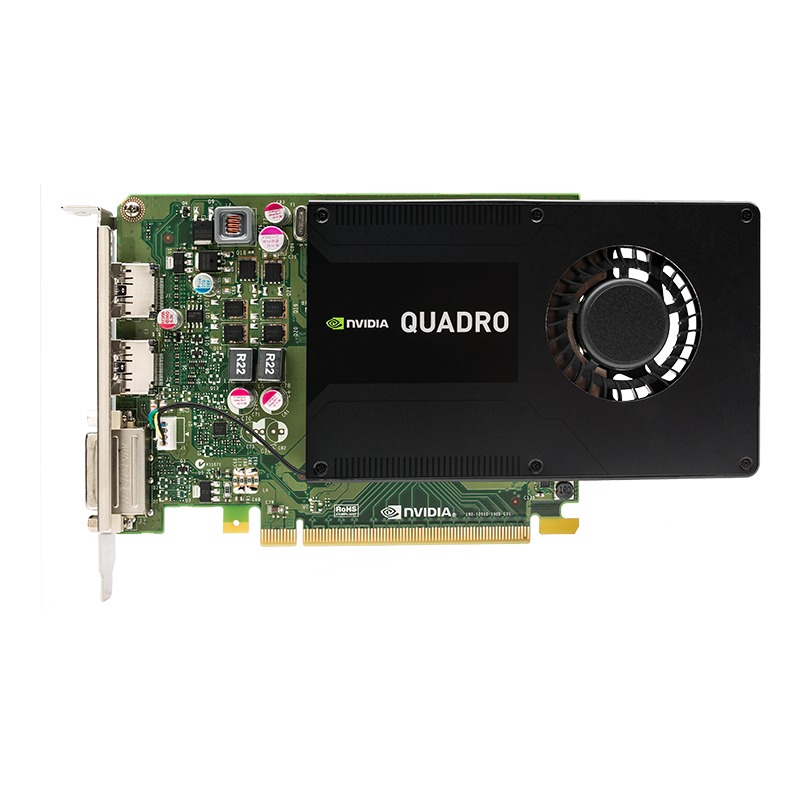

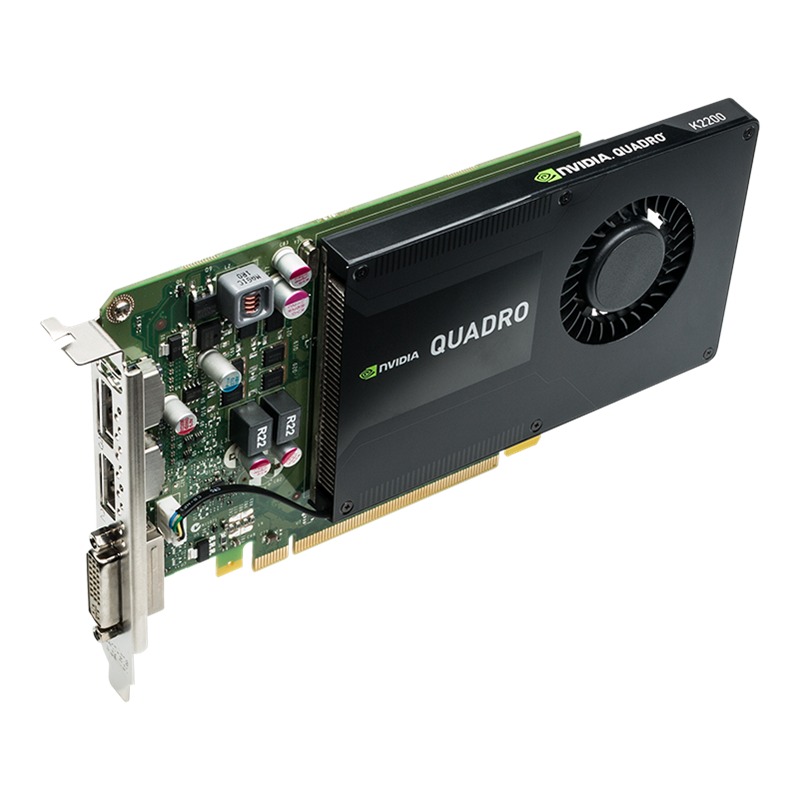

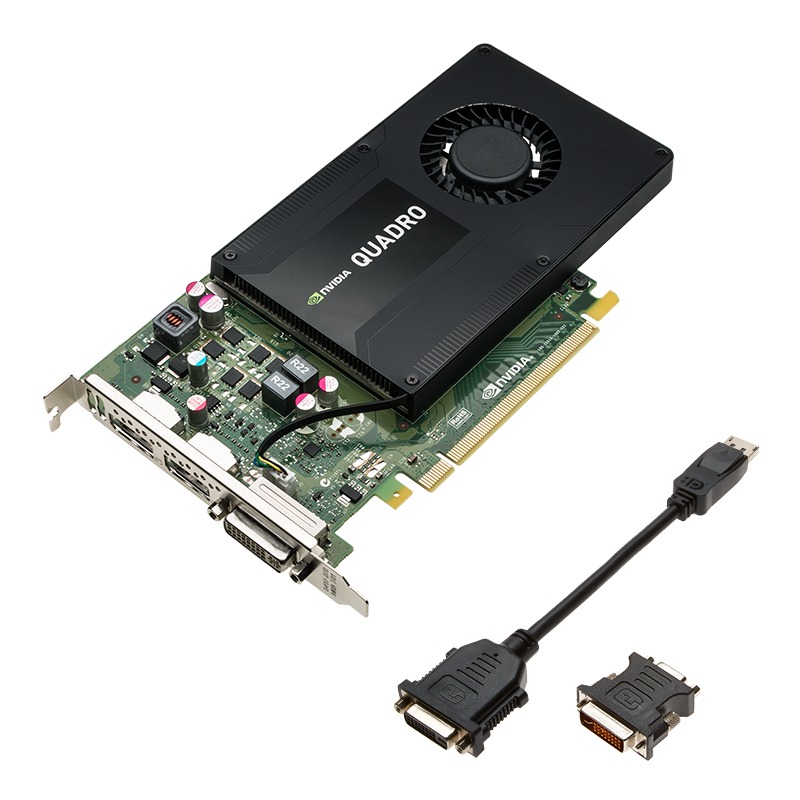

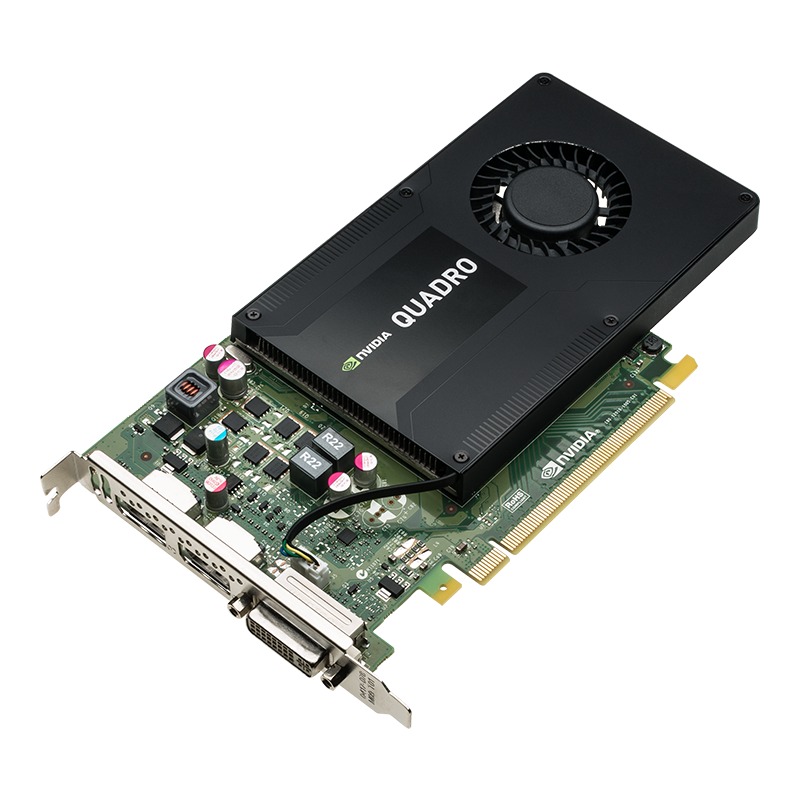

PNY Quadro K2200 PCI-E 4GB

Video Card

PNY Quadro K2200 PCI-E 4GB Picture 32507PNY Quadro K2200 PCI-E 4GB Picture 32508PNY Quadro K2200 PCI-E 4GB Picture 32509PNY Quadro K2200 PCI-E 4GB Picture 32510PNY Quadro K2200 PCI-E 4GB Picture 32511
The NVIDIA Quadro K2200 is a mid-range, Maxwell-based professional graphics card - one of the first Quadro cards to switch to that new GPU architecture. It has double the video memory of its predecessor, the K2000, with 4GB of graphics memory on a 128-bit bus. Its processing power is also increased substantially, with 640 stream processors.

In addition to solid performance for professional 3D applications, the Quadro K2200 also supports more monitors than previous generations. It can run up to three screens at the same time, thanks to a dual-link DVI port and a pair of DisplayPort outputs. A wide range of standards are also supported by this card: DirectX 11, OpenGL 4.4, CUDA 5.0, and OpenCL (to name a few).
William George (Puget Labs)
William George (Puget Labs) Says:
This is a great mid-range Quadro card, which is ideal for applications which need a "professional grade" video card but don't require cutting-edge 3D performance. It also supports 10-bit color, so it is a great choice for Photoshop users with high-end, 10-bit capable monitors. If you don't fall into one of those categories, though, a GeForce card around the same price will give more raw 3D performance in most situations.
Jeff Stubbers (Mr. Customer Service)
Jeff Stubbers (Mr. Customer Service) Says:
This is a great choice if you are looking for a mid-range 30-bit graphics card for most accurate colors when pairing with a 10-bit monitor. This card can support up to 3840x2160 resolution with its DisplayPort outputs.
Model: PNY VCQK2200-PB

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 2.0 x16
Maximum DVI Resolution  2560x1600
Maximum DisplayPort Resolution  3840x2160
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Stream Processors  640
Memory Specifications
Video Memory  4GB
Memory Type  GDDR5
Memory Bus Width  128-bit
Bandwidth  80 GB/s
Performance
Single Precision Floating Point (Peak)  1.4 Tflops
Additional Information
Cooling System  Small Fan and Heatsink
DirectX Support  DirectX 11.2
CUDA Support  5.0
OpenGL Support  4.4

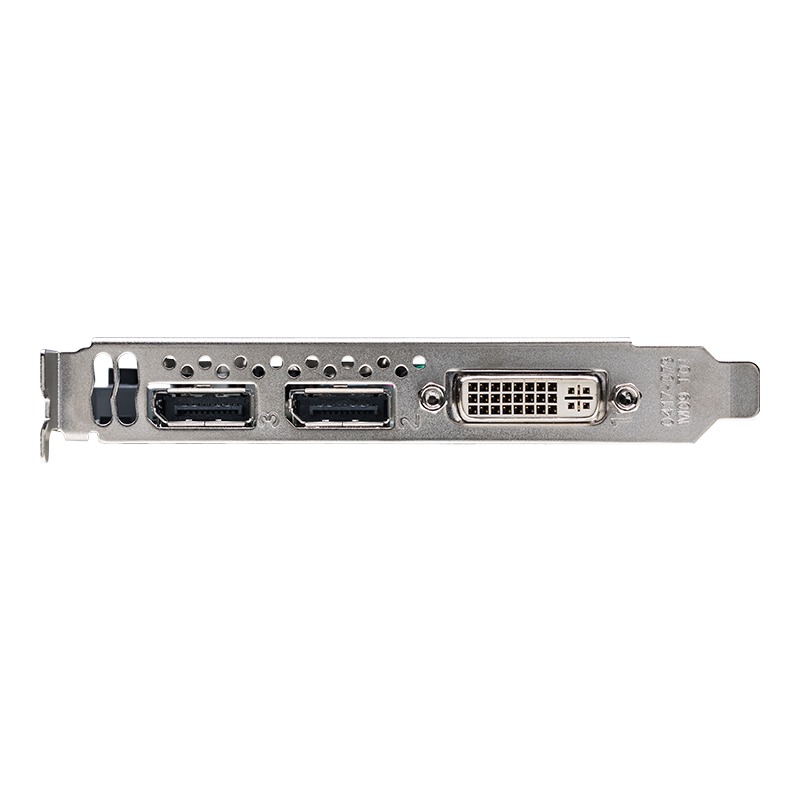

Outputs
Port 1  Dual-Link DVI
Port 2  DisplayPort
Port 3  DisplayPort
Power Connectors
Plug 1  None
Dimensions
Length  202.5 mm (8.0 in)
Height  111.15 mm (4.4 in)

The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, and a flexible single-slot form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840 x 2160 at 60 Hz with 30-bit color.

Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions- whether its product design, visualization and simulation, or spectacular visual storytelling-and get results to market faster.




Configure a custom computer with the PNY Quadro K2200 PCI-E 4GB.
