Fractal Design Define R5 White w/ Window

Case

[ Front Panel ]

Fractal Design Define R5 White w/ Window Picture 34880Fractal Design Define R5 White w/ Window Picture 34877Fractal Design Define R5 White w/ Window Picture 34875Fractal Design Define R5 White w/ Window Picture 34874Fractal Design Define R5 White w/ Window Picture 34873Fractal Design Define R5 White w/ Window Picture 34872Fractal Design Define R5 White w/ Window Picture 34871Fractal Design Define R5 White w/ Window Picture 34869Fractal Design Define R5 White w/ Window Picture 34870Fractal Design Define R5 White w/ Window Picture 34867Fractal Design Define R5 White w/ Window Picture 34868Fractal Design Define R5 White w/ Window Picture 34866Fractal Design Define R5 White w/ Window Picture 34864Fractal Design Define R5 White w/ Window Picture 34865Fractal Design Define R5 White w/ Window Picture 34863Fractal Design Define R5 White w/ Window Picture 34862Fractal Design Define R5 White w/ Window Picture 34878Fractal Design Define R5 White w/ Window Picture 34879Fractal Design Define R5 White w/ Window Picture 38180

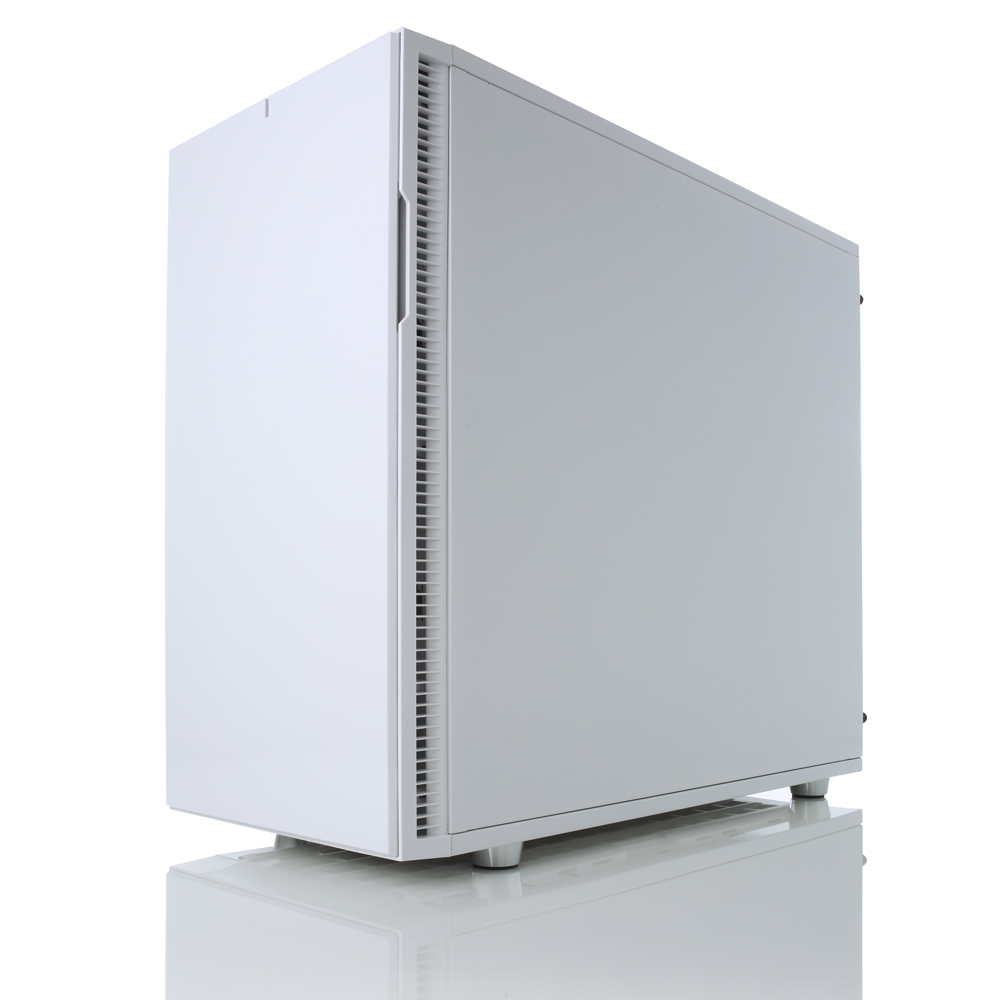

Fractal Design's Define R5 chassis is a generational upgrade to their quiet case series. The look and finish of the case has been changed compared to previous versions, which is most noticeable in the design of the top panel. The front door is now reversible and easier to remove, along with other small changes all around the chassis.

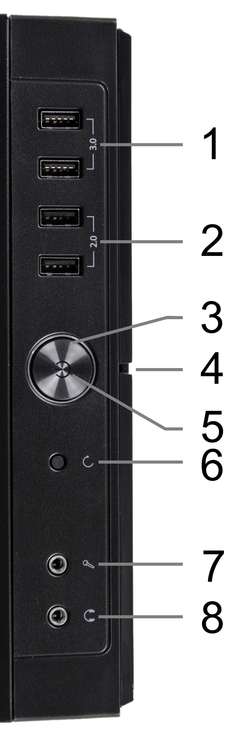

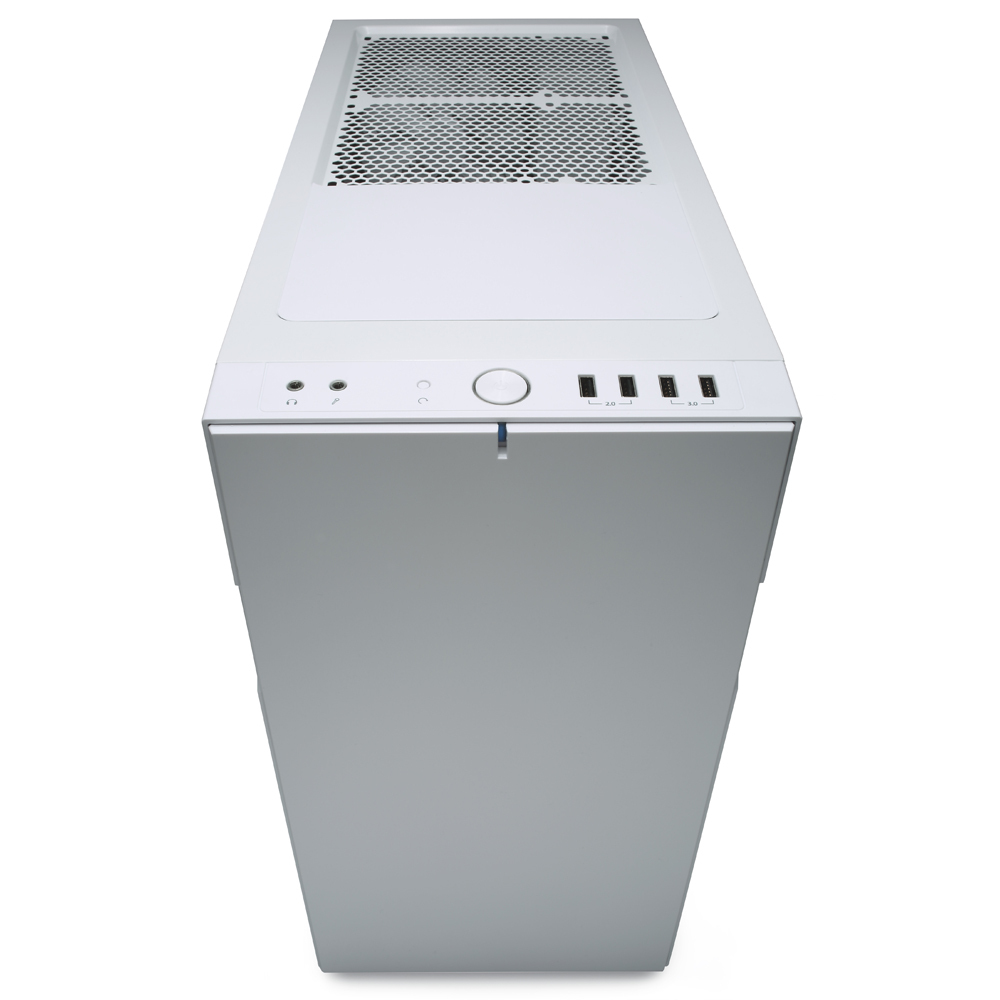

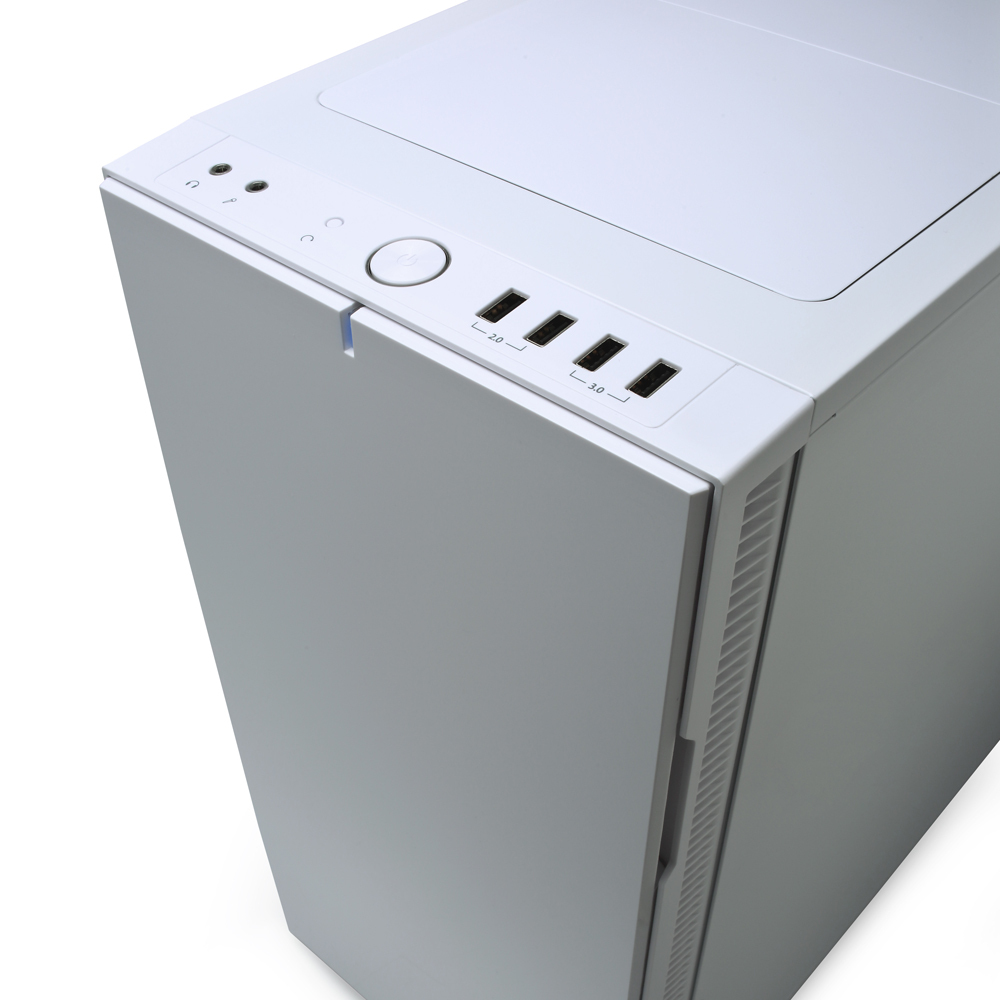

The new R5 retains a flexible design layout. There is support for two 5.25-inch external bays and up to eight 2.5- or 3.5-inch internal drives. Two quiet 140mm fans are included, with room to fit up to four more. The front connections are located at the top of the case, directly above the front door, and include two each of USB 2.0 and USB 3.0 ports alongside headphone and mic plugs.

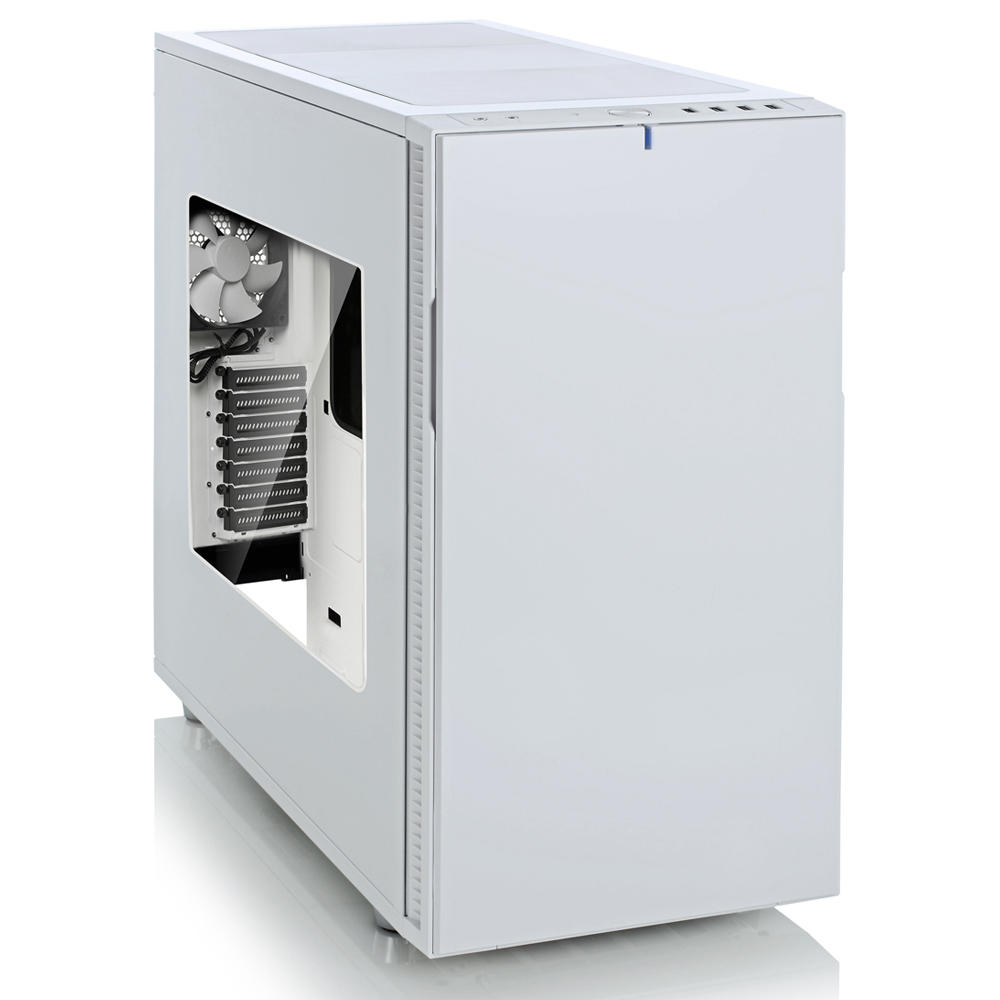

This particular version is 'White' in color. The entire exterior is white, with lots of black accents internally. The foam padding on the inside of the door is also black, which is the most noticeable non-white element. You can also see a lot of the accent pieces through the window.
Jeff Stubbers (Mr. Customer Service)
Jeff Stubbers (Mr. Customer Service) Says:
This is a very nice case. It offers good cooling, several internal hard drive bays, along with built-in sound dampening material. This case is a couple inches shorter than most full towers, so if you are height restricted for your system, this may be a better option to consider. A downside to this case is that it has no 3.5" external bay, and just two 5.25" (DVD) bay. So if you would like to use a 3.5" media card reader, it will need to be placed in one of the two 5.25" bays, leaving just one 5.25" bay for a single optical drive. If you don't need or care for the side-panel window, consider the non-windowed Fractal Design Define R5 version, which will provide more sound dampening, and is the default case type in our Puget Obsidian.
Christopher Crader (Customer Support)
Christopher Crader (Customer Support) Says:
I don't know what it is about white cases, but I like them. We don't regularly stock this particular one, though, as most of the time we use some form of gray or black. Fractal does a really good job with the Define R5, though.

Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

Model: Fractal Design FD-CA-DEF-R5-WT-W

Specifications:
spacer
Color  White
Material  Plastic shell, steel frame
Type/Size  Mid Tower
Maximum Motherboard Size  ATX
Case Window  Yes
Power Supply  None
Dimensions
Height  462 mm (18.2 in)
Width  232 mm (9.1 in)
Depth  531 mm (20.9 in)
Net Weight  11.2 kg (24.7 lbs)
Maximum CPU Cooler Height  180mm
Maximum GPU Length  310mm or 440mm with top HD cage removed
Maximum PSU Length  170mm with a bottom fan or 300mm without
Drive Bays
External 5.25 inch  2
External 3.5 inch  0
Internal 2.5 inch  2
Internal 2.5/3.5 inch  8
Front Panel Connectors
USB 2.0  2
USB 3.0  2
Firewire  0
Audio In  1
Audio Out  1
eSATA  0
Cooling System
Cooling Method  Air
Included Fans  140mm front and rear
Additional Fans Possible  120/140mm front, 3x 120/140mm top, 1x 120/140mm bottom

Features:
  • Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow and cooling capabilities.

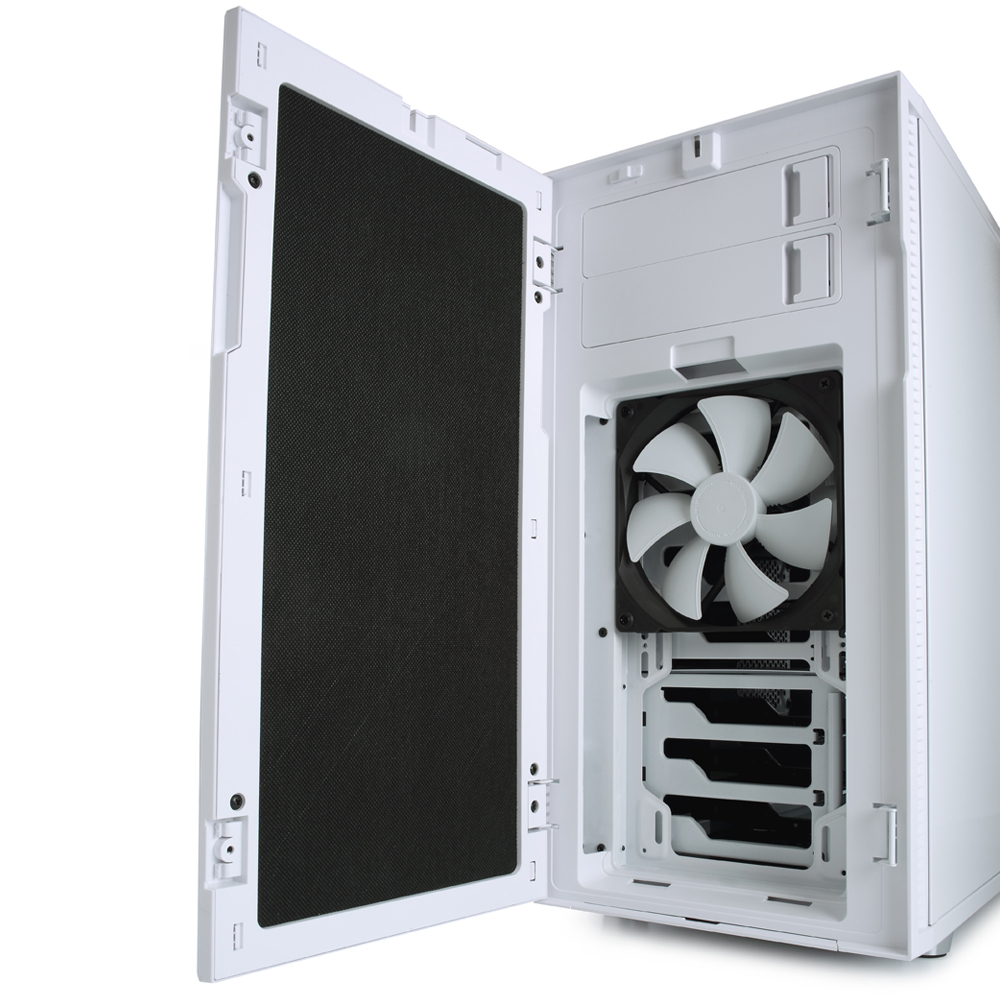

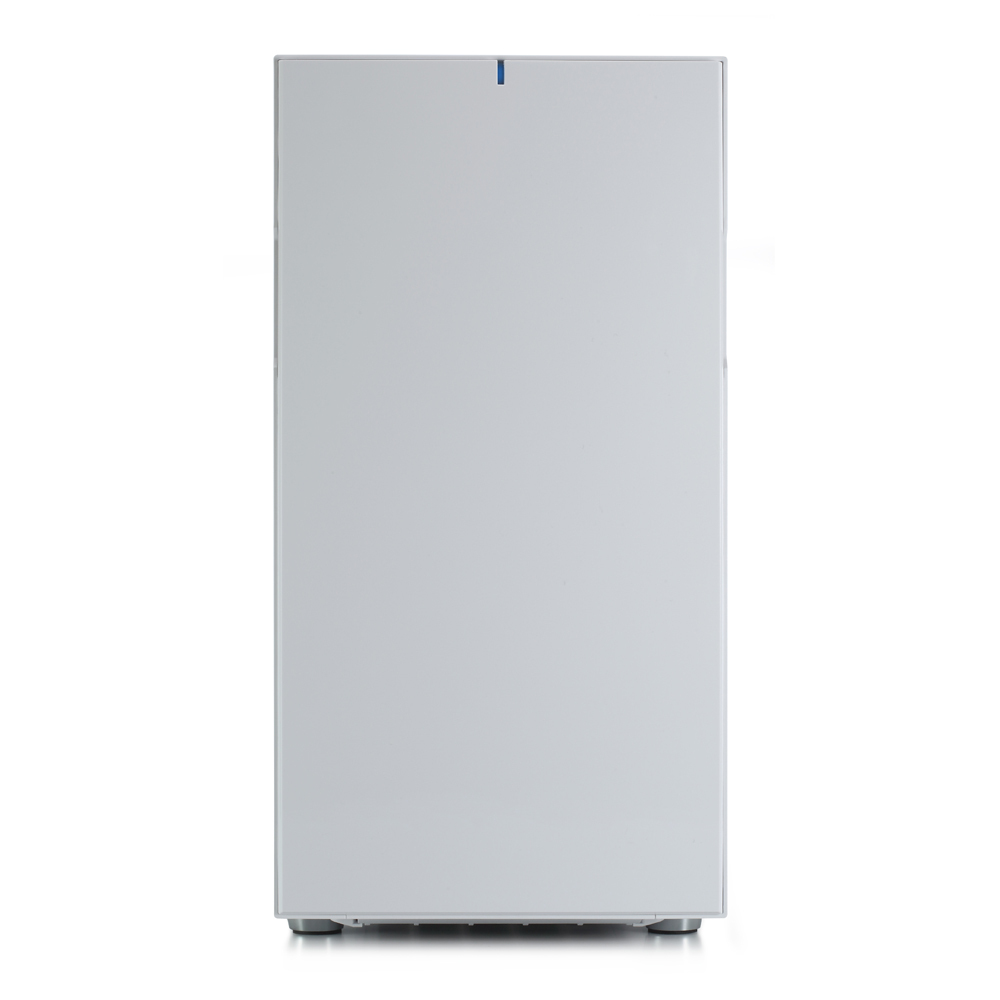

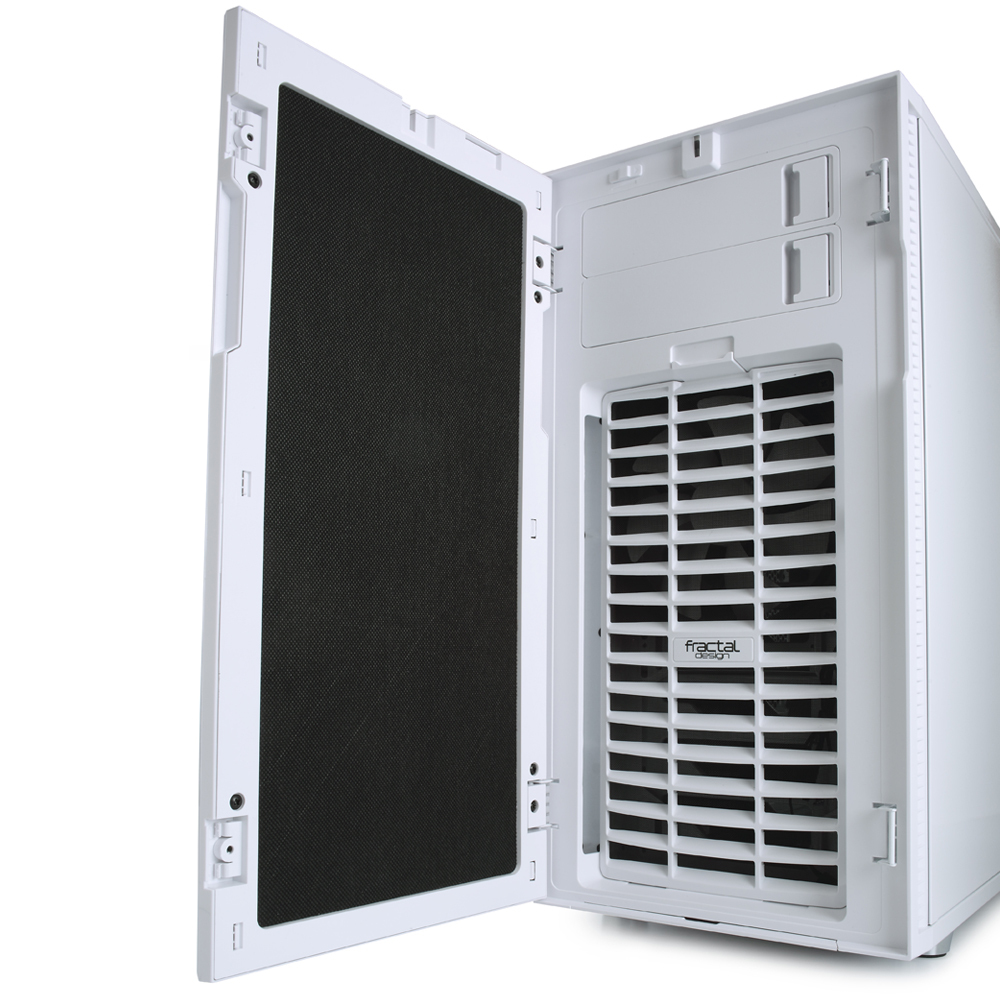

  • Newly configured front door with dual side mounting to better fit your work space

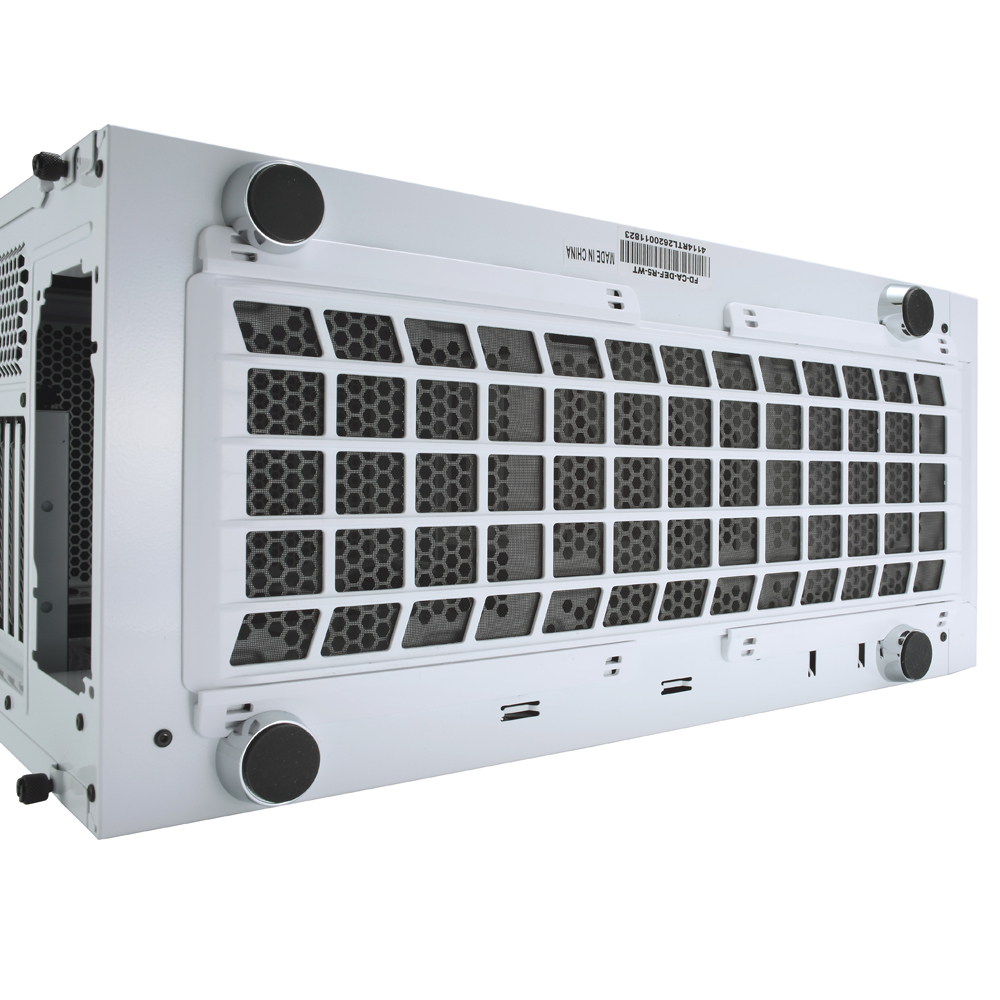

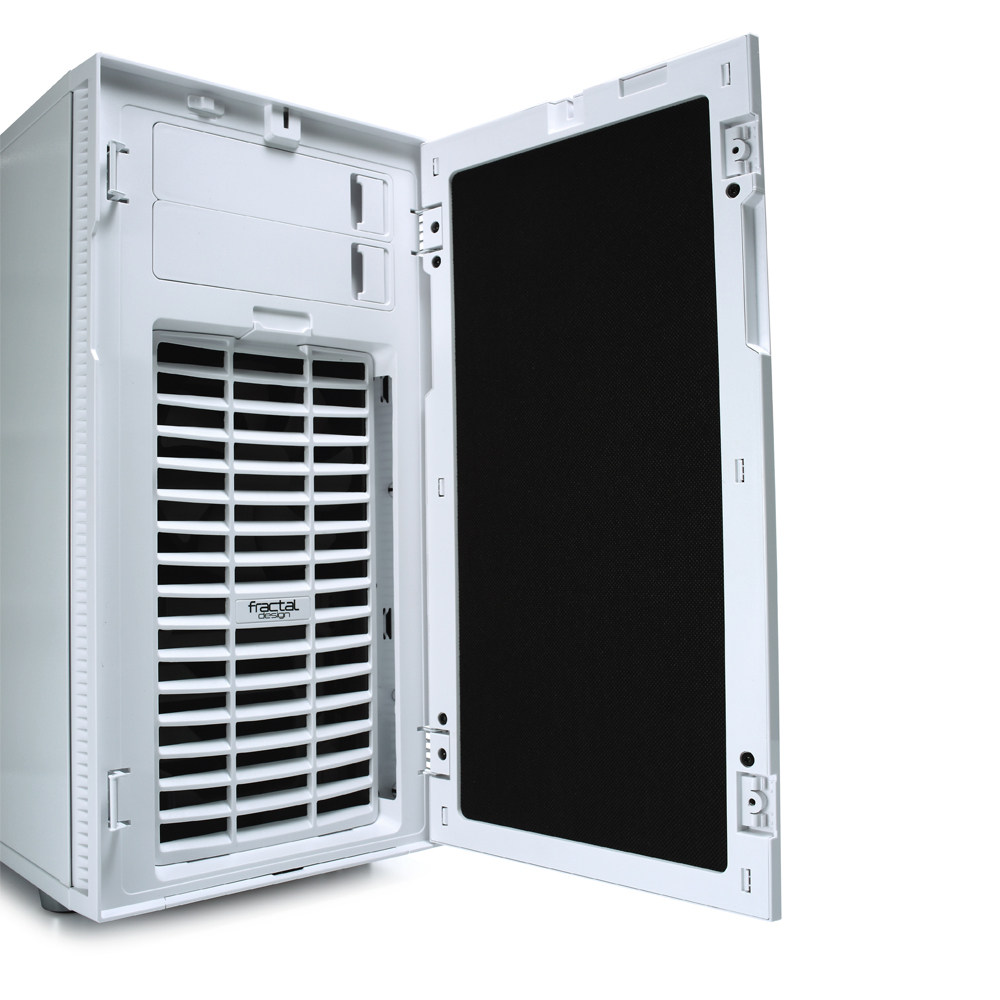

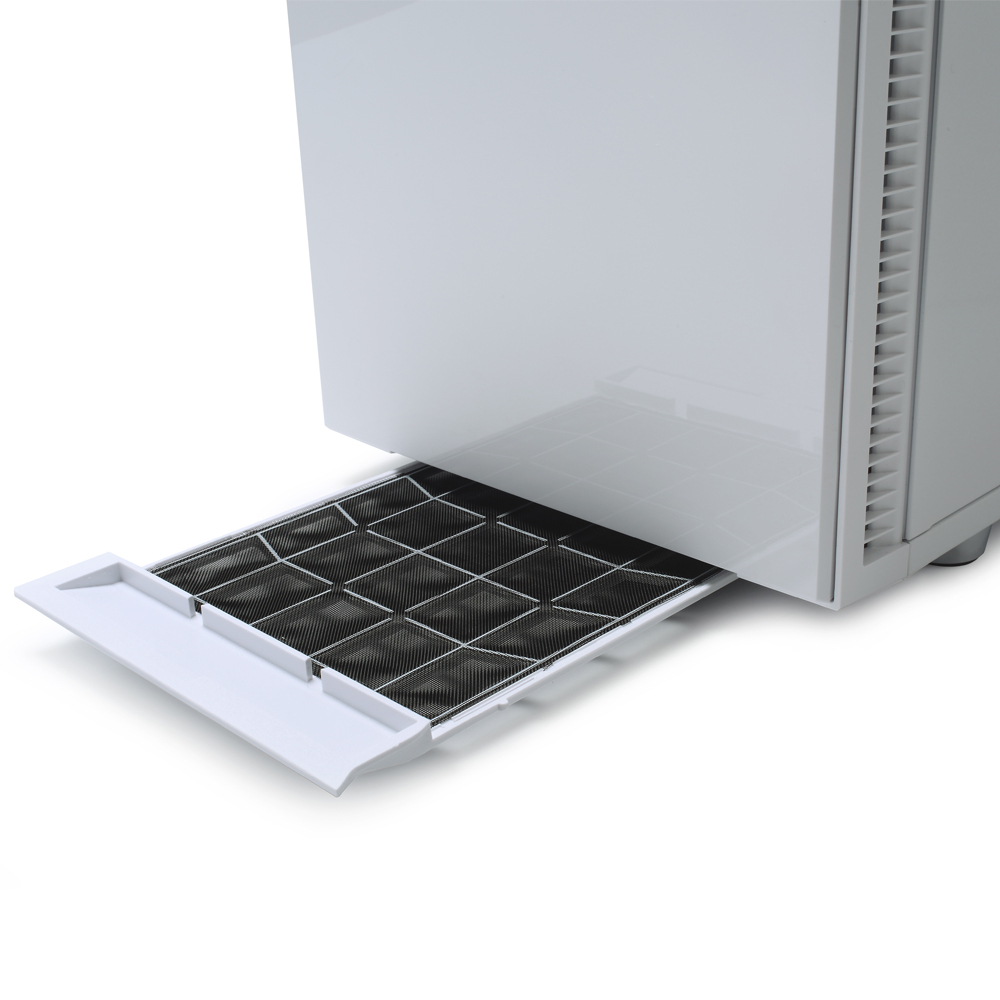

  • Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case.

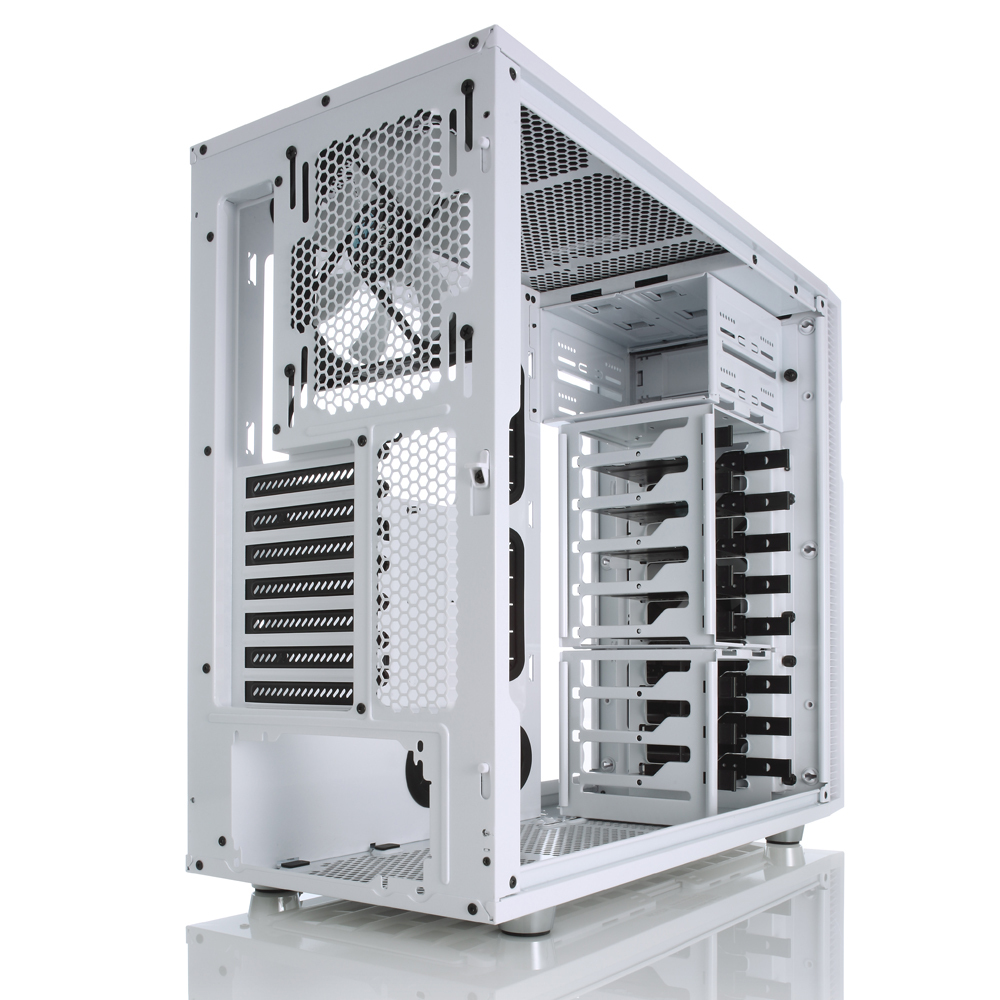

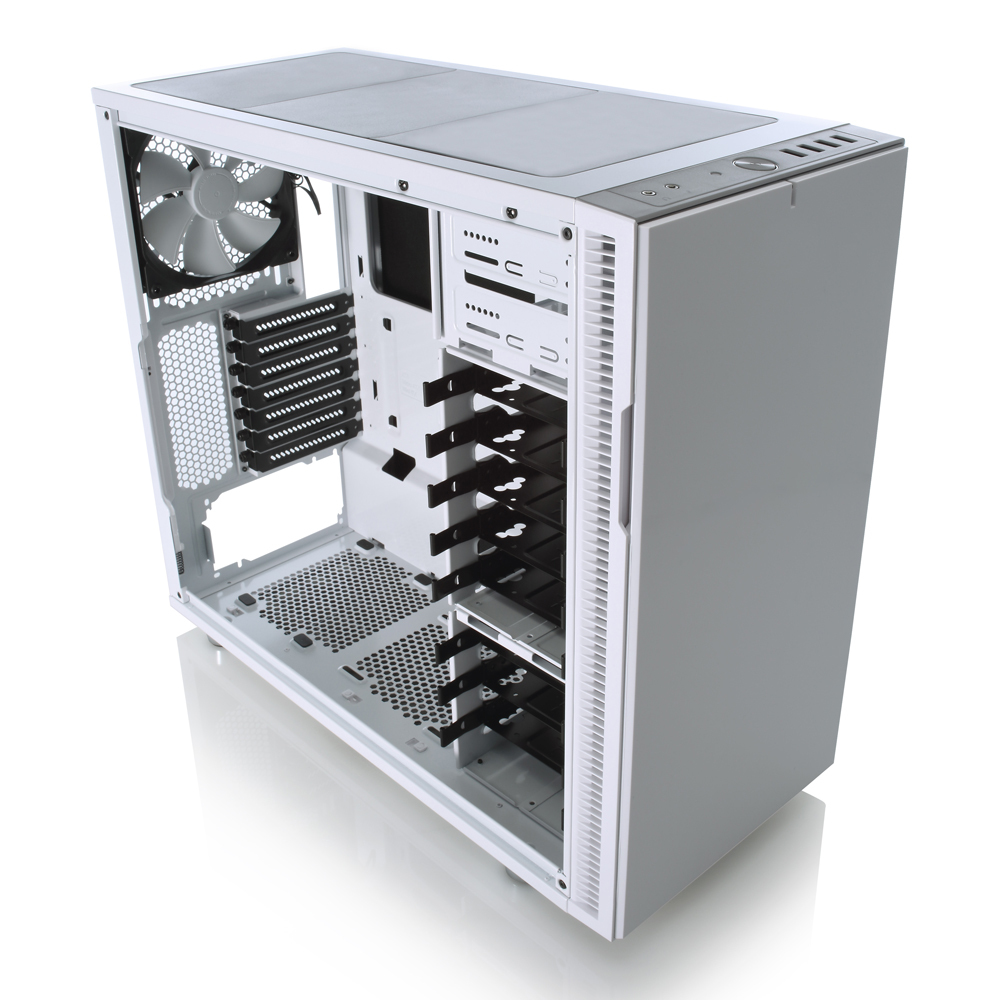

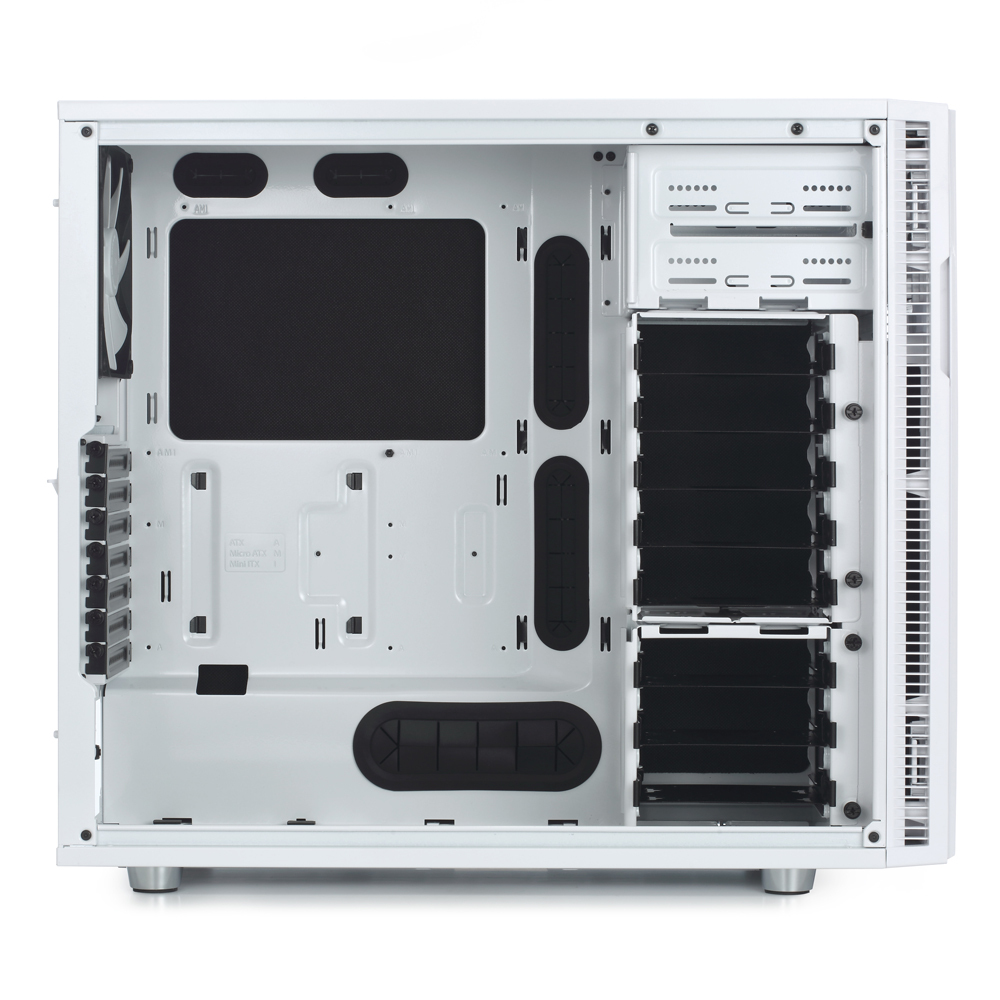

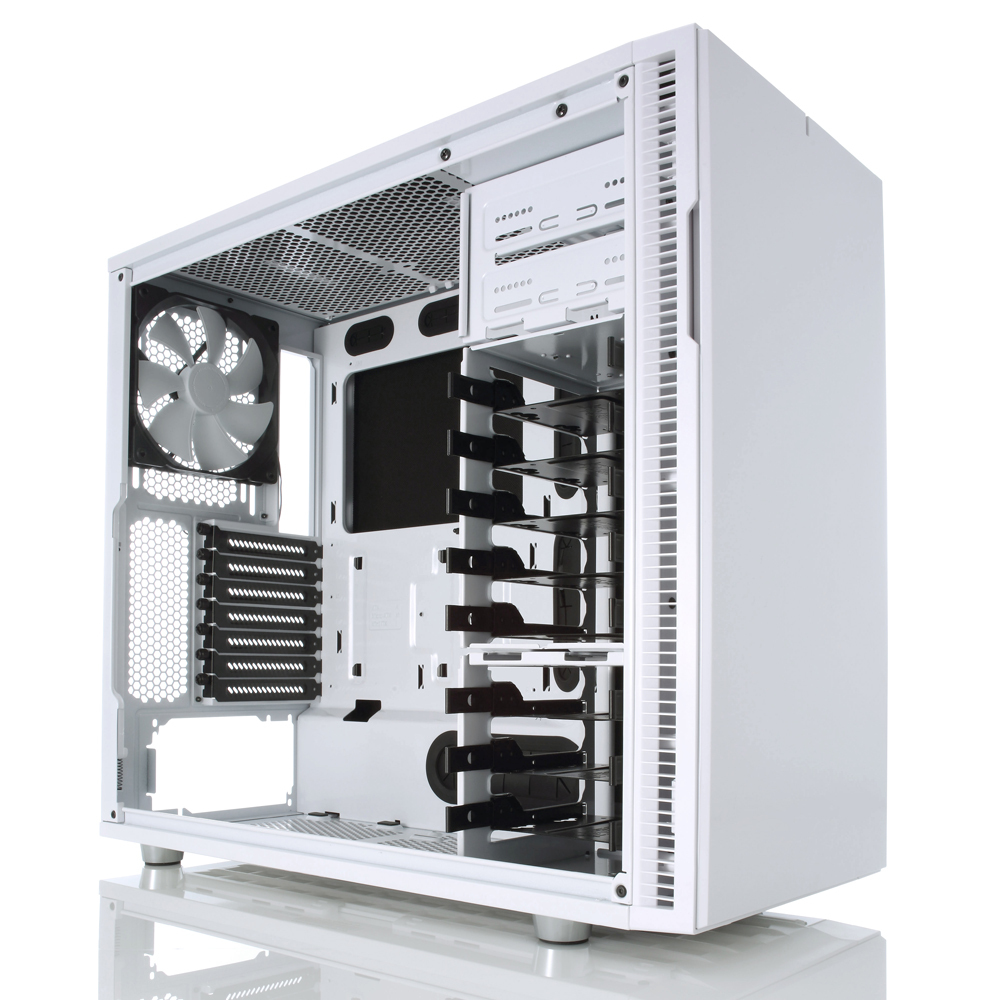

  • The HDD cage system holds up to eight 3.5” or 2.5” drives and is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages
  • The new and innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick and easy access to the system.
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.
  • Equipped with new tool-less ModuVent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
  • Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.

The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand.




Configure a custom computer with the Fractal Design Define R5 White w/ Window.
