Micca OriGen G2 USB DAC

Sound Card

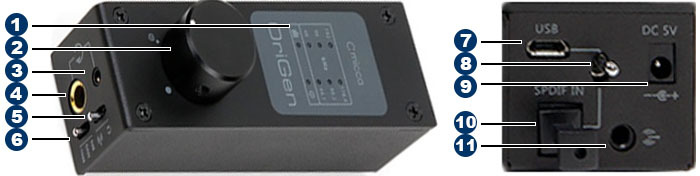

[ Rear Ports ]

Micca OriGen G2 USB DAC Picture 46101Micca OriGen G2 USB DAC Picture 46102Micca OriGen G2 USB DAC Picture 46103Micca OriGen G2 USB DAC Picture 46104Micca OriGen G2 USB DAC Picture 53257

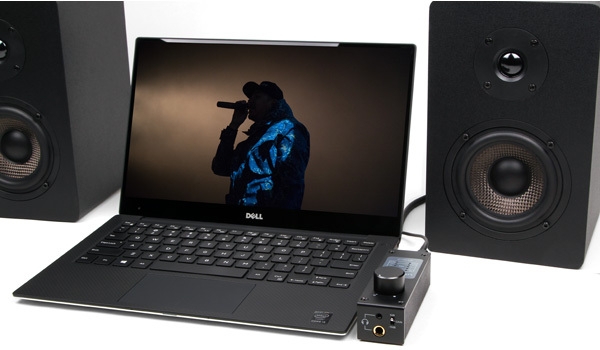

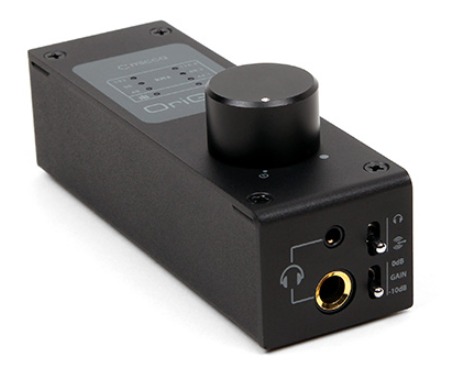

The Micca OriGen G2 USB DAC is an external digital to analog converter - very similar to a sound card in function, but removed from the noisy electrical environment inside a computer. It connects to a computer via USB and provides 1/8- and 1/4-inch audio outputs, along with an adapter cable for left and right RCA plugs. Switches next to the outputs allow for headphone or line-level output, along with an optional 10dB gain.

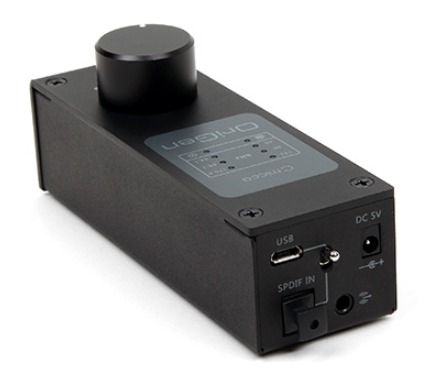

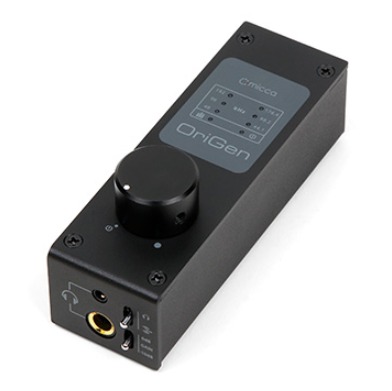

A volume knob is present on top of the OriGen G2, and it is ideal to set the volume in your OS to maximum and utilize the physical control for the best quality. There are also LED status indicators above the knob, and the USB and power inputs are located on the back.
Jeff Stubbers (Technology Consultant Lead)
Jeff Stubbers (Technology Consultant Lead) Says:
Micca lists this DAC as having ASIO and WASAPI Push/Event support, which is important for audio recording.
John D. (Senior Production Technician)
John D. (Senior Production Technician) Says:
Micca's made a nice, affordable USB DAC in the OriGen G2. It draws power from the USB port so installation is as easy as just plugging it in to your PC. Output is selectable via switch between the front headphone outputs and the rear line-out. The line-out is also affected by the volume control, but do be aware that it is not amplified--you will need to connect to either a separate amplified or powered speakers. The headphone output sounds very good and has pretty decent power. There is a high/low gain switch that should cover most needs, but if your headphones are particularly difficult to drive it may be worth looking into a more powerful amplifier unit with dedicated power input.

Note: Comes with 3.5mm to RCA cable, micro USB cable, and quick start guide.

Model: Micca OriGen G2

Specifications:
spacer
Specifications
Slot Type  USB
Channel Output  2.0 Channels
Analog Output  3.5mm & 6.35mm (1/4in)
Digital Output  None
Digital Input  Optical SPDIF
Front Audio Signal to Noise Ratio  >108 dB
Rear Audio Signal to Noise Ratio  >108 dB
Dimensions  116x51x47mm

Features:
  • General:
    PCM Formats PCM (44.1/48/88.2/96/176.4/192kHz, 16/24bit)
    USB Interface USB 2.0, Asynchronous Transfer Mode
    Audio Controller C-MEDIA CM6631A
    Digital-to-Analog Converter Wolfson WM8740
    Output Op-amp JRC NJM4556
    Channel Imbalance < 0.5dB
    Optical S/PDIF Format PCM Only
    Power Source 5V/500mA
    Dimensions 4.6 x 2.0 x 1.9 Inch (116mm x 51mm x 47mm)
    Weight 6 Oz (170g)

  • Line Level Output:
    Frequency Response 20Hz ~ 20kHz +/- 0.1dB
    THD+N < 0.02% (1kHz, A-wt.)
    Signal to Noise Ratio > 108dB (1kHz, A-wt.)
    Crosstalk < -74dB (1kHz)
    Output Voltage 5.3Vrms (Gain: 0dB); 1.6Vrms (Gain: -10dB)

  • Headphone Output:
    Frequency Response 20Hz ~ 20kHz +/- 0.1dB
    THD+N < 0.02% (1kHz, A-wt.)
    Signal to Noise Ratio > 108dB (1kHz, A-wt.)
    Crosstalk < -93dB (1kHz)
    Output Voltage 5.3Vrms (Gain: 0dB); 1.6Vrms (Gain: -10dB)
    Output Current 70mA (Nominal); 100mA (Max)
    Output Impedance 0.5 Ω
    Load Impedance 16 ~ 600 Ω

  • Comes with 3.5mm to RCA cable, micro USB cable, and quick start guide.
Warranty:

1 Year
