What is my purpose
There are a finite number of monitor connections but nonetheless it can seem overwhelming at times. We will break down the common ones currently available and how to identify them. Most systems will use either HDMI or DisplayPort (DP) and we always recommend using direct end to end cabling over the use of adapters or conversions of any kind.
You're probably most familiar with the commonly referred to connection type: HDMI. Since TVs and monitors alike use HDMI it's a cable almost everyone has around. HDMI is also a very versitile cable able to transmit medium, high, and Ultra high resolution video and can also transmit high definition audio.
There have been a few iterations of HDMI over the years capable of supporting a variety of display resolutions and current technologies.
- HDMI 1.4: Supports up to 4K (4,096 by 2,160) at 24Hz, 4K (3,840 by 2,160) at 30Hz, or 1080p at 120Hz.
- HDMI 2.0: Supports up to 4K at 60Hz, and later versions (HDMI 2.0a and 2.0b) included support for HDR
- HDMI 2.1: Supports up to 10K resolution at 120Hz, as well as improved HDR with dynamic metadata and enhanced Audio Return Channel (eARC) which allows sending Dolby Atmos and DTS:X audio from the display to a receiver.
There were other improvements made to the cable over the years but these are the relevant ones
DisplayPort looks very similar to HDMI, but has a different connector more common on PCs than TVs. It still allows for high-definition video and, in many cases, audio, but its standards are a bit different. On modern monitors, you'll likely find any of the following:
- DisplayPort 1.2: Supports up to 4K at 60Hz, some 1.2a ports may also support AMD's FreeSync
- DisplayPort 1.3: Supports up to 4K at 120Hz or 8K at 30Hz
- DisplayPort 1.4: Supports up to 8K at 60Hz and HDR
So, What’s the Difference
HDMI, recently revised to version 2.1, is capable of supporting bit rates up to 48Gbps. VESA even more recently announced DisplayPort 2.0, which can handle raw throughput up to 80Gbps. Both standards support HDR (High Dynamic Range), with its wider brightness and color gamuts, but HDMI 2.0x only supports static metadata (HDR10), while HDMI 2.1 and DisplayPort 1.4a/2.0 both support dynamic metadata (HDR10+, etc). HDMI and DisplayPort handle 192Hz/24-bit audio.
- HDMI connectors have 19 pins and are most commonly seen in three sizes: Type A (standard), Type C (mini), and Type D (micro). Of these, Type A is what you’ll find on TVs, Blu-ray players, soundbars, and PCs so that's where we will focus
- HDMI has two 45 degree angles, one on each side (See Image)
- HDMI cables usually have "HDMI" written on them somewhere

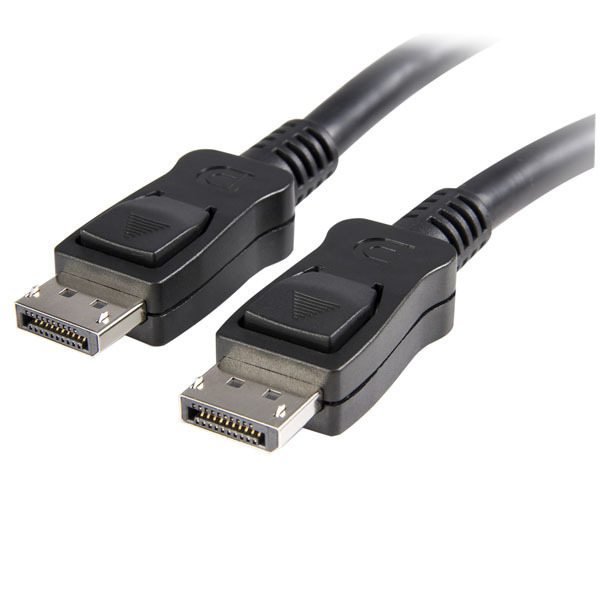

- DisplayPort connectors have 20 pins and are available in two sizes: DisplayPort and Mini DisplayPort. DisplayPort is found on TVs, Blu-ray players, soundbars, and PCs so that's where we will focus
- DisplayPort has a single 45 degree angle on one side (See Image)
- DisplayPort has a locking mechanism to secure the cable into it's corresponding port
- DisplayPort cables usually have "DisplayPort" or "DP" written on them somewhere
Connecting to a Monitor
When connecting your system to your monitor you need to make sure your cable matches the corresponding port. In the image below you will see the following ports:
Note the differences in size/orientation. If you try to force the wrong connection you're gonna have a bad time. 🙂
Many modern motherboards include HDMI and DisplayPort (Motherboard) which is great if you don't use a dedicated Graphics Card (Video Card). Refer to the image below to determine exactly where you will find the connections you need. If you ordered a dedicated GPU and your system includes motherboard connections, we cap them if we can so don't remove the caps. If you did not order a dedicated GPU then you can use the Motherboard connections.
Single Monitor Problems
If you are setting up your system for the first time there are some issues you might encounter. It's always important to verify all components are working before hooking them up. If Puget provided it, you're usually good to go since we perform such extensive testing, benchmarking, stress-testing and quality control before shipping it out. If there is anything you picked up elsewhere it's good to do a check and make sure it's working on another machine to be sure it's operational.
Monitor is blank after starting computer.
- Check that the monitor has power and the lights are on
- Double check cabling to make sure you're using the right input/outputs
- Remove any adapters from the equation if possible
- Remove additional monitors and try just one at a time
- Remove all peripherals and attempt to boot system with just the basics: Keyboard/Mouse, 1 monitor, power
- Unplug the monitor for 20-30sec then plug it back in
The words on the monitor are too small and unreadable.
- You will need to adjust the monitors resolution. Right click the desktop and select Display Settings then scroll down and adjust the screen resolution, select one and see if that improves it
Microsoft also includes a scaling feature which allows you to adjust size of text, apps, and other items system-wide.
The picture on the monitor is stretched, too bright/dark, or is not the way you like it.
- You will need to check the monitor settings. Look for a button on the bottom of the monitor which will open a menu to change monitor settings
- Find the default settings and return the monitor to default settings
- Use the vertical and horizontal settings to center the image and stretch to your liking
- Set the brightness and contrast to your liking
- Set the hue and locate the point where the colors on the screen look accurate or life-like
- If the settings do not improve the image display, the monitor may be going bad
The display is rotated.
- Right click the desktop and select Display Settings then scroll down and adjust the 'Display Orientation' section to match the monitors current orientation
The dreaded 'No Signal'
- Check the cables are plugged in correctly: It might sound obvious, but a loose cable can cause no signal errors more often than any other problem. If they do seem well secured, unplug and plug them in again just to be sure
- Make sure you’ve selected the right input: Monitors with multiple input options need you to select which cable you’re using. Use the buttons on your monitor to make sure that you’ve selected the same one as the cable you’re connecting to it (HDMI, DisplayPort, DVI)
- Change data cable: If you’re using an older cable standard like VGA or DVI-D, you might want to try a newer alternative like HDMI or DisplayPort. You can also just try using another cable of whatever standard you’re using in case there was a problem with that particular cable
- Change graphics port: If you’re using a dedicated graphics card with multiple output ports, try swapping which one you use. Sometimes ports themselves can be damaged and switching to another is all you need to do to correct it
Duplicate or Extended
There are a few different ways to display content on two screens, but “Duplicate” is often the default. If yours is just showing a copy of what’s on your main screen and you’d rather it acted more like an extension of it, here’s how to change it.
- Press Windows key + “P” to bring up the “Project” menu
- Select “Extend,” either by clicking it with your mouse, going up or down with the arrow keys and pressing Enter on the right one, or pressing Windows key + P to cycle through options
Alternatively, you can right-click the desktop and select “Display Settings,” and use the drop-down menu at the bottom of the window to choose your preference under the “Multiple Displays,” heading. That way you can also adjust which monitor appears on the left and which is on the right by dragging and dropping the numbered displays at the top of the window
Additional monitors not detected
- Use Windows’ detect tool: It may be that Windows hasn’t recognized that a second display is connected. To force it to check, right-click the desktop and select “Display Settings,” from the menu that appears. In the Display Settings window, click the “Detect” button
- Turn the screen off and on again: Some connection types don’t like hot swapping while a monitor is powered on. Turn the display off and then on again. That may be all it needs to recognize the video feed and start displaying it correctly
- Update your drivers: Although Windows 10 supports multiple monitors by default, your set up may not for some reason or another. Making sure you’re running the latest graphics drivers for your system can sometimes fix problems with no signal errors
Additional resources can be found in our 'Setting up multiple monitors in Windows 10' article, check it out!
