Unreal Engine: Intel Core i9 12900KS Performance

Written on April 5, 2022 by Kelly Shipman
Share:

TL;DR: Intel Core i9 12900KS performance in Unreal Engine

The new 12900KS only offers a few percent faster performance than the 12900K for roughly 20% more cost. The main consideration is what is your primary concern? If it is shader compile times, then the base 12900K offers the same performance. If it is code compile or light baking, then AMD’s Ryzen 9 5950X is faster.

Introduction

When Intel launched their 12th Gen Intel Core desktop processors (code-named "Alder Lake") in November of 2021, they showed a terrific performance improvement over previous generations. They also made some significant changes to how their CPUs fundamentally worked, primarily through their hybrid architecture which utilizes a mix of Performance and Efficient-cores.

Since then, the wider availability of DDR5 memory and improvements in thread scheduling has allowed them to expand their performance lead over AMD in a number of workflows. And today, Intel is launching yet another model to their 12th Intel Core lineup: the Intel Core i9 12900KS.

Intel Core i9 12900KS for Unreal Engine

On paper, the 12900KS appears to simply be a higher binned version of the Core i9 12900K. It has the same number of cores and the same cache, but the frequency is slightly higher. The exact amount depends on which kind of core is being used as well as what type of Turbo, but at most we are looking at about a 6% increase in Turbo frequency.

To handle the higher frequency, the 12900KS has a slightly higher base power draw of 150W versus the 125W of the 12900K. Interestingly, the maximum Turbo power is the same at 241W, which means that it may not actually run much hotter under heavy load situations.

The last difference is, of course, the price. With an MSRP of $739, the 12900KS is $140 more expensive than the 12900K. This is still a bit below the $799 MSRP of the AMD Ryzen 5950X, but it certainly brings Intel and AMD closer in terms of pricing at the top of their consumer CPU lines.

CPU Model Core i9 12900K Core i9 12900KS
Total Cores/Threads 16/24 16/24
Performance Cores 8 8
Efficient Cores 8 8
Max Turbo Frequency 5.2 GHz 5.5 GHz
P-Core Max Turbo Frequency 5.1 GHz 5.2 GHz
E-Core Max Turbo Frequency 3.9 GHz 4.0 GHz
Cache 30 MB 30 MB
Processor Base Power 125 W 150 W
Maximum Turbo Power 241 W 241 W
MSRP $599 $739

In this article, we will be examining the performance of the new Intel Core i9 12900KS compared to the 12900K, as well as the AMD Ryzen 5900X and 5950X. If you are interested in how these processors compare in other applications, you can check out the summary of all our testing results - and links to more detailed analysis - in our Intel Core i9 12900KS Review Roundup article.

Computer System

Looking for an Unreal Engine Workstation?

Puget Systems offers a range of powerful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Technician talking with customer

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!

Test Setup

Listed below are the specifications of the systems we will be using for our testing:

12th Gen Intel Core Test Platform
CPU Intel Core i9 12900KS 8+8 Core ($739)
Intel Core i9 12900K 8+8 Core ($589)
CPU Cooler Noctua NH-U12A
Motherboard Asus ProArt Z690-Creator WiFi
RAM 2x DDR5-4800 32GB (64GB total)
AMD Ryzen 5000 Series Test Platform
CPU AMD Ryzen 9 5950X 16 Core ($799)
AMD Ryzen 9 5900X 12 Core ($549)
CPU Cooler Noctua NH-U12S
Motherboard Gigabyte X570 AORUS ULTRA
RAM 4x DDR4-3200 16GB (64GB total)
Shared Hardware & Software
Video Card NVIDIA GeForce RTX 3080 10GB
Hard Drive Samsung 980 Pro 2TB
Software

Windows 11 Pro 64-bit (2009)
Unreal Engine 4.26

Visual Studio 2019

*Latest drivers, OS updates, BIOS, and firmware as of March 31st, 2022

In order to see how the new Intel Core i9 12900KS performs in Unreal Engine, we will be comparing it to the Core i9 12900K, AMD Ryzen 5900X, and AMD Ryzen 5950X. For the test itself, we will be using the Unreal Engine 4.26 and Visual Studio 2019.

As for the test platforms, we want to point out that due to the wider availability of DDR5 RAM, all our testing is now using DDR5 on any platform that supports it (currently just Intel Z690). We try to stay within spec for memory speed whenever possible, which is why we are using 2x32GB of DDR5-4800 RAM on the Intel platform. While the move to DDR4 to DDR5 can improve performance by a decent margin, the speed of the RAM speed doesn't make a big difference in most content creation applications. If you want to read more about the impact of DDR5 RAM speed, we recommend checking out our Impact of DDR5 Speed on Content Creation Performance article.

Code Compile Results

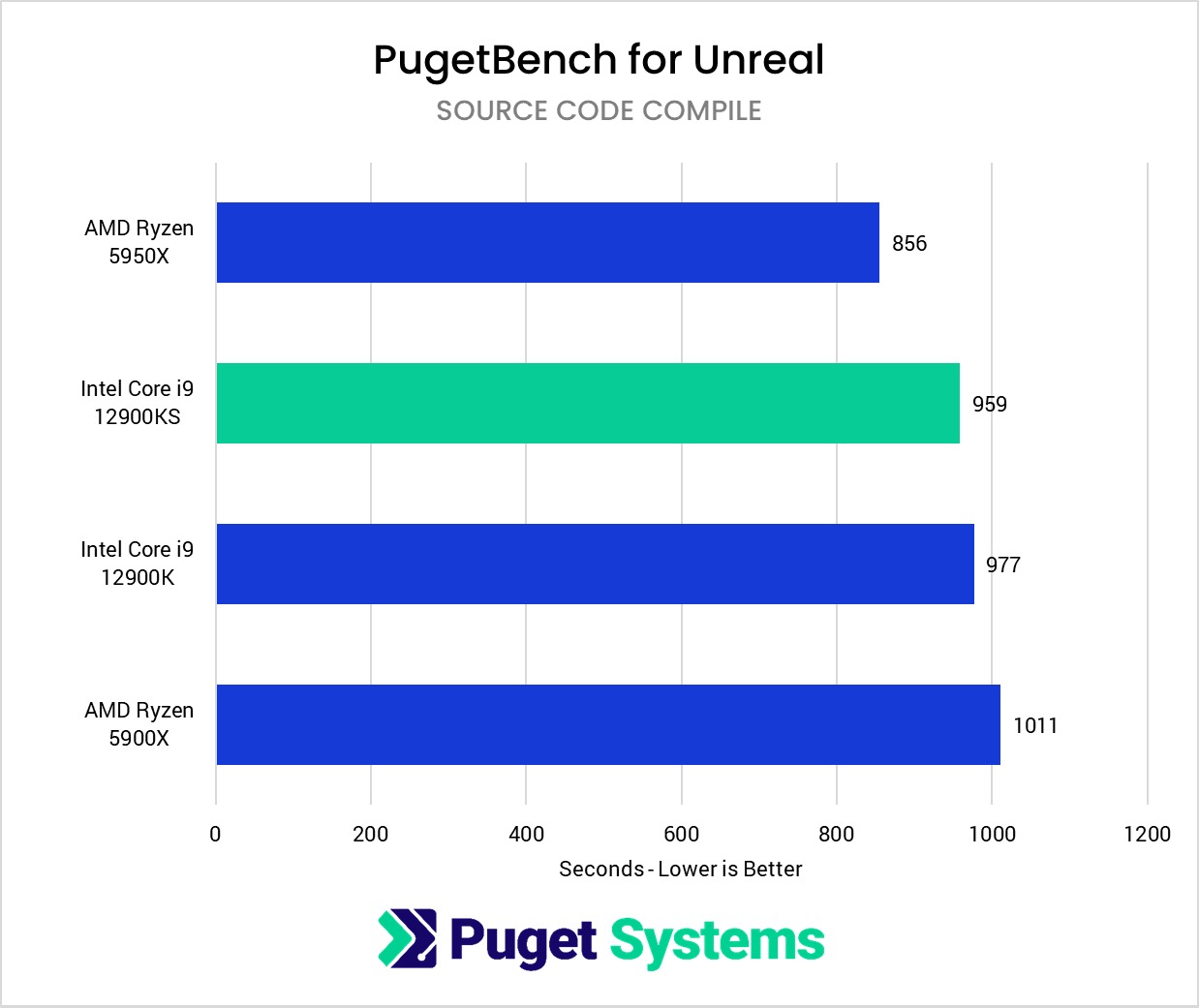

Compile times in Visual Studio 2019

The new Intel 12900KS was only able to compile the engine 2% faster than the 12900K. Not the best return on investment. Compiling the engine source code in Visual Studio 2019 still favors the AMD Ryzen 9 5950X.

Build Lighting Results

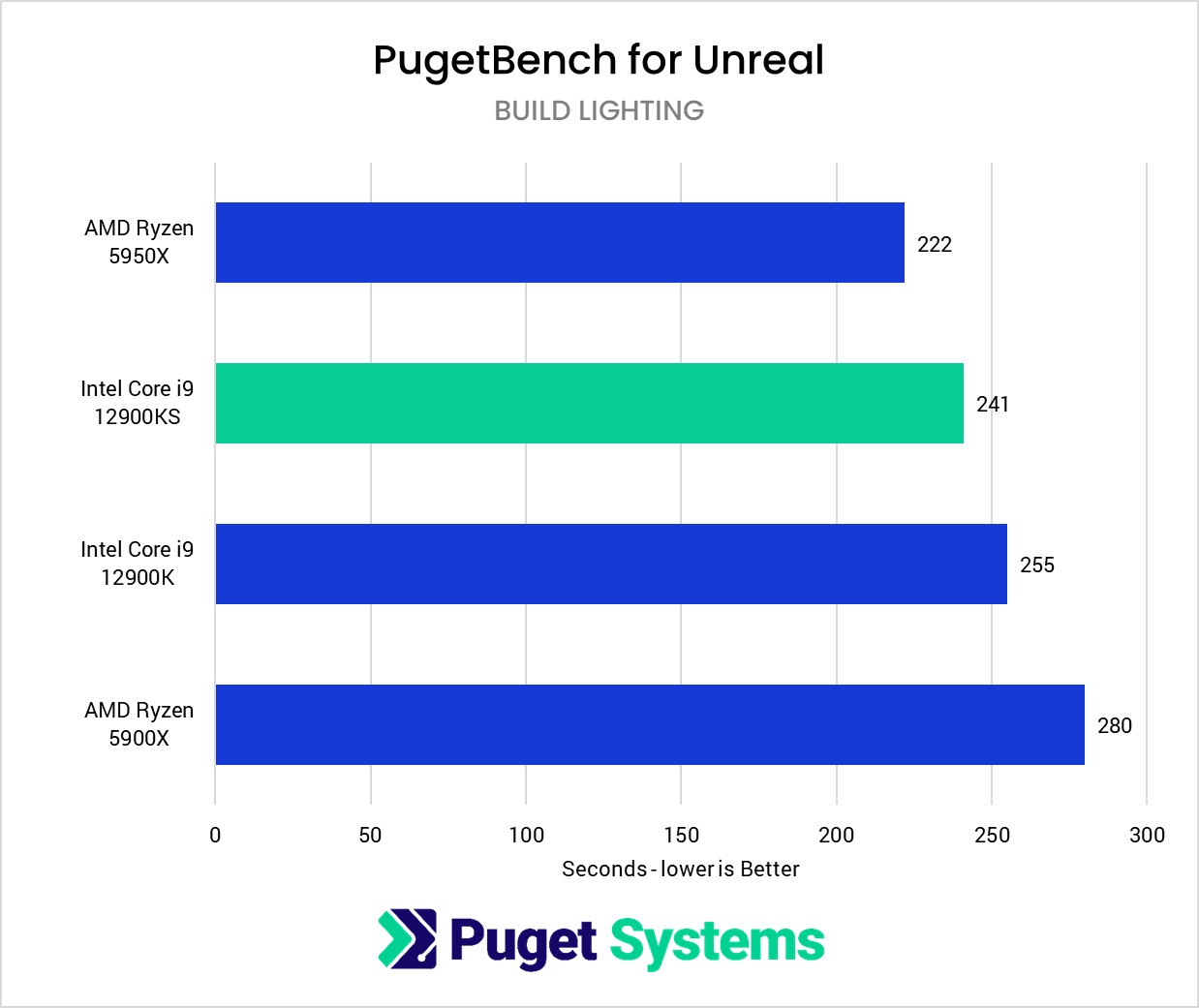

Build Lighting results for Intel 12900KS

Light baking is still a very integral part of game development and ArchVis. While GPU lightmass has greatly improved and looks to be the future of this process (not to mention the real-time improvements of UE5’s Lumen) CPU based light baking is still part of many users’ workflows. The 12900KS does show a roughly 5% gain over the 12900K but still lags behind the 5950X by about 8%.

Compiling Shaders Results

Unreal Engine Shader Compile times for Intel 12900KS

Compiling shaders is something that everyone working with Unreal has to contend with. Some only have to wait for a few shaders to compile ever once in a while, others see thousand on a regular basis. Because this is a lot of small tasks that can happen in any order, it lends itself to high core count CPUs. As we saw in our review for the 12900K, this is a test that does favor Intel, likely due to the newer and faster DDR5 RAM it is using.

Unfortunately, the 12900KS failed to make any noticeable improvement over the 12900K, but it does still lead AMD’s best offering by roughly 12%.

Overall CPU Performance

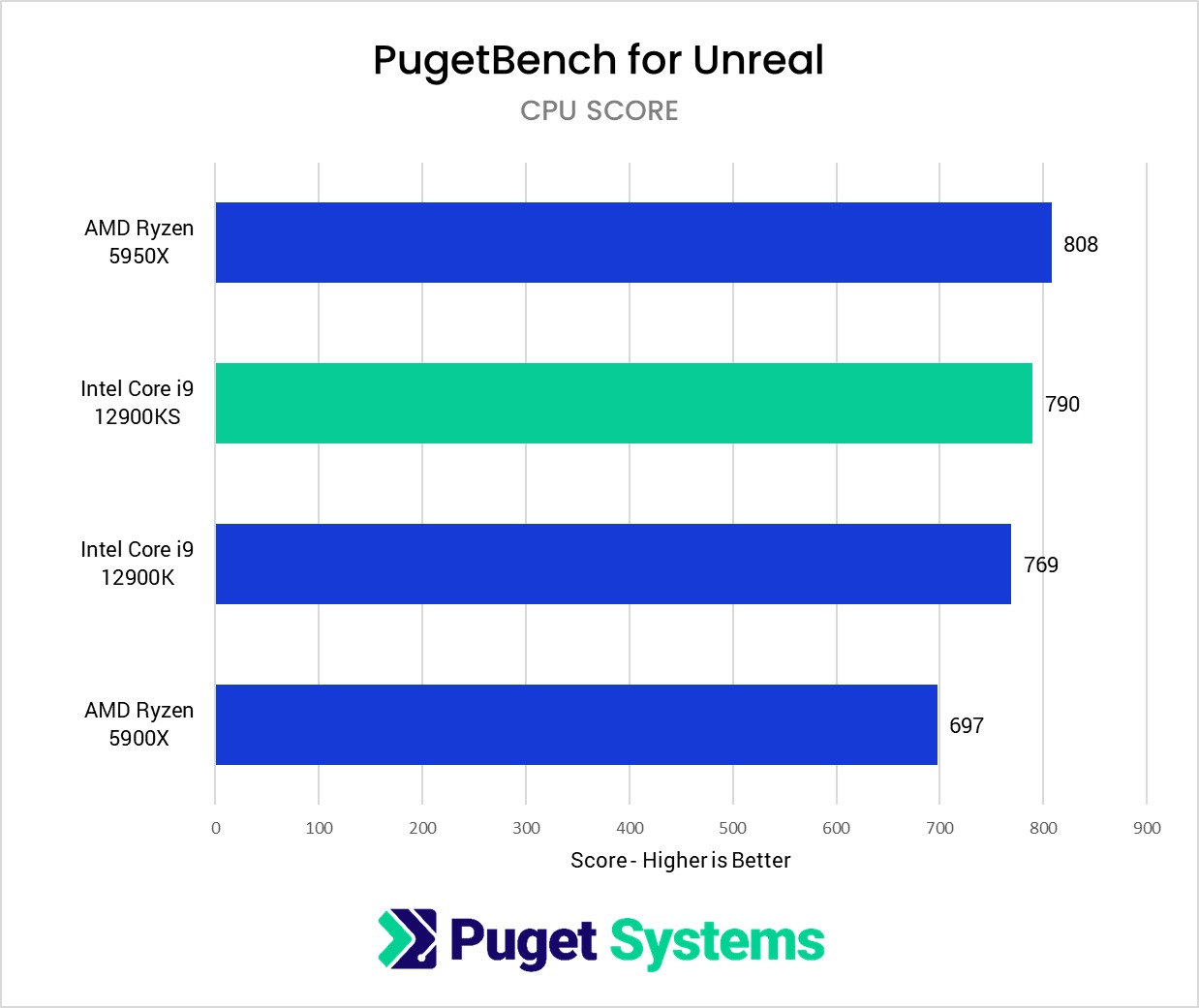

Unreal Engine CPU Score for Intel 12900KS

Averaging the three tests, the Intel Core i9 12900KS give around 2.5% better performance than the existing 12900K. The exact difference a user will notice depends on where they spend most of their time. The biggest difference is seen in Building Lighting. However, if you’ve migrated to GPU Lightmass, there isn’t much to be gained for the extra $150.

Is the Intel Core i9 12900KS Processor Good for Unreal Engine?

As we noted in the previous review of Intel’s 12th generation CPUs, they have made significant gains in performance in professional applications such as Unreal Engine. Many of the cumbersome tasks in Unreal engine prefer high core counts and tend to fair better on Threadripper systems. However many users don't want that high cost or need the higher single-core performance for their 3d modeling applications, or motion capture software. For these users, Intel’s 12th generation CPUs are attractive. However, the new 12900KS only offers a few percent faster performance for roughly 20% more cost. The main consideration is what is your primary concern? If it is shader compile times, then the base 12900K offers the same performance. If it is code compile or light baking, then AMD’s Ryzen 9 5950X is faster.

Going into our testing, we were a bit worried about the higher base power draw of the 12900KS, but throughout our testing, we didn't notice any issues. Our standard 120mm Noctua heatsink was still more than enough to keep this CPU cool, and there was no noticeable increase in fan noise.

Keep in mind that the benchmark results in this article are strictly for V-Ray and that performance will vary widely in different applications. If your workflow includes other software packages (we have similar articles for a number of other applications that can be found in our Intel Core i9 12900KS Review Roundup article), you need to consider how the system will perform in those applications as well. Be sure to check our list of Hardware Articles to keep up to date on how all of these software packages - and more - perform with the latest CPUs.
