Introduction

As a custom computer provider, Puget Custom Computers fills a niche market -- some of the most popular computers we sell are computers that not a lot of other companies will dare to build. The two requests we hear most often is that the computer be fast, and that it be quiet. Unfortunately, that's a tough mix! As manufacturers continue to release faster (and hotter) products, their only way to adequately cool those products without bigger and louder fans is to use more advanced cooling technologies. When it comes to building these high end computers, there is no room for cutting corners, and even a component like thermal paste can make a significant difference. When we set out to investigate all the different thermal pastes out there, we were surprised to not find a comprehensive comparison of modern products...so we decided to run our own tests! In this article, we will compare the performance of the top rated thermal pastes, so that you can make informed decisions about what will go into your next computer system!

Thermal Pastes Used

We started by searching for the most popular high end products. The list we settled on was:

Arctic Silver Ceramique
Nanotherm PCM+ (phase change)
Shin-Etsu Micosi
Nanotherm Silver Xtc
Arctic Silver 5
Arctic Alumina
Thermalright Generic

Note that the Thermalright paste we tested came bundled with a Thermalright XP-90 heatsink, and we intended to give us a rough idea of what the performance of the more generic products was like.

Notes

We applied the thermal paste according to manufacturer instructions. The only exception to this was that Arctic Silver recommends running the machine up to 200 hours for the compound to "break-in" and achieve full cooling effect. In the interest of time, we did not follow this step.

It is of interest to note that the way in which we applied the thermal paste seemed to make little difference. It is well known that the best application of the paste is a thin layer -- as thin as possible while maintaining full coverage and contact. We conducted two tests of Arctic Silver Ceramique. In the first test, we spread the paste evenly in a thin layer. In the second test, we placed a bead of compound in the center of the CPU, allowing the pressure of the heatsink to cause it to spread to the rest of the chip. Both types of application ended up giving the same temperatures in our tests.

We also noted that the Nanotherm PCM+ paste had a watery consistency that made it more difficult to spread evenly. It is supplied with a rubber finger for application.

System Specs

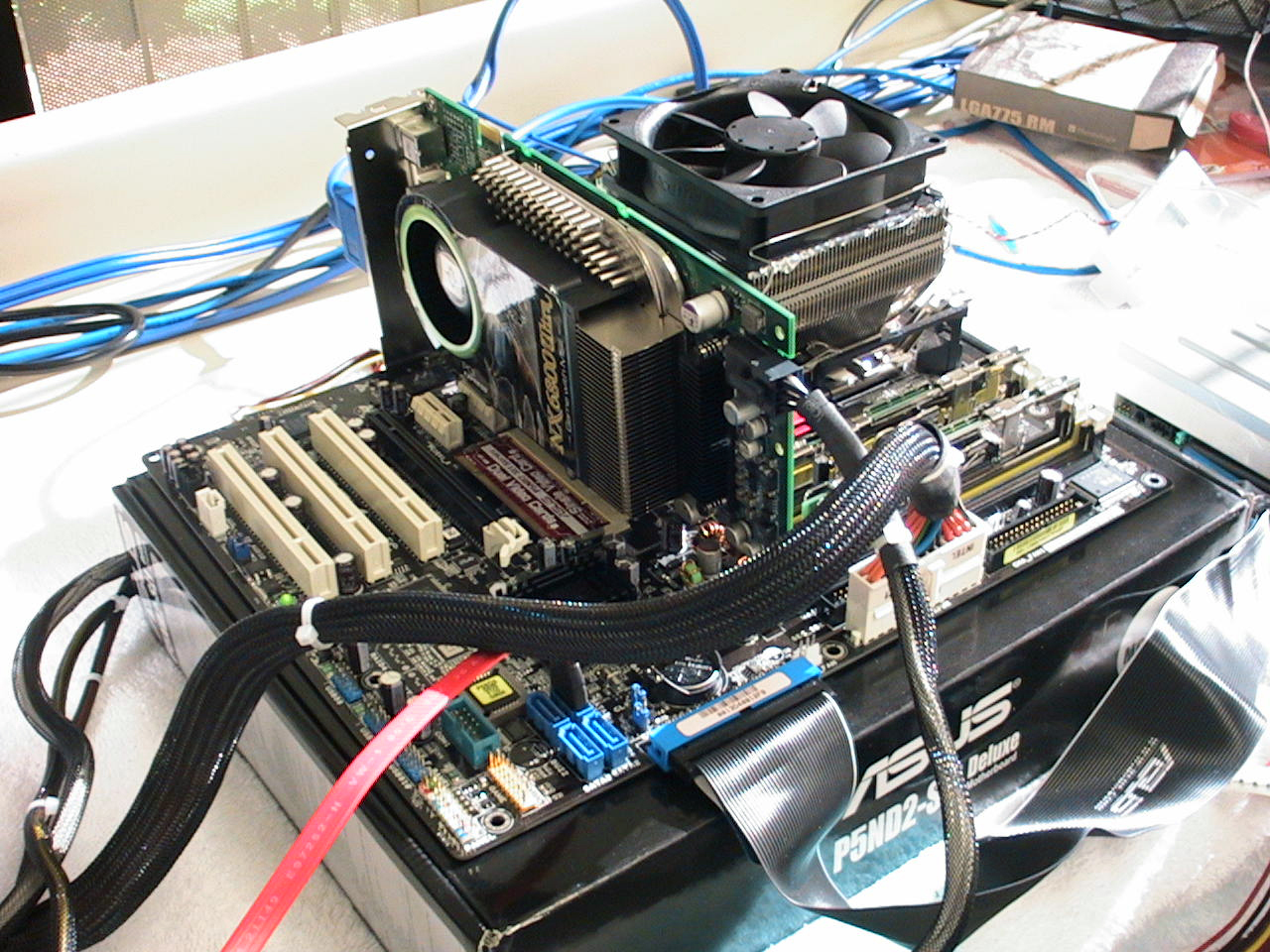

For our measurements, we used a high end setup on an open bench.

Asus P5ND2-SLI
Intel Pentium4 (775) 3.46 GHz 1066 FSB EE
Thermalright XP-90 Heatsink
Papst 92mm 1950RPM 23dB 35.9CFM
OCZ PC2-5400 Platinum EB DC 2x1024MB
PC Power & Cooling 850W
Western Digital SATA Raptor 74GB
XFX GeForce 6800 Ultra 256MB PCI-E
Lite On 52/32/52 CD-RW (black)

Asus P5ND2-SLI BIOS Version 0506
Nforce driver was taken off the Asus CD
Forceware driver version 71.89
Windows XP SP2 w/ all updates

Test Process

This system was run with no background tasks or processes. For our idle measurements, we left the system on the desktop. For load measurements, we ran Prime95. Since Prime95 is not capable of using multiple processors, hyperthreading was disabled on the system. All readings were taken after allowing the temperatures to stabilize for half an hour. Temperature readings were taken with Asus Probe 2. We found it to record temperatures about 3C lower than readings taken with a separate thermal probe, but since all of our readings were done in the same way, we did not regard this as an issue. Readings of the ambient temperature were taken at the same time as every other measurement, and we have adjusted our results to a baseline ambient temperature of 23C. For reference, our full dataset is also provided at the bottom of this review.

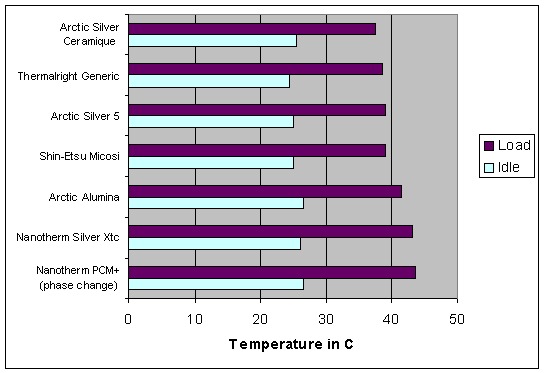

Test Results

 IdleLoad
Arctic Silver Ceramique25.5C37.5C
Thermalright Generic24.5C38.5C
Arctic Silver 525C39C
Shin-Etsu Micosi25C39C
Arctic Alumina26.5C41.5C
Nanotherm Silver Xtc26C43C
Nanotherm PCM+ (phase change)26.5C43.5C


Conclusion

It was surprising to find the generic paste as one of the better performers. Thermalright must bundle some good stuff with their heatsinks! We were happy to see the Arctic Silver Ceramique perform so well -- we use it on a lot of our builds!



Full dataset:

Thermal Paste TypeAmbientIdleLoadIdle AdjLoad Adj
Arctic Silver Ceramique24.527392537
Nanotherm PCM+ (phase change)20.524412643
Shin-Etsu Micosi21233724.538.5
Nanotherm Silver Xtc22254225.542.5
Arctic Silver 524264024.538.5
Arctic Alumina24.528432641
Thermalright Generic25.527412438


(Ambient temp adjusted to 22.5C for adjusted values.)

japroach

30 mins is not enough for testing imo.

I know its tedious but it needs an hour or two at full load to settle in.

In some cases it takes longer, some of the shin etsu for example should reach its baseline temperature after 24-48hrs.

http://www.madshrimps.be/print...

Thats the first example I found, they use a burn in time of up to 12-72hrs (its not quite clear, not exactly a great example). and a paste based on shin etsu (there are various formulas).

Posted on 2005-06-01 19:55:04

Yeah, I've heard a few people say that. I'd be very interested to see if anyone has tried running a machine for all 300 hours and taken hourly measurements to see if it really does get better with time. When it comes to the physics principles, I can see how it might make a small difference, but I can't imagine it being very big.

Posted on 2005-06-01 19:59:58
