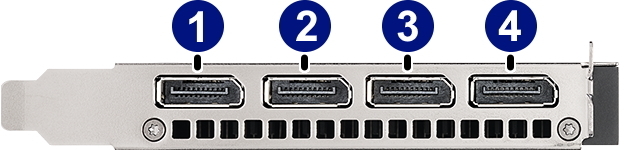

AMD Radeon Pro W7600 8GB Ports
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.

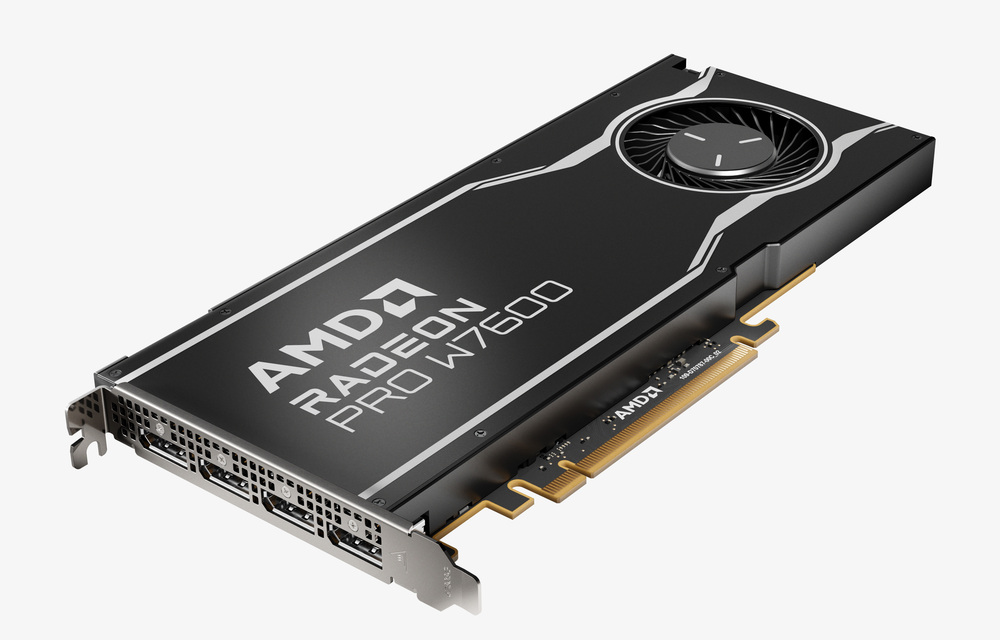

AMD's Radeon PRO W7600 is a mid-range, pro-grade video card. It is a single-slot card offering decent 3D performance, certified drivers for many applications, and support for multi-display situations thanks to four separate video outputs. It is a great option for modest CAD usage and design professionals who value price-to-performance.
As described above, this card has four DisplayPort 1.4a connections. Adapters to HDMI can be purchased separately if needed, but may impact the maximum per-screen resolution.
As described above, this card has four DisplayPort 1.4a connections. Adapters to HDMI can be purchased separately if needed, but may impact the maximum per-screen resolution.
Model: AMD 100-300000077
Specifications
| Chipset Manufacturer | AMD |
| Product Line | Radeon Pro |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 4.0 x8 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Stream Processors | 2,440 |
Memory Specifications | |
| Video Memory | 8GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 128-bit |
| Bandwidth | 288 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 20 Tflops |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 11 |
| OpenGL Support | 4.5 |
| Slot Width | 1 |
Outputs | |
| Port 1 | DisplayPort 1.4a |
| Port 2 | DisplayPort 1.4a |
| Port 3 | DisplayPort 1.4a |
| Port 4 | DisplayPort 1.4a |
Dimensions | |
| Length | 241 mm (9.5 in) |
| Net Weight | 0.568 kg (1.3 lbs) |
Warranty
3 Years
