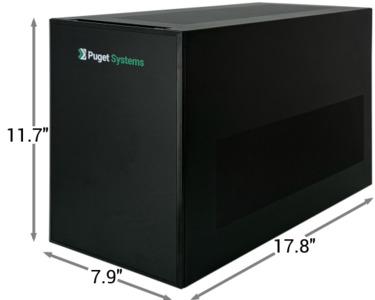

System Dimensions
System Ports

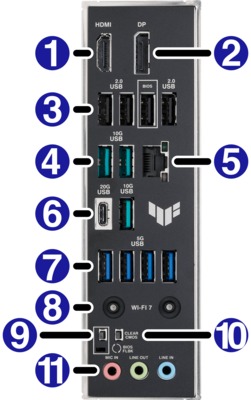

Back Ports:
- HDMI 2.0b Out Port
- DisplayPort 1.4 Out Port
- Clear CMOS Switch
- USB BIOS Flashback Button
- BIOS Flashback LED
- USB 2.0 Port(s)
- USB 3.2 Gen 1 (USB 3.0) Port(s)
- USB 3.2 Type C Port(s)
- USB 3.2 Gen 2×2 Type C
- USB 3.2 Gen 2 (USB 3.1) Port(s)
- 2.5G LAN (RJ45)
- WiFi Antenna Connector
- Optical S/PDIF Out
- Audio Jacks

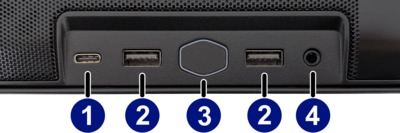

Front ports:
- Reset Switch
- Front Headphone Jack
- Front Microphone Jack
- USB 3.2 Type C Port(s)
- Power Switch
- USB 2.0 Port(s)
- USB 3.2 Gen 1 (USB 3.0) Port(s)
If you need smooth and responsive performance for general modeling, this system – built around Intel’s Core i7 and i9 CPUs – is ideal for the vast majority of CAD tasks. It is configurable with up to 128GB of RAM (which is much more than enough for all but the largest and most complex assemblies), a range of NVIDIA video cards, and multiple storage options.
For connectivity this system has several USB ports, including some USB Type C. Wired and wireless networking are also built-in, along with analog and digital audio.
Need help configuring the system to match your needs? Feel free to contact one of our sales consultants for assistance!
