Adobe Premiere Pro: 11th Gen Intel Core vs AMD Ryzen 5000 Series

Written on March 30, 2021 by Matt Bach
Share:

TL;DR: 11th Gen Intel Core vs AMD Ryzen 5000 Series Processors for Premiere Pro

Depending on your budget, the new 11th Gen Intel Core processors range from being slightly ahead, to slightly behind AMD's current Ryzen offerings. At the i5 and i7 level, the Core i5 11600K and Core i7 11700K cost a bit less than the Ryzen 5600X and 5800X respectively but perform within a handful of percent. This, with the advantage of supporting Quick Sync, puts Intel in a small lead.

The Core i9 11900K, on the other hand, performs about the same as the Core i7 11700K, making it a bit more expensive and slower than the Ryzen 5800X, or 14% slower than the more expensive Ryzen 5900X.

Overall, we would say that Intel has a slight lead for Premiere Pro at the sub-$400 range with the i5 11600K and i7 11700K, but the difference is so small that you could go with AMD if you wanted to without giving up too much. Above the $400 MSRP mark, however, AMD is likely going to be the better choice with their AMD Ryzen 5900X or 5950X.

Introduction

Earlier this month, Intel announced their new 11th Gen Intel Core desktop processors (code-named "Rocket Lake"). These new processors are marketed as having substantially better per-core performance compared to their previous 10th Gen Core models, but the top-end model (the Core i9 11900K) has two fewer cores than the previous generation which may hamper performance in some applications.

Going into our testing, we were not quite sure how these CPUs would end up performing. Intel is boasting up to a 19% IPC performance improvement over the previous generation which should considerably improve performance in lightly threaded applications, but the maximum number of cores has been reduced from 10 to 8. We will have to see what that works out to in the real world, but in theory, it should make the 11th Gen CPUs terrific in lightly threaded applications like Photoshop and After Effects, but they may struggle in applications like Premiere Pro which can take advantage of a decent number of CPU cores.

If you want to read about what sets these CPUs apart in more detail, we recommend checking out our landing page for the 11th Gen Intel Core Processors.

11th Gen Intel Core Processors for Adobe Premiere Pro

In this article, we will be examining the performance of the new Intel Core i9 11900K, i7 11700K, and i5 11600K in Premiere Pro compared to a range of CPUs including the Intel 10th Gen and AMD Ryzen 5000 Series processors. If you are interested in how these processors compare in other applications, we also have other articles for After Effects, Lightroom Classic, Photoshop, DaVinci Resolve, and several other applications available on our article listing page.

If you would like to skip over our test setup and benchmark sections, feel free to jump right to the Conclusion.

Looking for a Premiere Pro Workstation?

Puget Systems offers a range of powerful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!

Test Setup

Listed below are the specifications of the systems we will be using for our testing:

11th Gen Intel Core Test Platform
CPU Intel Core i9 11900K ($513)
Intel Core i7 11700K ($399)
Intel Core i5 11600K ($262)
CPU Cooler Noctua NH-U12S
Motherboard Gigabyte Z490 Vision D
RAM 4x DDR4-3200 16GB (64GB total)
10th Gen Intel Core Test Platform
CPU Intel Core i9 10900K ($488)
Intel Core i7 10700K ($374)
Intel Core i5 10600K ($262)
CPU Cooler Noctua NH-U12S
Motherboard Gigabyte Z490 Vision D
RAM 4x DDR4-3200 16GB (64GB total)
AMD Ryzen 5000 Series Test Platform
CPU AMD Ryzen 9 5950X ($799)
AMD Ryzen 9 5900X ($549)
AMD Ryzen 7 5800X ($449)
AMD Ryzen 5 5600X ($299)
CPU Cooler Noctua NH-U12S
Motherboard Gigabyte X570 AORUS ULTRA
RAM 4x DDR4-3200 16GB (64GB total)
Shared Hardware & Software
Video Card NVIDIA GeForce RTX 3080 10GB
Storage Samsung 970 Pro 1TB
Software Windows 10 Pro 64-bit (2009)
Adobe Premiere Pro 2021 (15.0)
PugetBench for Premiere Pro (0.95.1)

*All the latest drivers, OS updates, BIOS, and firmware applied as of March 15, 2021

In order to see how the new 11th Gen Intel Core processors perform in Premiere Pro, we will be comparing them not only to the previous 10th Gen Intel Core CPUs but also to AMD's Ryzen 5000 series. For the test itself, we will be using our PugetBench for Premiere Pro V0.95.1 benchmark and Premiere Pro version 15.0. This benchmark version includes the ability to upload the results to our online database, so if you want to know how your own system compares, you can download and run the benchmark yourself.

As for the setup of our testing, there is a number of things we want to point out:

First, you will note is that we are using a Z490 motherboard for both the 10th and 11th Gen Intel CPUs. There is a newer Z590 chipset that is launching alongside the 11th Gen CPUs, but we, unfortunately, did not have access to a board early enough to make it into this article. We don't expect the chipset to make much of a performance difference, but we do plan on doing a set of Z490 vs Z590 tests in the near future to make sure our assumptions are correct.

Second, the power limit settings that the motherboard and CPU are using to determine what frequency to run the CPU at under load is extremely muddy with the 11th Gen CPUs. There is the Intel "stock" settings, but also what are essentially overclocked settings that allow the CPU to maintain higher turbo limits for longer periods of time in exchange for dramatically increased CPU power draw and temperatures. The idea is that these power limits allow systems that have sufficient cooling to run the CPU at faster speeds, but we still have a lot of work to do to determine exactly what power limits we feel are safe for our workstations. For now, we opted to stick with the default on the Gigabyte Z490 board we are using, which is to run with the higher power limits. This will give Intel a bit of a boost in terms of performance, however, which is worth keeping in mind when examining the results.

On the flip side, some of the 11th Gen CPUs also support a new technology called "Intel Thermal Velocity Boost" which allows the CPUs to run at a slightly higher clock speed than Turbo Boost 2.0 or Turbo Boost 3.0 (and yes, those are independent) based on the CPU temperature and power draw. This feature is still in beta, however, so we did not opt to use it in this round of testing. Just like Z590, we will be doing follow-up testing in the future to see if it will have any measurable impact on performance.

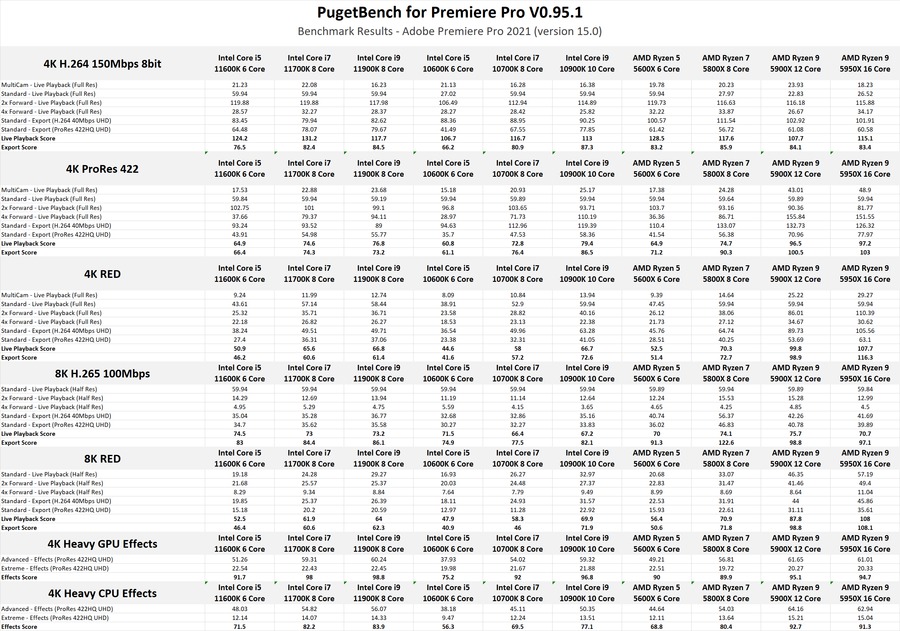

Benchmark Results

While our benchmark presents various scores based on the performance of each test, we also like to provide the individual results for you to examine. If there is a specific task that is a hindrance to your workflow, examining the raw results for that task is going to be much more applicable than the scores that our benchmark calculated.

Feel free to skip to the next sections for our analysis of these results to get a wider view of how each configuration performs in Premiere Pro.

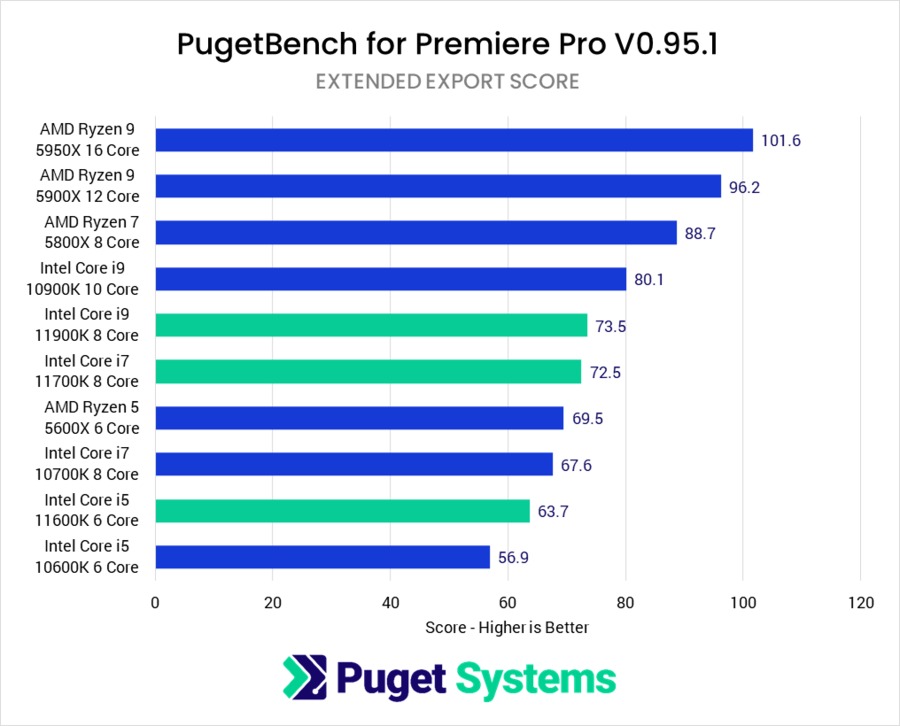

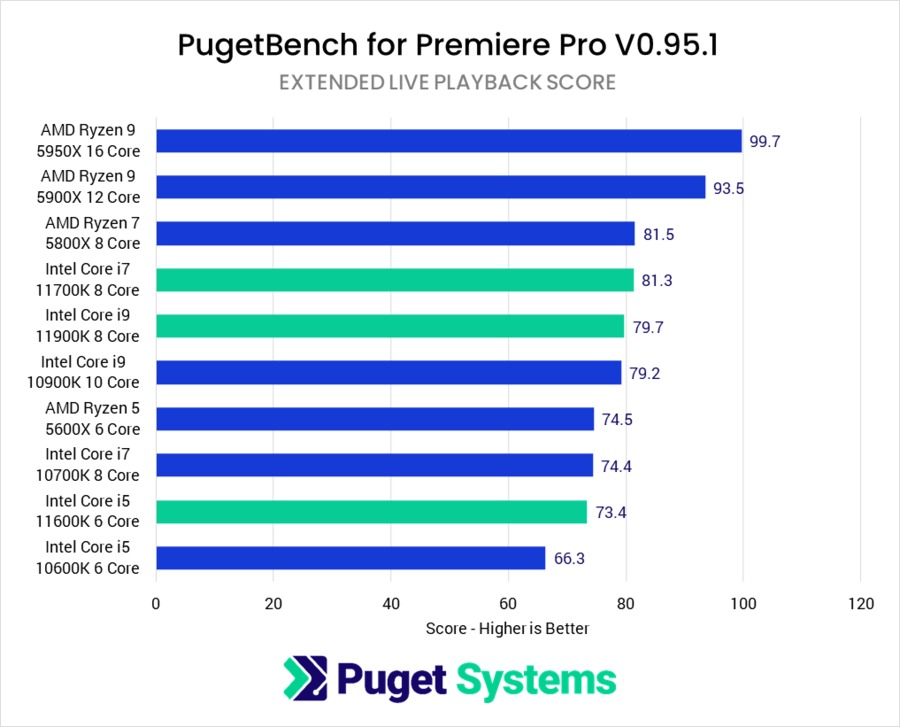

Premiere Pro Performance Analysis

Especially for the new Core i9 11900K (which dropped from 10 cores to 8), we weren't sure how the new 11th Gen CPUs would hold up in Premiere Pro since the number of CPU cores can have a measurable impact on performance. And in fact, it certainly seems to be a limiting factor as we saw nearly identical performance between the Core i7 11700K and the Core i9 11900K.

Compared to AMD, the difference in raw performance with the new 11th Gen CPUs is often extremely small. None of the Intel and AMD CPUs line up perfectly in terms of price, but the Core i9 11900K is the roughest spot for Intel as it falls behind the slightly less expensive AMD Ryzen 5800X by a small 4%, or behind the slightly more expensive Ryzen 5900X by a larger 16%.

Going a step down to the Core i7 11700K, however, Intel comes out significantly better. Here, the i7 11700K does still fall behind the Ryzen 5800X by about 4%, but since the 11700K is 12% less expensive, that performance delta is fairly decent. Even further down the stack, the Core i5 11600K is a bit less expensive than the Ryzen 5600X, but in terms of performance, the two CPUs are right about on par with each other which puts Intel in a slight lead for those on a tight budget.

One thing that isn't shown in our benchmarks is the fact that Intel does have a slight advantage over AMD due to the fact that the Intel Core line supports Quick Sync; which Premiere Pro can use to accelerate encoding/decoding of H.264 and H.265 media. You can use an NVIDIA or AMD GPU to accomplish the same thing (which is why this doesn't show up in our benchmark results), but being able to use Quick Sync can free up your GPU to be used for other tasks like processing GPU accelerated effects. In other words, if the benchmark performance between an Intel and AMD CPU is very similar, we would give Intel the edge purely due to Quick Sync.

Overall, compared to AMD this puts Intel a bit ahead at the i5 and i7 level, and either on par or slightly behind at the i9 level. This makes the 11th Gen CPUs a bit of a mixed bag, which we can clearly see if we look at the gen-over-gen performance:

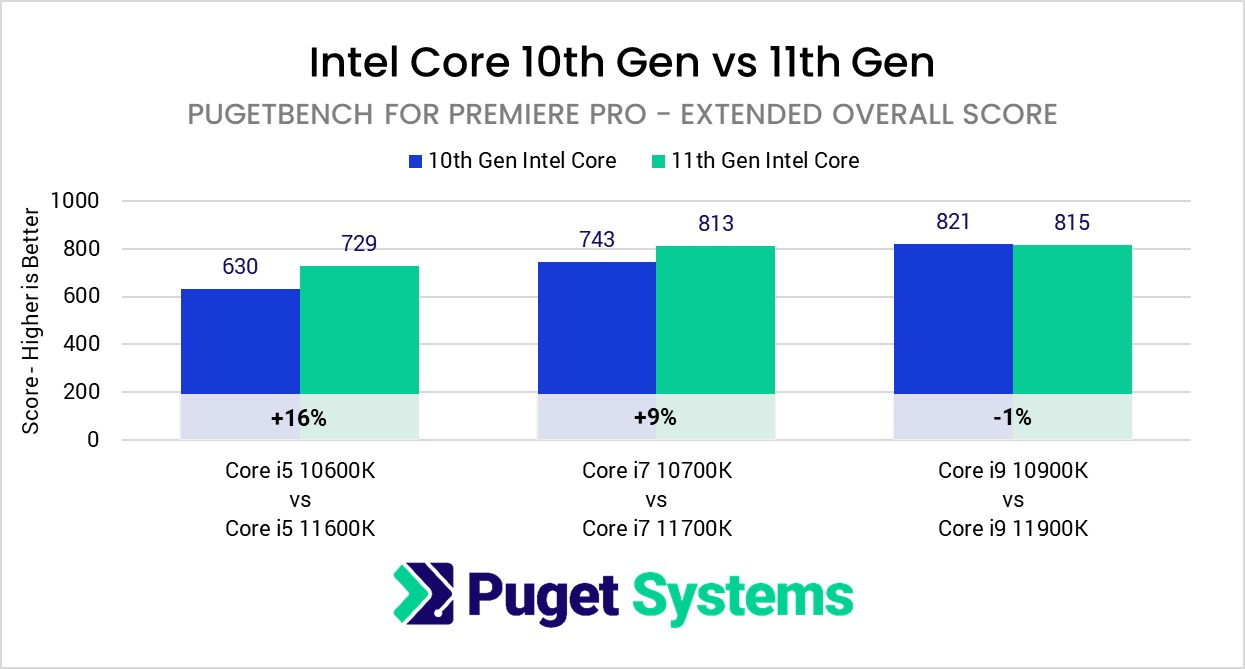

Intel Core 11th Gen vs 10th Gen in Premiere Pro

Versus the previous 10th Gen Intel Core processors, the i5 level by far saw the largest performance increase in Premiere Pro. This is great news for those on a tight budget since a 16% bump in performance is very solid for a processor that costs just a bit over $250.

The Core i7 11700K is also a good amount faster than the previous generation, although it only came in at about 9% faster than the Core i7 10700K. The big problem is the Core i9 11900K, which actually saw a slight drop in performance compared to the Core i9 10900K. This is about what we expected to see since even though the per-core performance improved with the new 11th Gen CPUs, the 11900K dropped from 10 cores to 8 - resulting in essentially identical performance in applications like Premiere Pro that can take advantage of higher CPU core counts.

Are the 11th Gen Intel Core Processors Good for Premiere Pro?

Depending on your budget, the new 11th Gen Intel Core processors range from being slightly ahead, to slightly behind AMD's current Ryzen offerings. At the i5 and i7 level, the Core i5 11600K and Core i7 11700K cost a bit less than the Ryzen 5600X and 5800X respectively, but perform within a handful of percent. The Core i9 11900K, on the other hand, performs about the same as the Core i7 11700K, making it a bit more expensive and slower than the Ryzen 5800X, or 14% slower than the more expensive Ryzen 5900X.

The one thing that gives Intel an additional advantage is the fact that they support Quick Sync; which Premiere Pro can use to accelerate decoding and encoding of H.264 and H.265 media. Especially at this budget level, H.264/5 is by far the most common type of media to work with, so being able to use Quick Sync to process the footage instead of the GPU frees up your video card for other tasks like processing GPU accelerated effects. It also allows you to squeeze out a bit more export performance than our benchmarks show since you can use Quick Sync to decode H.264/5 media, while using the GPU to handle the encoding side of things (or vice-versa).

Overall, we would say that Intel has a slight lead for Premiere Pro at the sub-$400 range with the i5 11600K and i7 11700K, but the difference is so small that you could go with AMD if you wanted to without giving up too much. Above the $400 MSRP mark, however, AMD is likely going to be the better choice with their AMD Ryzen 5900X or 5950X.

Keep in mind that the benchmark results in this article are strictly for Premiere Pro and that performance will vary widely in different applications. If your workflow includes other software packages (we have similar articles for After Effects, Lightroom Classic, Photoshop, and DaVinci Resolve), you need to consider how the system will perform in those applications as well. Be sure to check our list of Hardware Articles to keep up to date on how all of these software packages - and more - perform with the latest CPUs.

Looking for a Premiere Pro Workstation?

Puget Systems offers a range of poweful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!
Tags: i9 10900K, i7 10700K, i5 10600K, AMD Ryzen 5000-series, 5600X, 5800X, 5900X, 5950X, Premiere Pro, Intel 11th Gen, i9 11900K, i7 11700K, i5 11600K, Intel 10th Gen

Hello! What about H265 10 bit 4:2:2 decoding? I am a Canon R6 user and I would like to know if the new Intel generation hardware decoding works better with this kind of video files.

Posted on 2021-03-31 12:31:46

That's actually tough to say because hardware decoding with the various flavors of H.264/5 is not very clear or well documented. I believe that GPU decoding (with either NVIDIA or AMD) doesn't support H.265 4:2:2, but Intel Quicksync does. But, I'm not sure about 10-bit specifically since that isn't documented by Intel (or NVIDIA/AMD). And even if Quicksync does support it, that doesn't mean that Premiere Pro does, and I can't find any documentation about that either.

All the hardware decoding support is really a huge mess to be honest. I've had it on my to-do list to just source all my own clips across H.264/H.265, 4:2:0/4:2:2/4:4:4, and 8/10-bit, and test them with Quicksync/NVIDIA/AMD to see what actually works and what doesn't, but just haven't had the time.

Tell you what, if you can get me a ~15 sec clip from your camera (4K 59.94fps if possible) that we have permission to use for testing in the future, I'll load it on a system when I can and see how it performs with Quicksync and NVIDIA decoding. Just toss me an email at mattbach@pugetsystems.com

Posted on 2021-03-31 16:48:14

Thank you! Right now I don't film 4K, just FHD. I guess it should be ok, but I would like to know in case I try 4K later. Anyway, I will send you the footage as soon as I can and see how it works. I think there must be more Canon R5-R6 users with the same problem.

Posted on 2021-03-31 17:33:41
sspain20

How about XF-AVC Long GOP footage, like the new Canon C70 uses for all of it's slow motion stuff? Or even CinemaRaw Light? I'm more that likely going to upgrade my camera to either a C70 or C200 MK II once it's released right after I update my PC, and the processor I choose will really come down to which will perform best with the footage each one shoots respectively. Before now, Long GOP has been notorious for being choppy across all systems, so I'm wanting to know if the 11th Gen processors have solved this problem with Quicksync and if it will playback both it and CRL at full speed in full res, or would I have to wait for the 12th Gen stuff to possibly achieve that.

Posted on 2021-04-02 02:08:12

If it is 4:2:0 or 4:2:2, any of the latest Intel QuickSync, or NVIDIA/AMD GPU, should be able to handle hardware decoding for it. 4:2:2 is really the one confusing flavor. CinemaRaw Light I don't believe there is any form of GPU/QS decoding available, so it is all done on the CPU.

Unfortunately, it is impossible for us to constantly test every codec out there - there simply are too many different flavors for that to be feasible. We do, however, offer a service where you can send us some of your media/projects, and we can test it on a couple different hardware configurations to see how the performance would be on a new system: https://www.pugetsystems.co... . I believe up to a certain dollar amount, the fee can be put towards the cost of a new system if you purchase from us.

Posted on 2021-04-02 17:12:21
Pinnacle Studio 16

Uhd 50p XF-AVC Long GOP 4.2.0 from C200 does not decode on Nvidia Gpu 1080 in Premiere 14.8. This is with AMD 3900x procesor that decodes the files just fine but there are a couple o frames dropped here and there but not always. If you enable Shift+F11 you can see it.
I can sent you a video sample to try it on new procesors from Intel 11 gen. I may want to upgrade to 12 gen when it lands soon.
Also there is a problem when playback raw, after a short while i get a error messege "frame substitution".
The solution is to convert the raw in Davinci to Cineform or Dnxhr.

Posted on 2021-04-06 09:49:14
