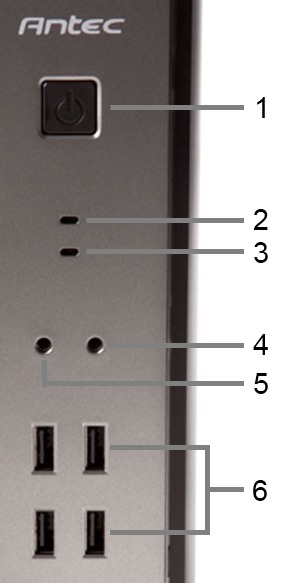

Antec ISK 110 VESA Ports
Power Switch: On/off button for the device.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
HDD LED: Light that turns on when there is drive activity.
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).

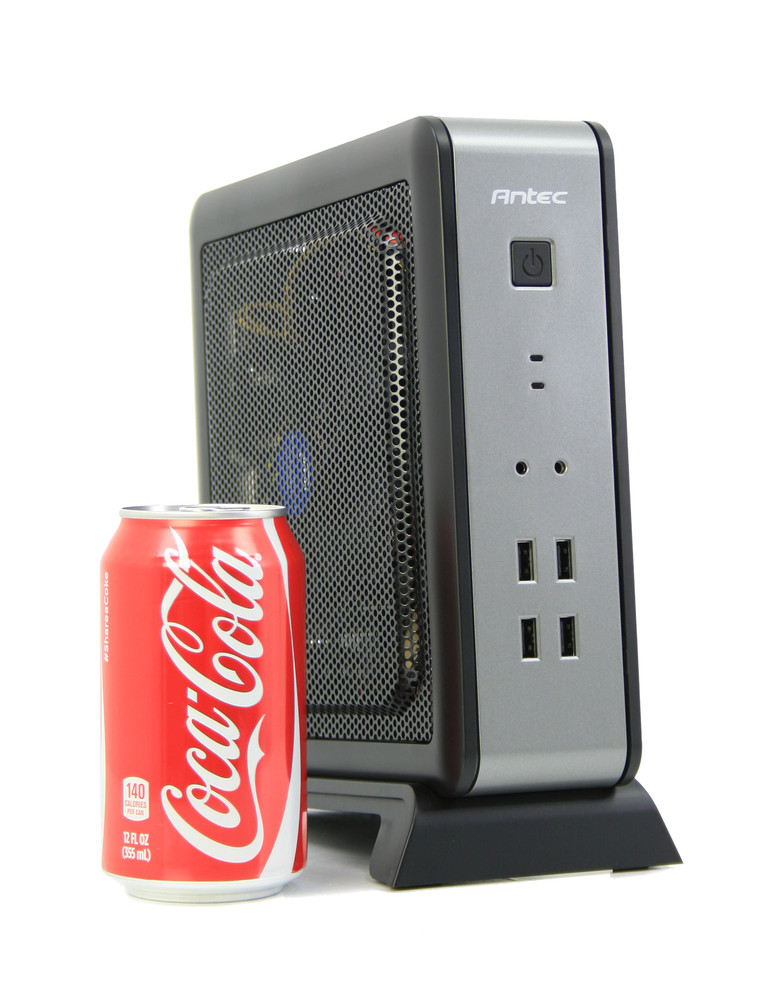

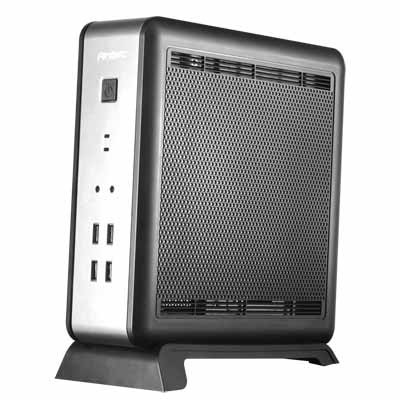

This slim chassis from Antec is designed for applications where size matters. It can house a mini ITX motherboard, along with dual 2.5" internal drives - but no expansion cards or optical drive. It has a mesh cover on one side to allow airflow around the motherboard and CPU fan, but the case itself does not have any active cooling.
It can be operated either horizontally (on it's closed side) or vertically on it's included stand. It also includes a mounting plate which can be used to attach it to the back of a monitor with a 50mm, 75mm, or 100mm VESA mounting pattern.
It can be operated either horizontally (on it's closed side) or vertically on it's included stand. It also includes a mounting plate which can be used to attach it to the back of a monitor with a 50mm, 75mm, or 100mm VESA mounting pattern.
Jeff Stubbers (Tier 3 Sales SME) Says:
This is a great small form factor case that we use in our Puget Echo configuration. This comes with a mount that fits VESA 50mm, 75mm, and 100mm, so you can mount this on a wall, or back of a monitor if you like. This case does not have enough room for an internal optical drive.
This is a great small form factor case that we use in our Puget Echo configuration. This comes with a mount that fits VESA 50mm, 75mm, and 100mm, so you can mount this on a wall, or back of a monitor if you like. This case does not have enough room for an internal optical drive.
Ruben Romero (Tier 3 Integration Lead) Says:
I like the idea of being able to mount the ISK 110 to the back of a monitor, TV, or any other VESA supported mount as a media streaming platform. The ISK 110 also has a small footprint which can help make it easier to fit in areas with limited space.
I like the idea of being able to mount the ISK 110 to the back of a monitor, TV, or any other VESA supported mount as a media streaming platform. The ISK 110 also has a small footprint which can help make it easier to fit in areas with limited space.
Model: Antec ISK 110 VESA
Specifications
| Color | Silver & Black |
| Material | Aluminum and plastic shell, steel frame |
| Type/Size | Small Form Factor |
| Maximum Motherboard Size | Mini ITX |
| Case Window | No |
| Power Supply | 90W |
Dimensions | |
| Height | 222 mm (8.7 in) |
| Width | 78.6 mm (3.1 in) |
| Depth | 212 mm (8.3 in) |
| Net Weight | 1.3 kg (2.9 lbs) |
Drive Bays | |
| External 5.25 inch | 0 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 0 |
| Internal 2.5 inch | 2 |
Front Panel Connectors | |
| USB 2.0 | 4 |
| USB 3.0 | 0 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Vents |
