Gigabyte GeForce RTX 3090 TURBO 24GB Blower

Video Card

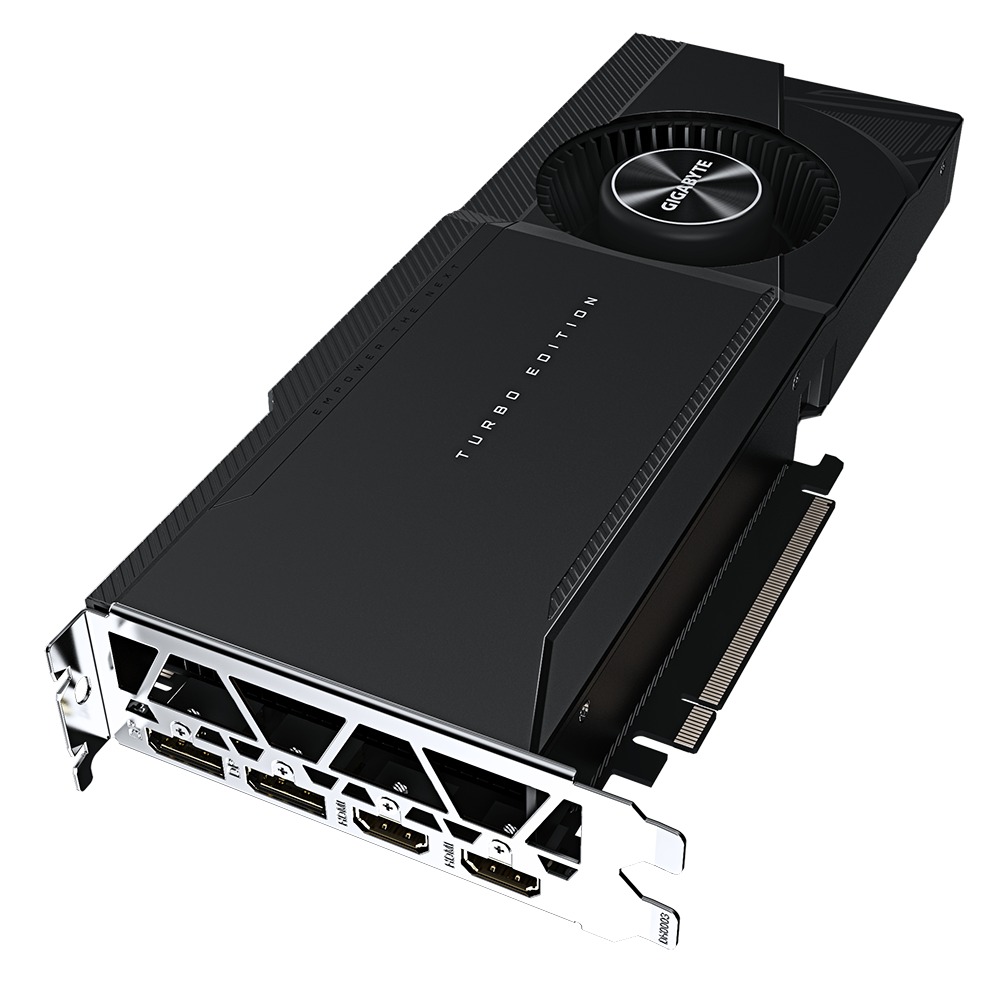

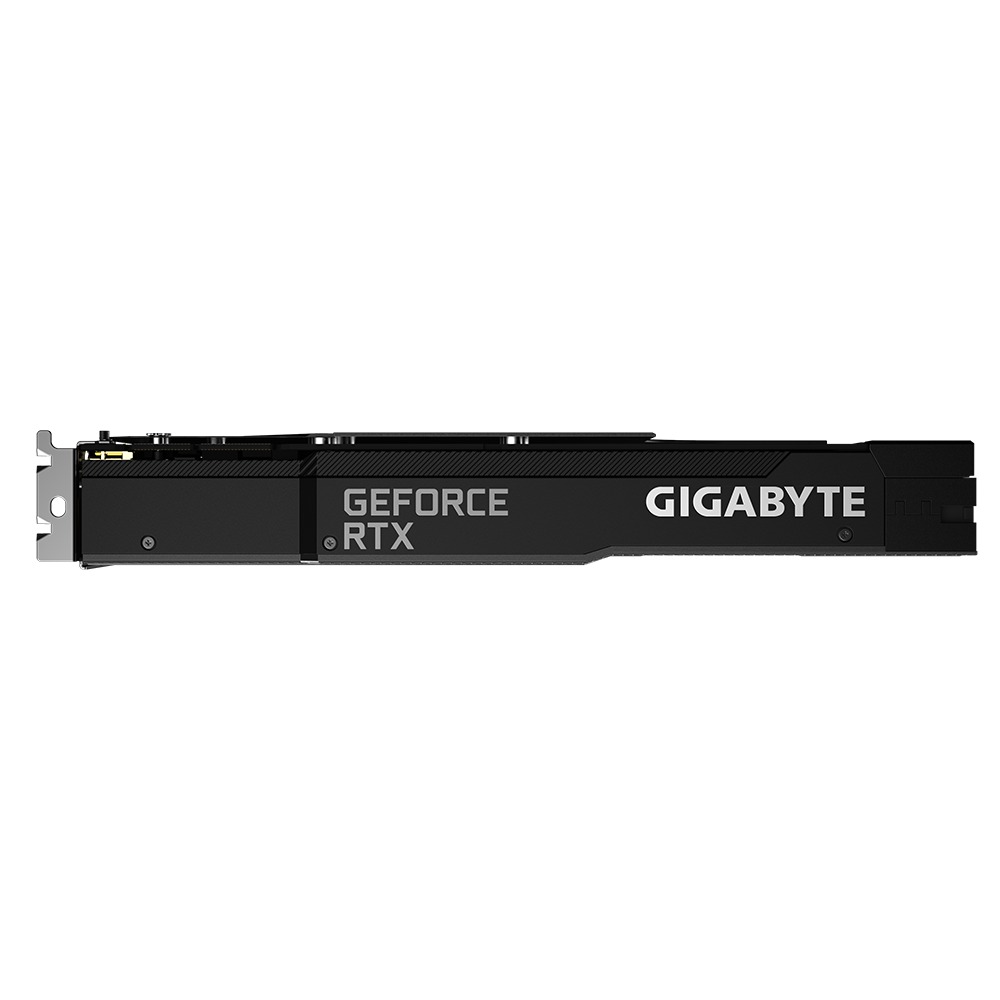

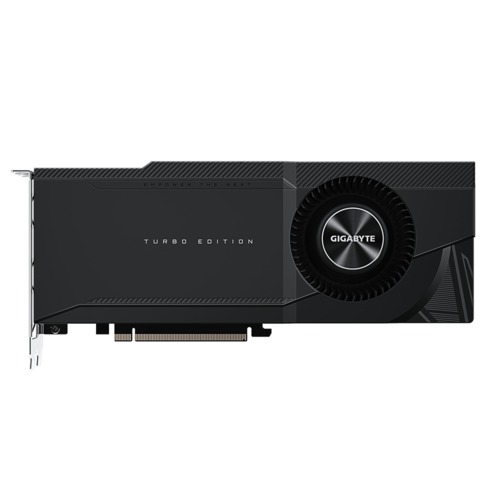

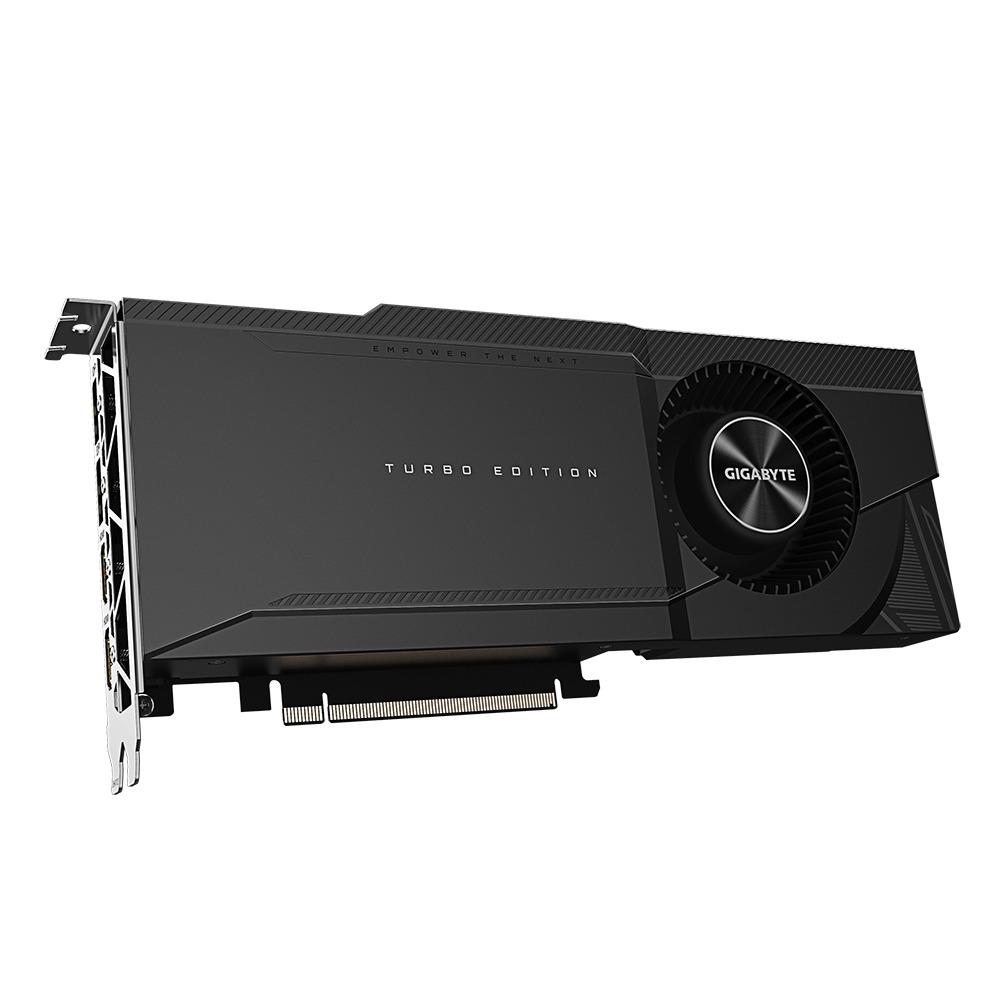

Gigabyte GeForce RTX 3090 TURBO 24GB Blower Main Picture

Gigabyte GeForce RTX 3090 TURBO 24GB Blower Picture 64444Gigabyte GeForce RTX 3090 TURBO 24GB Blower Picture 64445Gigabyte GeForce RTX 3090 TURBO 24GB Blower Picture 64446Gigabyte GeForce RTX 3090 TURBO 24GB Blower Picture 64447Gigabyte GeForce RTX 3090 TURBO 24GB Blower Picture 64448
NVIDIA's GeForce RTX 3090 is one of the first consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies greatly depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. Compared to the previous 20 Series models, the RTX 3090 can be more than twice as fast in some applications - but not every program or game will see that much gain. In contrast, compared to the less expensive RTX 3080, most users would gain a 10-20% boost - along with 140% more VRAM, which can make a much bigger difference in many real-world situations.

This variant from Gigabyte uses a single-fan, blower-style cooler. That means most of the heat generated by the card is exhausted out the back of the system, making this design ideal for multi-GPU configurations. In trade it will make a lot more noise under load, since the one fan has to run at much higher RPMs in order to dissipate the same amount of heat as the two or three fans on other variants.

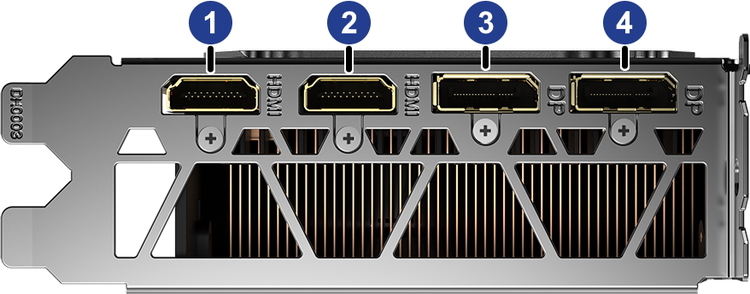

Finally, in regards to connectivity, there are two HDMI 2.1 and two DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Note: Many configurations can be supported by a non-blower option, which we have in stock. Please contact us for advice on the best choice for your use case!

Model: Gigabyte GV-N3090TURBO-24GD


Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3090
Interface PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology NVLink (GeForce RTX 3000)
Lite Hash Rate No
GPU Specifications
Core Speed 1,350 MHz
Boost Speed 1,650 Mhz
Stream Processors 1‎0496
Memory Specifications
Video Memory 24GB
Memory Type GDDR6X
Memory Speed 19,500 MHz
Memory Bus Width 384-bit
Bandwidth 936 GB/s
Additional Information
Cooling System Blower Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2
Port 1 HDMI
Port 2 HDMI
Port 3 DisplayPort
Port 4 DisplayPort
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Length 267 mm (10.5 in)
Height 111 mm (4.4 in)
Width 40 mm (1.6 in)
Net Weight 2.032 kg (4.5 lbs)
