NVIDIA's GeForce RTX 2080 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance about 5-10% over the vanilla RTX 2080 while maintaining the same price point. Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.
As with the previous RTX cards directly from NVIDIA, this "Founders Edition" card uses a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. In those cases, a video card with a blower-style fan and rear heat exhaust will be much better.
Finally, in regards to connectivity, the RTX 2080 SUPER has dropped DVI output entirely. There are still enough outputs for four monitors, though: one HDMI 2.0b and three DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
As with the previous RTX cards directly from NVIDIA, this "Founders Edition" card uses a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. In those cases, a video card with a blower-style fan and rear heat exhaust will be much better.
Finally, in regards to connectivity, the RTX 2080 SUPER has dropped DVI output entirely. There are still enough outputs for four monitors, though: one HDMI 2.0b and three DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
Model: NVIDIA 9001G1802540000
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | GeForce |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 4096x2160 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | NVLink (GeForce RTX) |
GPU Specifications | |
Core Speed | 1650 MHz |
Boost Speed | 1815 Mhz |
Stream Processors | 3072 |
Memory Specifications | |
Video Memory | 8GB |
Memory Type | GDDR6 |
Memory Speed | 15,500 MHz |
Memory Bus Width | 256-bit |
Bandwidth | 496 GB/s |
Additional Information | |
Cooling System | Open Air Type |
DirectX Support | DirectX 12 |
CUDA Support | 6.5 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |

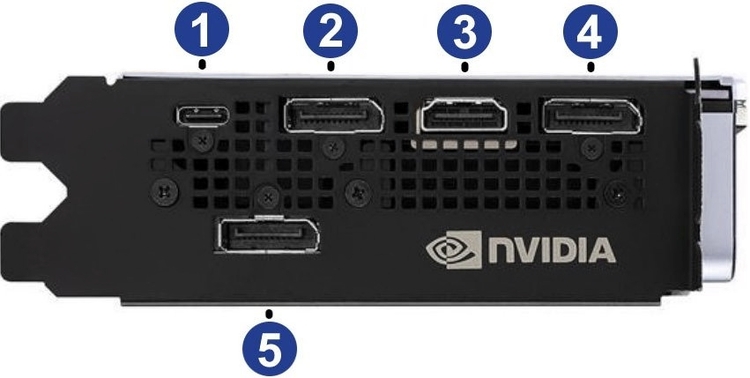

Outputs | |
Port 1 | USB Type-C |
Port 2 | DisplayPort |
Port 3 | HDMI |
Port 4 | DisplayPort |
Port 5 | DisplayPort |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Plug 2 | 6-pin PCI-E |
Dimensions | |
Length | 269 mm (10.6 in) |
Height | 114 mm (4.5 in) |
Width | 42 mm (1.7 in) |
