PNY Quadro P620 PCI-E 2GB

Video Card

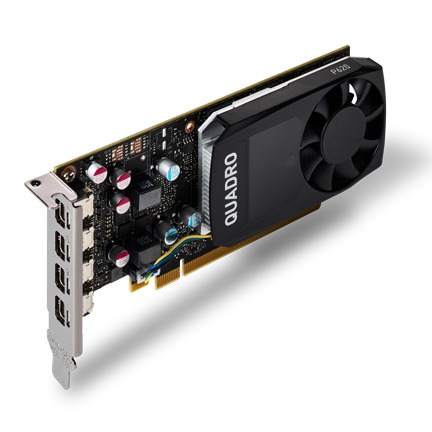

PNY Quadro P620 PCI-E 2GB Main Picture

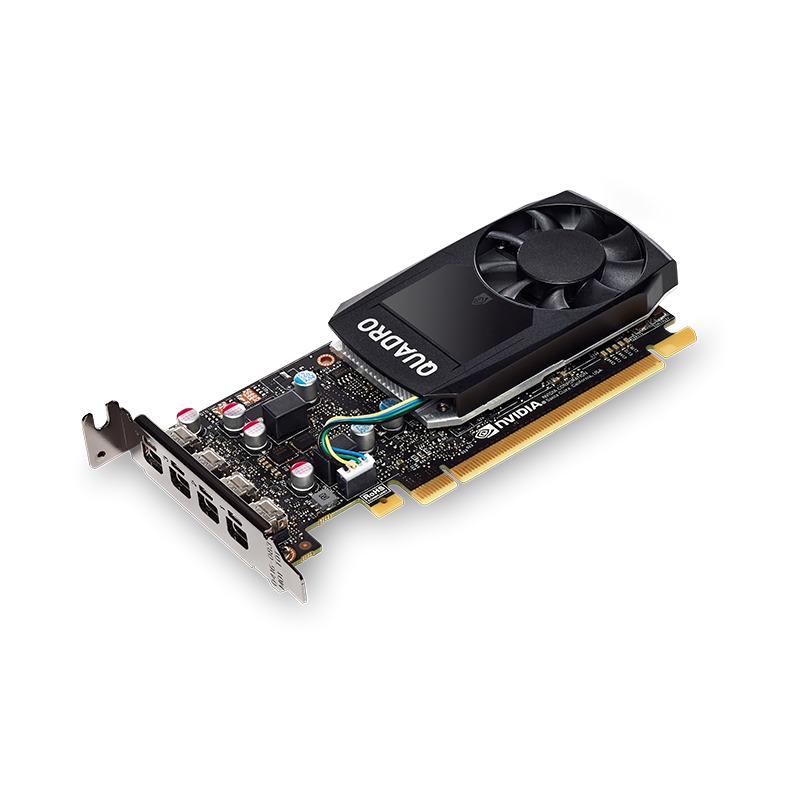

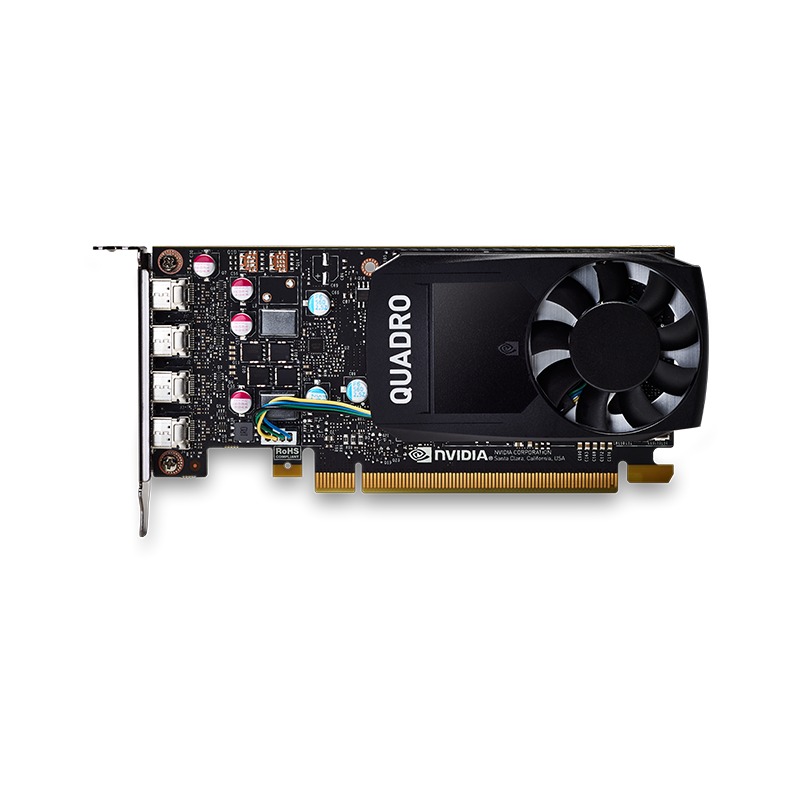

PNY Quadro P620 PCI-E 2GB Picture 46764PNY Quadro P620 PCI-E 2GB Picture 46765
The NVIDIA Quadro P620 is an entry-level, Pascal-based professional graphics card. It offers a small performance boost over the earlier P600 model, though the amount of video memory and monitor outputs remained the same. That lets the P620 run up to four displays, though with the limited video memory the resolution of each screen should be kept at a moderate level.

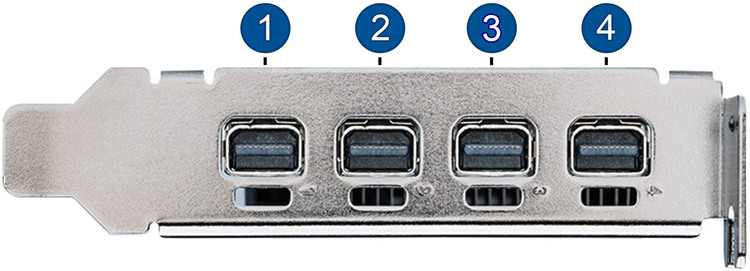

The P620 is a half-height card, but comes with a full-height bracket for use in normal cases. As alluded to previously, this card has four Mini DisplayPort connections - and adapters to full size DisplayPort are included as well. Adapters to DVI or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200). A wide range of standards are also supported by this card: DirectX 11, OpenGL 4.4, CUDA 5.0, and OpenCL (to name a few).
Jeff Stubbers (Tier 3 Consulting Lead)
Jeff Stubbers (Tier 3 Consulting Lead) Says:
Nvidia lists these (4) Mini DisplayPort 1.4 outputs as supporting 4x 4096x2160 @ 60Hz, or 4x 5120x2880 @ 60Hz.

This card comes with (4) Mini DP, to DP adapters.

Model: PNY VCQP620-PB


Chipset Manufacturer NVIDIA
Product Line Quadro
Interface PCI Express 3.0 x16
Maximum Digital Resolution 5120x2880
Maximum Monitors Supported 4
HDCP Compliant Yes
GPU Specifications
Stream Processors 512
Memory Specifications
Video Memory 2GB
Memory Type GDDR5
Memory Bus Width 128-bit
Bandwidth 80 GB/s
Single Precision Floating Point (Peak) 1.386 Tflops
Additional Information
Cooling System Small Fan and Heatsink
DirectX Support DirectX 12
OpenGL Support 4.5
Removable Backplate No
Slot Width 1
Port 1 Mini DisplayPort
Port 2 Mini DisplayPort
Port 3 Mini DisplayPort
Port 4 Mini DisplayPort
Power Connectors
Plug 1 None
Length 144.78 mm (5.7 in)
Height 69 mm (2.7 in)


  • Full height bracket and 4x Mini Displayport to Displayport adapters included.
