Note: Required to provide enough connections for all of the USB 3.0 ports on the front of the P183 chassis
Model: Silverstone EC01+
Specifications
Card Specifications | |
| Manufacturer | Silverstone |
| Type of Ports | USB 3.0 |
| Number of Ports | 1 |
| Port Location(s) | Internal |
| Interface | PCI-Express x1 |
| Form Factor | Low/Full Height |
Controller Chip | |
| Brand | NEC |
| Model | uPD720202 |
Dimensions | |
| Height | 120 mm (4.7 in) |
| Width | 15 mm (0.6 in) |
| Depth | 70 mm (2.8 in) |

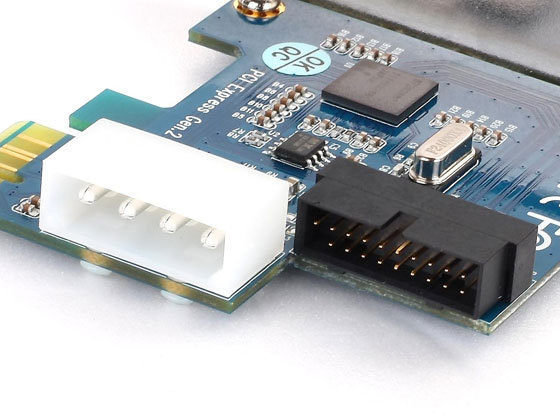

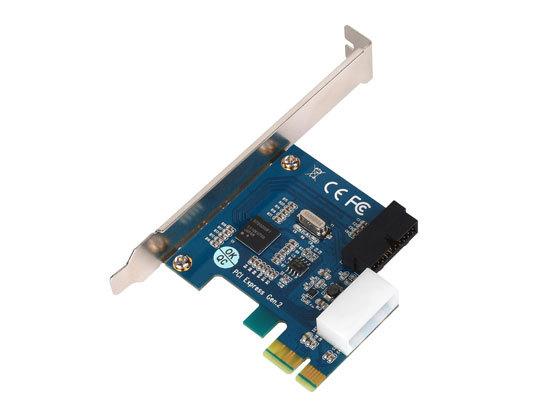

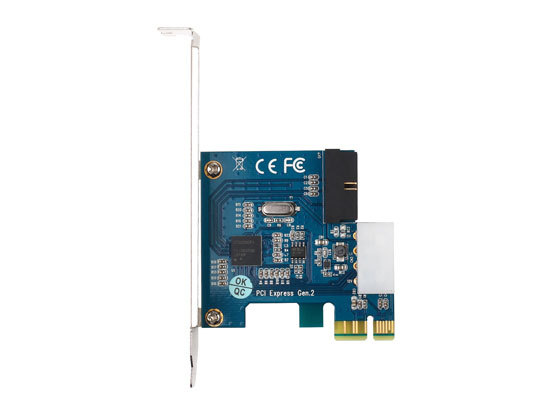

SilverStone EC01 is an expansion card that connects to the motherboards via a single lane PCI-E gen 2.0 slot. Its single USB 3.0 internal connector offers output for dual front port USB 3.0 super speed interface which enables data transfer with maximum compatibility and stability. For those looking to use cases or drive bays that supports the new USB 3.0 internal connector standard, the EC01 is the quickest way to upgrade any motherboard with PCI-E gen 2.0 slot to be compatible with the new standard.
