MSI G4101 EPYC 4x GPU 4U Rackmount Workstation

Motherboard

MSI G4101 EPYC 4x GPU 4U Rackmount Workstation Main Picture


MSI G4101 EPYC 4x GPU 4U Rackmount Workstation Picture 83692MSI G4101 EPYC 4x GPU 4U Rackmount Workstation Picture 83693MSI G4101 EPYC 4x GPU 4U Rackmount Workstation Picture 83694
The MSI G4101 is a barebones 4U rackmount workstation built to accommodate up to four NVIDIA GeForce RTX GPUs. It utilizes an AMD EPYC 9004 Series processor, which supports a massive 128 PCI-Express 5.0 lanes as well as 12 DDR5 memory channels - ensuring plenty of bandwidth for running multiple graphics cards and intense workloads.

For storage, there are two internal PCIe 3.0 M.2 slots (though only one operates at full x4 speed) and twelve 2.5-inch drive bays along the front of the chassis. Those bays support U.2 NVMe drives thanks to the abundant PCIe lanes from the EPYC processor.

External connectivity consists of three USB 3.2 ports plus VGA and an Ethernet port for remote management, but no standard networking port built-in. Instead, there are two additional PCIe 4.0 x8 slots for faster network adapters or other expansion cards.

Sliding rails for mounting the system are included.

Model: MSI G4101

Specifications

Socket sTR5
CPU Compatibility AMD EPYC 9004 series (up to 500W)
Form Factor 4U
Chipset Manufacturer AMD
Network Connectivity N/A
Audio Controller N/A
Cooling System Liquid
Number of Fans 7
Color Grey
Memory Support
Type DDR5 ECC Registered
Maximum Speed 4800 MHz
Number of Slots 12
Maximum Size per Slot 256 GB
Maximum Amount Supported 3072 GB
Onboard Video
Chipset Manufacturer ASpeed
Processor Type AST2600
Maximum Resolution 1920x1200
VGA 1

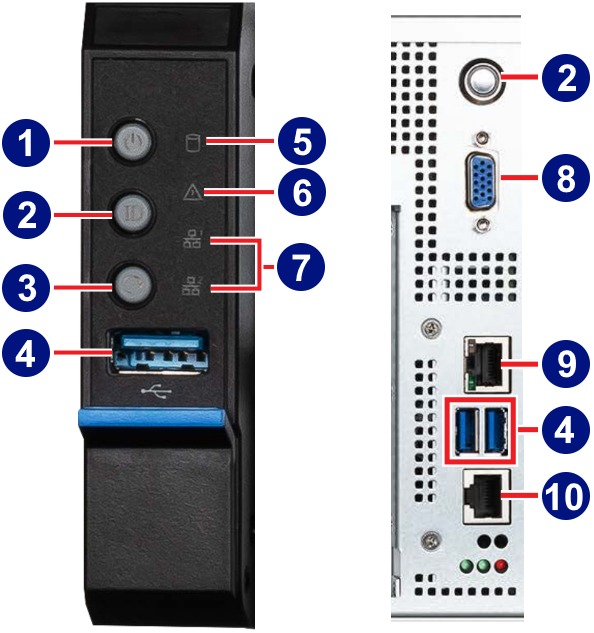

External Connections
USB 3.2 Gen 1 (USB 3.0) 4
LAN (RJ45) 1
Mgmt LAN (RJ45) 1
BIOS Flashback No
Internal Connections
M.2 Connector 2
M.2 Support 1x 80-110mm PCIe 3.0, 1x 80-110mm PCIe 3.0 (x2)
Compatible TPM MSI MS-165F
Notes: 12x 2.5-inch Hot Swap bays supporting NVMe
Expansion Slots
Slot 1 PCI Express 5.0 x16
Slot 2 PCI Express 5.0 x16
Slot 3 PCI Express 5.0 x16
Slot 4 PCI Express 5.0 x16
Slot 5 PCI Express 4.0 x8 in a x16 size
Slot 6 PCI Express 4.0 x8 in a x16 size
Additional Information
SLI Compatible No
Crossfire Compatible No
Integrated IO Shield Yes
Remote Management Onboard
Includes Rail Kit Yes
Hearing Protection Advised Yes
BIOS Features
UEFI BIOS No
EZ Flash No
OC Profiles No
Dimensions
Height 176 mm (6.9 in)
Width 448 mm (17.6 in)
Depth 827 mm (32.6 in)
Net Weight 19.6 kg (43.2 lbs)
Power Supply
Input Voltage 200-240 Vac
Wattage at 240V 3000 W
Redundancy 1+1

Included With Server


  • Rack rails
  • Chassis handles (x4)
  • Power cords (x2)
  • Quick start guide
