Home > Power Supply > Corsair HX 1000W Power Supply

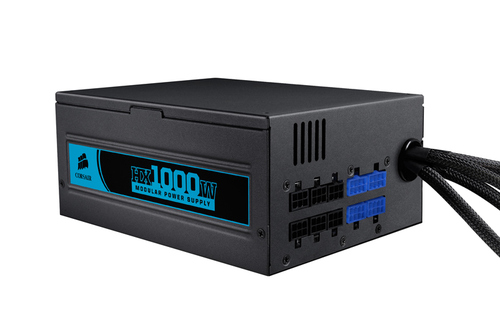

Corsair HX 1000W Power Supply Main Picture
Zoom Button

Power Supply

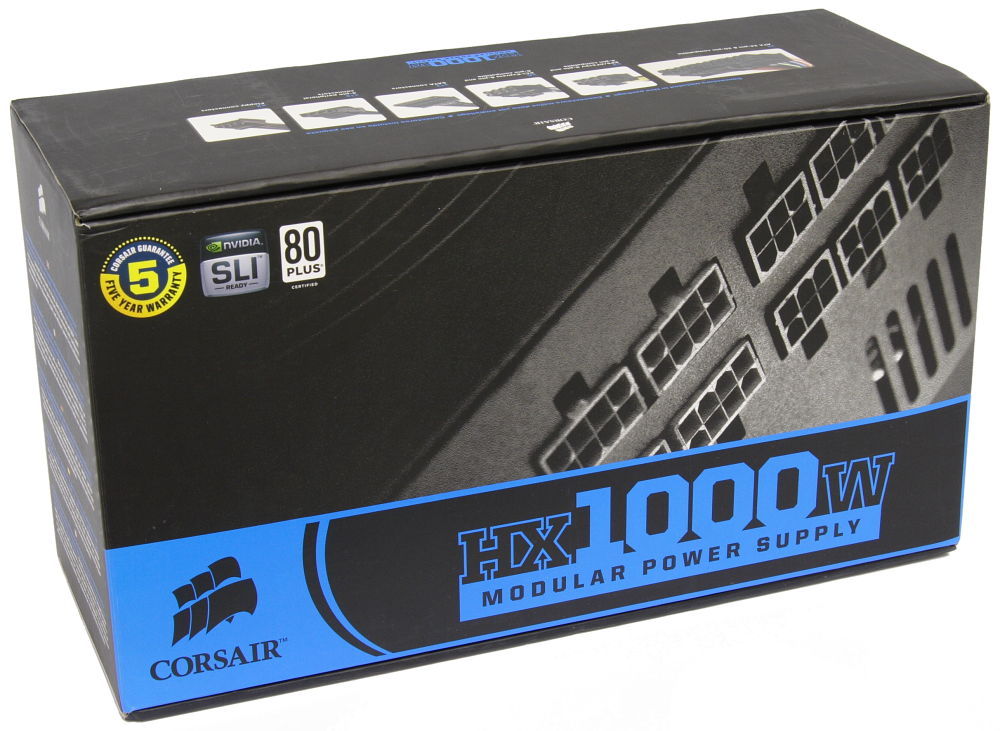

Corsair HX 1000W Power Supply

Corsair HX 1000W Power Supply Picture 15101


Manufacturer Description
Model: Corsair CMPSU-1000HX

Specifications:
spacer
Maximum Power  1000 W
Standard Compliance  ATX 12V v2.2
Efficiency  80 %
Cooling System  Quiet 140mm Fan
Noise Level  24 (idle), 44 (max) dB
Power Distribution
+3.3V rail  30 amps
+5V rail  30 amps
+12V1 rail  40 amps
+12V2 rail  40 amps
Combined +12V Maximum  80 amps
Connectors
Molex  10
SATA  10
Floppy  2
PCI Express 8-pin  6
CPU Power 8 pin  2
Dimensions
Height  86 mm (3.4 inches)
Width  150 mm (5.9 inches)
Length  200 mm (7.9 inches)

Features:
  • 80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation
  • High quality Japanese capacitors provide uncompromised performance and reliability.
  • MTBF: 100,000 Hours
Warranty:

5 Year Warranty
