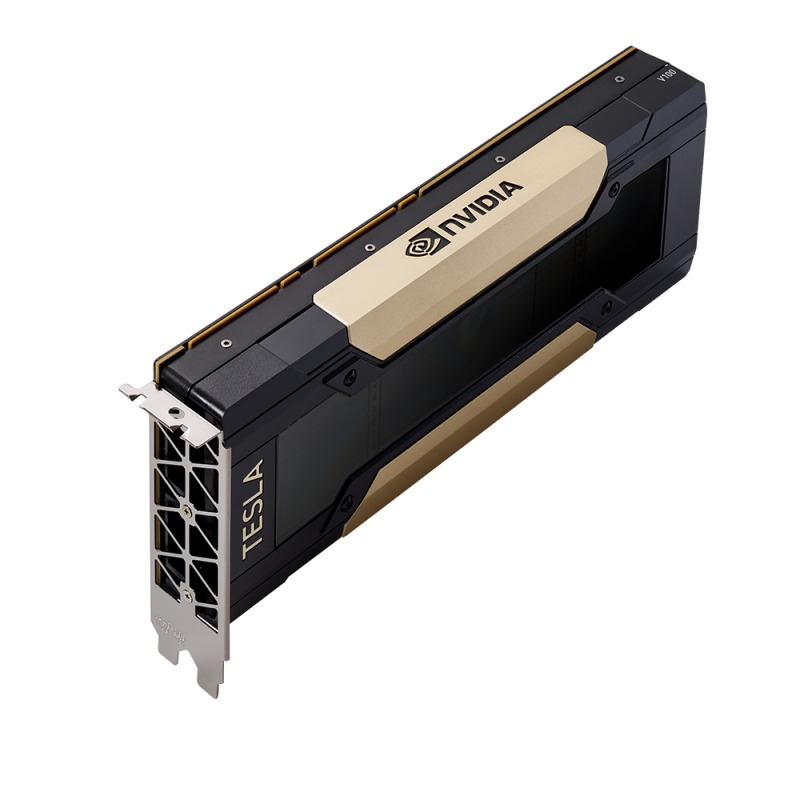

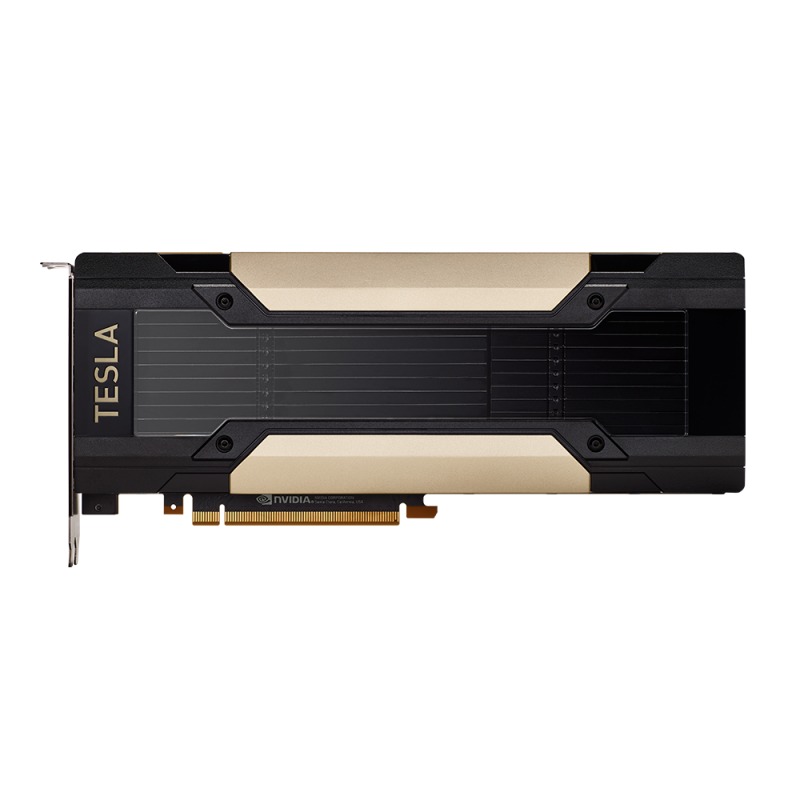

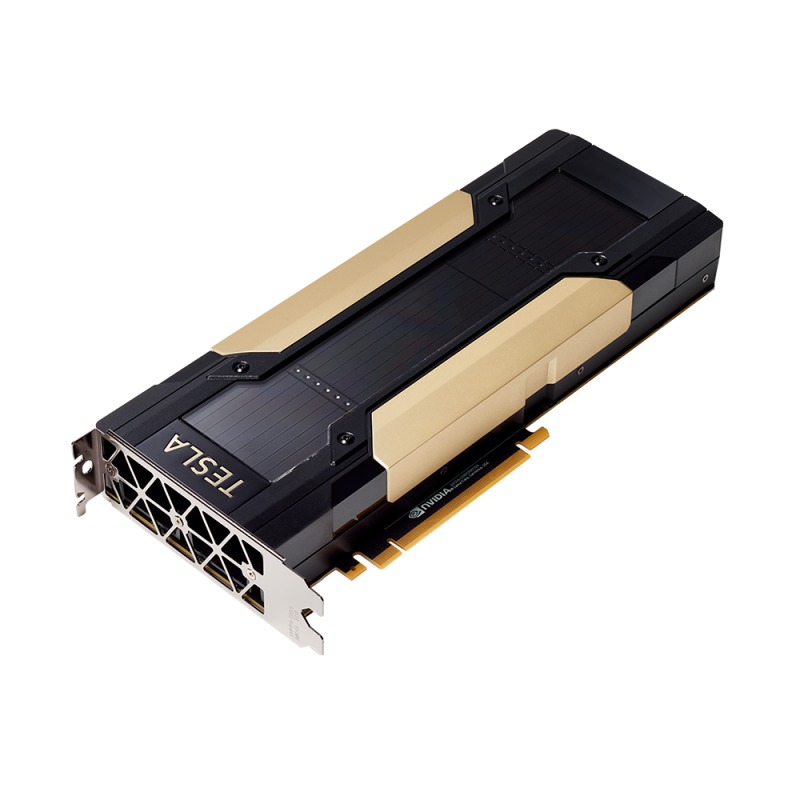

NVIDIA Tesla V100 PCI-E 32GB (Passive)
Accelerators
NVIDIA's Tesla V100 is built for GPU computing. It is based on the Volta graphics chip, and is very similar to a video card - but with an emphasis on pure calculation performance rather than actually rendering graphics on a monitor. In fact, it doesn't have display outputs at all! As such, Tesla cards should be paired with a Quadro video card to handle display output.
On the computation side, the V100 has unhindered double-precision floating point performance (FP64) - a big advantage over most Quadro and GeForce cards, albeit in a niche area. It also supports several lower-precision modes and has dedicated Tensor cores for specialized machine learning applications.

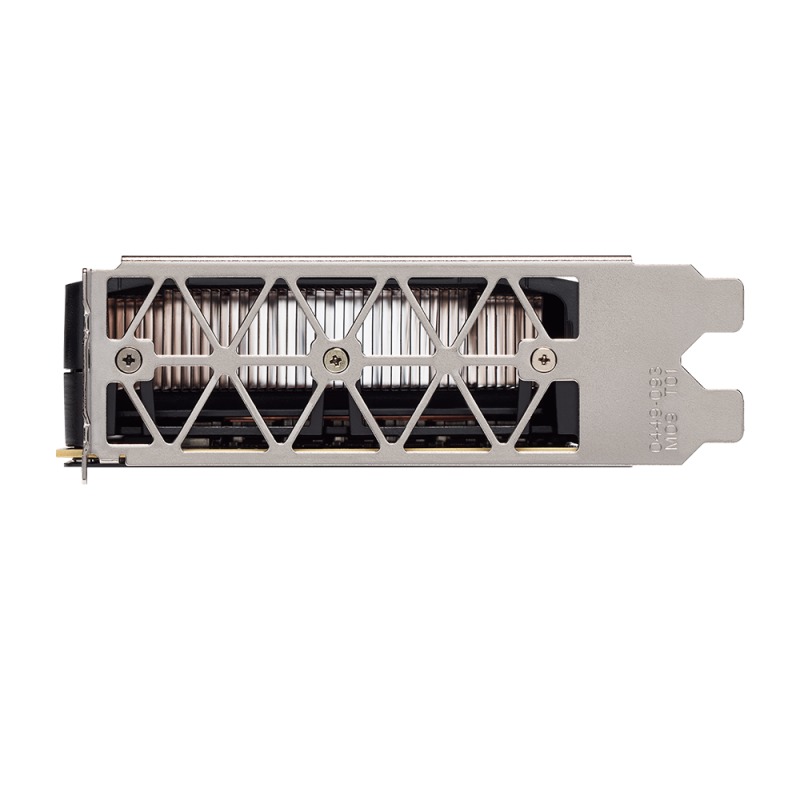

The Tesla is a passive card, meaning it has no cooling fan of its own. Cards like this can only be used in cases which provide the necessary amount of airflow across the PCI-Express slot area. If you want a Tesla but are unsure which of our systems support it, please contact our technology consultants.
On the computation side, the V100 has unhindered double-precision floating point performance (FP64) - a big advantage over most Quadro and GeForce cards, albeit in a niche area. It also supports several lower-precision modes and has dedicated Tensor cores for specialized machine learning applications.
The Tesla is a passive card, meaning it has no cooling fan of its own. Cards like this can only be used in cases which provide the necessary amount of airflow across the PCI-Express slot area. If you want a Tesla but are unsure which of our systems support it, please contact our technology consultants.
Model: NVIDIA TCSV100M-32GB-PB
Specifications:
Specifications:
| Chipset Manufacturer | NVIDIA |
| Product Line | Tesla |
| Motherboard Connection | PCI Express 3.0 x16 |
| Cooling Method | Passive Heatsink |
| Core Specifications | |
| Processors | CUDA: 5120, Tensor: 640 |
| Memory Specifications | |
| Onboard Memory | 32GB |
| Memory Type | HBM2 |
| Memory Bus Width | 4096-bit |
| Bandwidth | 900 GB/s |
| Performance | |
| Double Precision Floating Point (Peak) | 7 Tflops |
| Single Precision Floating Point (Peak) | 14 Tflops |
| Power Connectors | |
| Plug 1 | 8-pin PCI-E |
| Plug 2 | None |
| Dimensions | |
| Length | 267 mm (10.5 in) |
| Height | 112 mm (4.4 in) |
| Width | 42 mm (1.7 in) |
