Fractal Design Define 7


[ Front Panel ]

Fractal Design Define 7 Picture 60102Fractal Design Define 7 Picture 60103Fractal Design Define 7 Picture 60104Fractal Design Define 7 Picture 60111Fractal Design Define 7 Picture 60106Fractal Design Define 7 Picture 60107Fractal Design Define 7 Picture 60108Fractal Design Define 7 Picture 60125Fractal Design Define 7 Picture 60109Fractal Design Define 7 Picture 60110Fractal Design Define 7 Picture 60329Fractal Design Define 7 Picture 62961Fractal Design Define 7 Picture 62955Fractal Design Define 7 Picture 63356
The Define 7 chassis is a generational upgrade to Fractal Design's quiet case series. It is classified as an ATX mid-tower and includes a reversible front door, noise dampening padding on the front and side panels, and filters over the front and bottom air intakes.

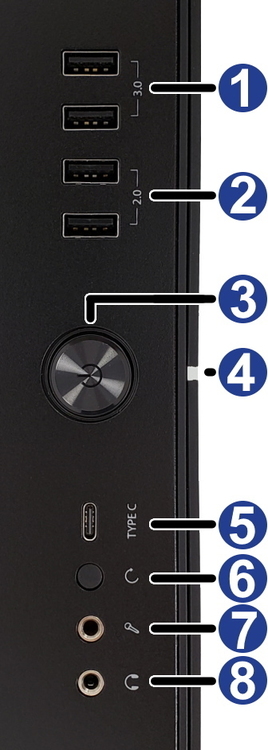

Similar to its predecessors, the Define 7 has a flexible internal layout. However, the "floating" drive mounts are not secure enough for shipping - so the number of drives that can be installed is rather limited. We can support one 5.25-inch front drive, three 3.5-inch hard drives, and two more 2.5-inch SSDs; the 3.5-inch locations can also mount smaller SSDs if needed. Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include one USB-C, two each of USB 2.0 & 3.0 ports, and both headphone and mic plugs.

Note: Dimensions: 18.7" H x 9.4" W x 21.5" D

Model: Fractal Design FD-C-DEF7A-01

Color  Black
Material  Aluminum and plastic front panel, steel frame
Type/Size  Mid Tower
Maximum Motherboard Size  ATX
Case Window  No
Height  475 mm (18.7 in)
Width  240 mm (9.4 in)
Depth  547 mm (21.5 in)
Net Weight  13.49 kg (29.7 lbs)
Maximum CPU Cooler Height  185mm
Maximum GPU Length  315mm
Maximum PSU Length  250mm
Drive Bays
External 5.25 inch  1
Internal 2.5 inch  2
Internal 2.5/3.5 inch  2
Front Panel Connectors
USB 2.0  2
USB 3.0  2
Audio In  1
Audio Out  1
USB-C  1
Cooling System
Cooling Method  Air
Included Fans  3 140mm Fractal GP-14
Total Fan Mounts  9

Configure a custom computer with the Fractal Design Define 7.
