In Win R200-01N Rackmount Case

Case

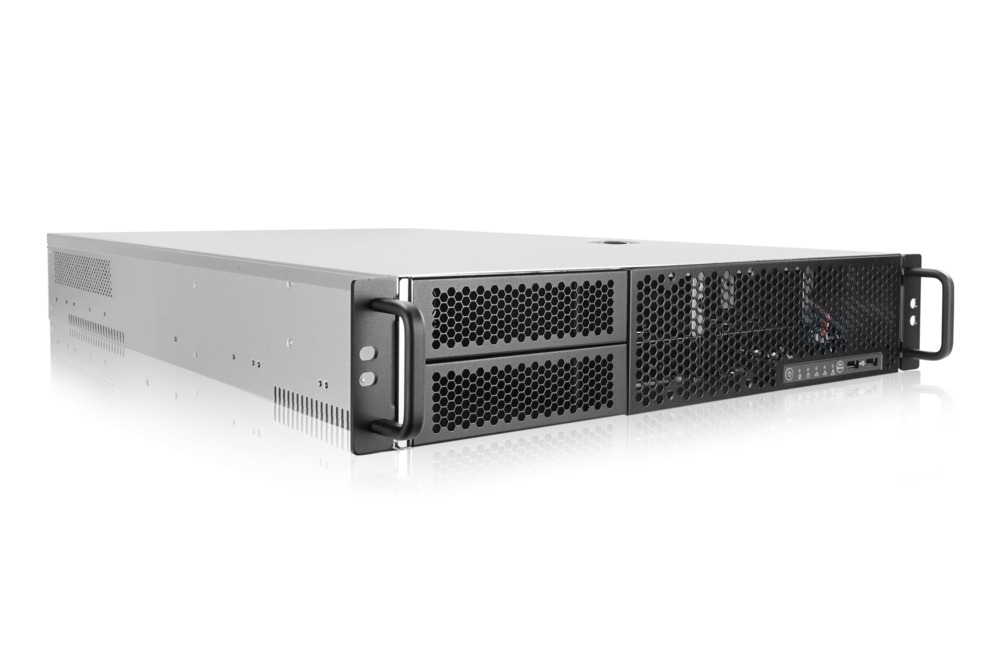

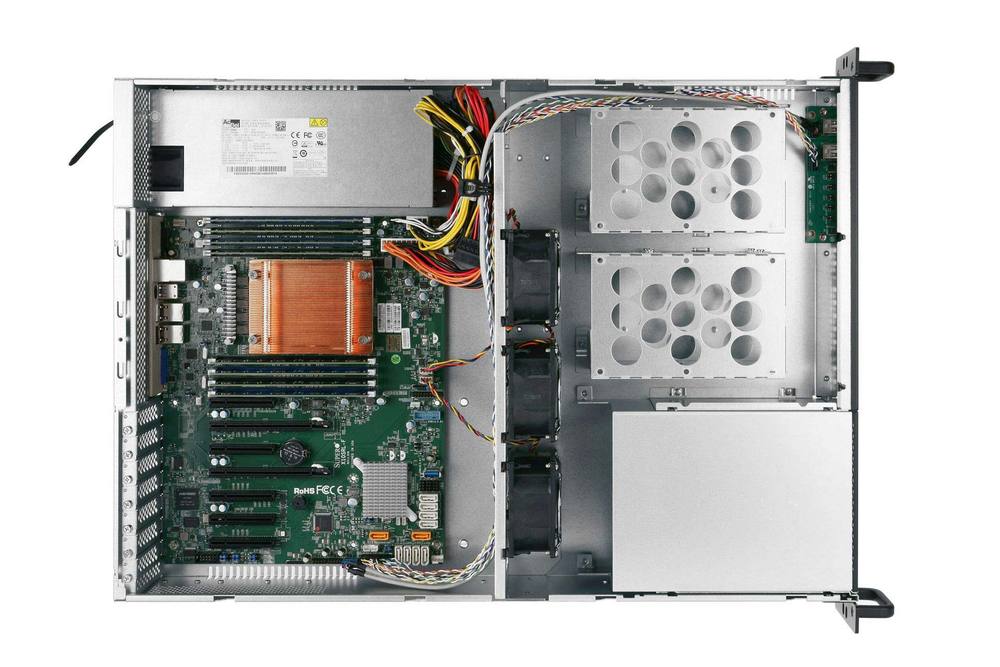

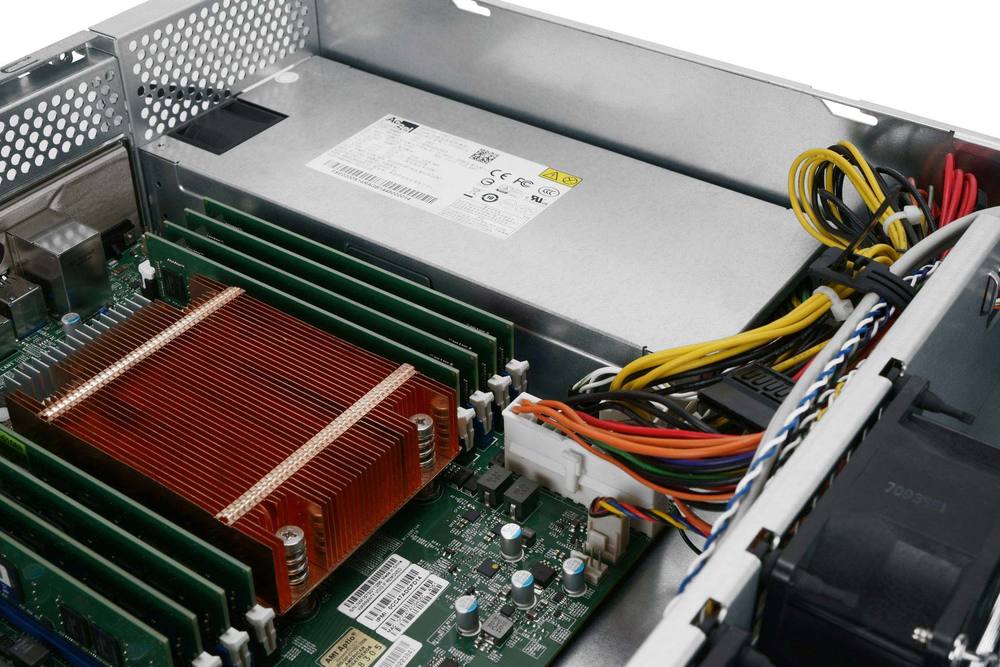

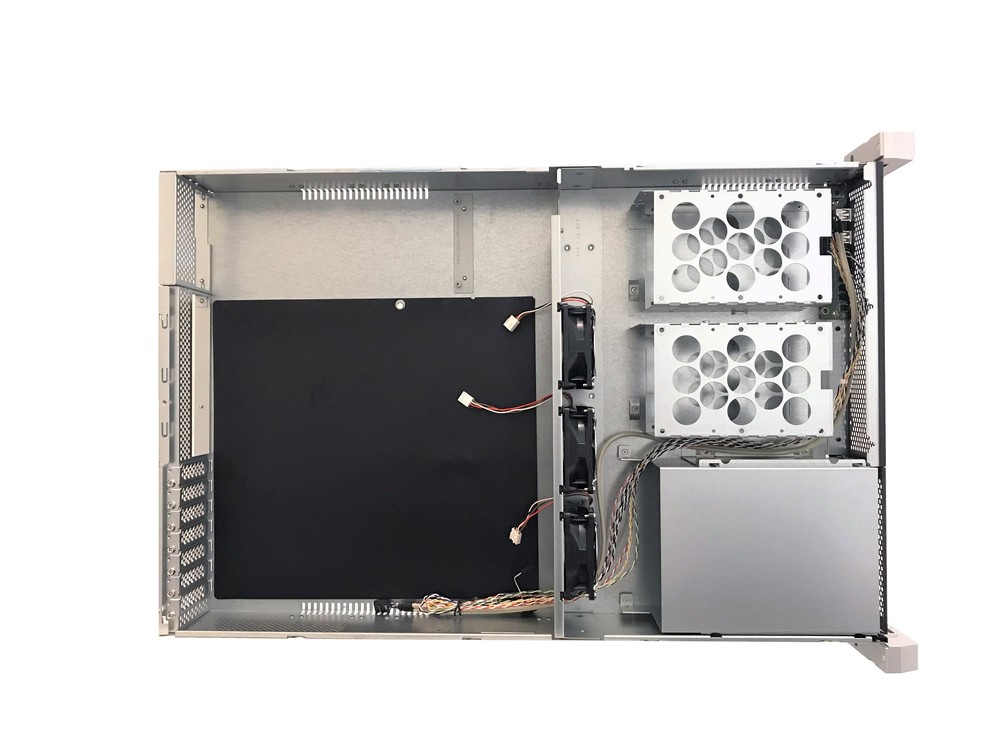

In Win R200-01N Rackmount Case Picture 75801In Win R200-01N Rackmount Case Picture 75806In Win R200-01N Rackmount Case Picture 75802In Win R200-01N Rackmount Case Picture 75803In Win R200-01N Rackmount Case Picture 75804In Win R200-01N Rackmount Case Picture 75805In Win R200-01N Rackmount Case Picture 75807In Win R200-01N Rackmount Case Picture 75798
This 2U rackmount chassis from IN WIN can house up to EEB / Extended ATX size boards, allowing both single- and dual-CPU configurations. It comes with three 80mm fans in the midst of the case, providing plenty of airflow across the motherboard, CPUs, and expansion cards. That gives the R200-01N a fair amount of expansion room and cooling capacity, for a chassis this slim, making it an ideal platform for high-performance servers.

When configuring a system in this case, please note that the expansion slots are half-height. Additionally, we have modified the chassis with a locking front panel.

Model: InWin IW-R200-01N

Specifications

Color Black
Material Steel
Type/Size 2U Rackmount
Maximum Motherboard Size SSI EEB
Power Supply None
Dimensions
Height 88.9 mm (3.5 in)
Width 482.6 mm (19.0 in)
Depth 660 mm (26.0 in)
Net Weight 7.18 kg (15.8 lbs)
Maximum CPU Cooler Height 68mm
Drive Bays
External 5.25 inch 2
External 3.5 inch 0
Internal 3.5 inch 6
Internal 2.5 inch 0
Front Panel Connectors
USB 2.0 2
USB 3.0 0
Firewire 0
Audio In 0
Audio Out 0
eSATA 0
Cooling System
Cooling Method Air
Included Fans 3x 80mm

Features

  • Compatible Rails:
    - SR1-23
    - SR2-26
    - SR2-28
