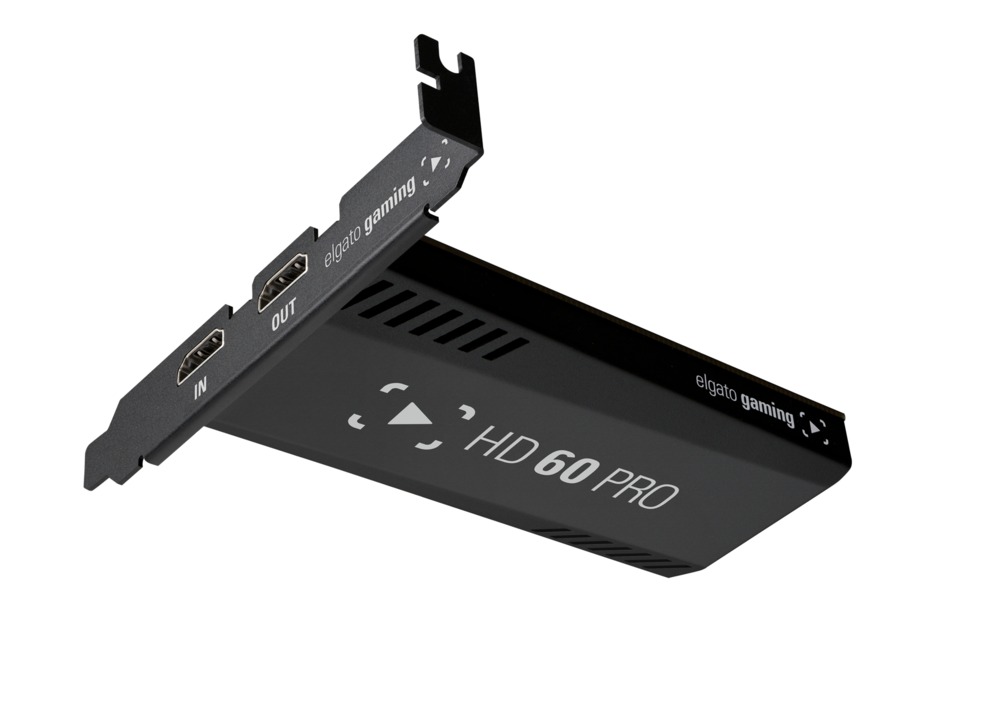

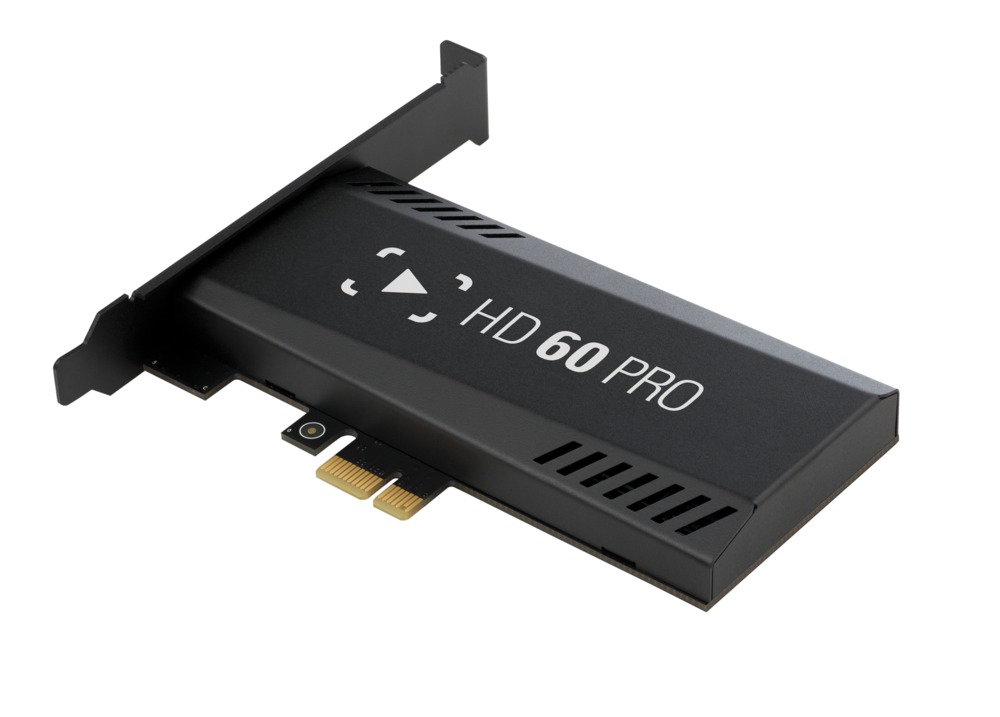

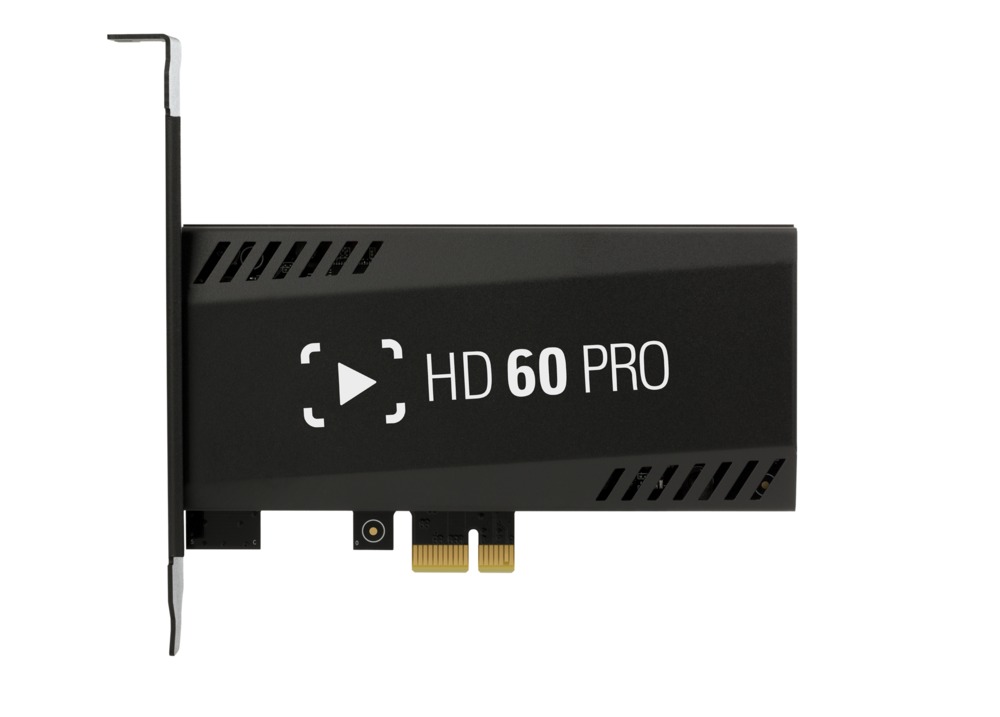

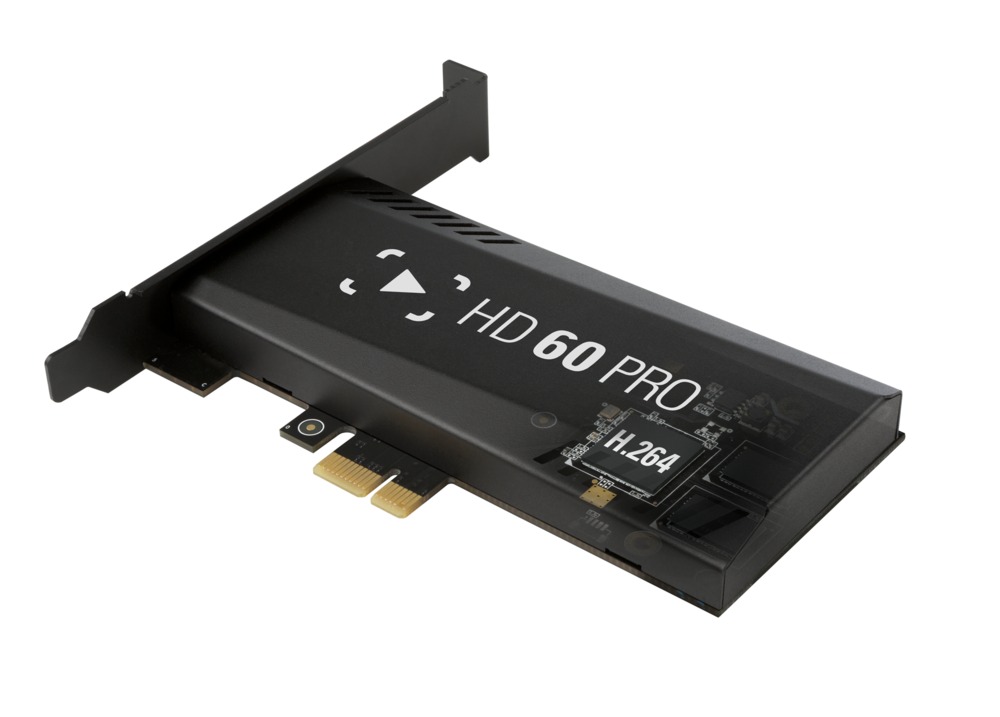

Elgato HD60 Pro HDMI PCI-E Capture Card
Controllers
The Elgato HD60 Pro is a HDMI capture card. It works by sitting between the video source and the monitor or TV to which it is displaying - so it has HDMI input and output ports for those two connections. It can both record and pass through video at up to 1920x1080 and 60fps (sometimes shortened to 1080p60). Elgato includes their own software, but this card also works well with popular applications like Open Broadcaster Software (OBS) and XSplit.
Model: Elgato HD60 Pro
Specifications:
Warranty:
Specifications:
| Card Specifications | |
| Manufacturer | Elgato |
| Number of Ports | 2 |
| Slot Style | PCI-Express x1 |
| Form Factor | Low/Full Height |
| Dimensions | |
| Height | 56 mm (2.2 in) |
| Width | 14 mm (0.6 in) |
| Depth | 122 mm (4.8 in) |
| Weight | .102 kg (0.2 lbs) |
Input: Unencrypted HDMI
Output: HDMI (lag-free pass-through)
Supported Resolutions: 1080p60, 1080p30, 1080i, 720p60, 720p30, 576p, 576i, 480p
Maximum Bitrate: 60 Mbps
Warranty:
1 Year
- Elgato HD60 Pro HDMI PCI-E Capture Card Drivers
- Game_Capture_HD60_2.1.1.5a.exe
Version 2.1.1.5a Released 08/24/16
For Win7_64, Win8_64, Win10_64
- Game_Capture_HD60_2.1.1.5a.exe
- Elgato HD60 Pro HDMI PCI-E Capture Card Utility
- GameCaptureSetup_3.50.125.2125_x64.zip
Version 3.50.125.2125 Released 04/24/17
For Win8_64, Win10_64 - GameCaptureSetup_3.20.33.1533_x64.msi
Version 3.20.33.1533 Released 01/05/17
For Win7_64
- GameCaptureSetup_3.50.125.2125_x64.zip
Configure a small form factor PC with the Elgato HD60 Pro HDMI PCI-E Capture Card.
