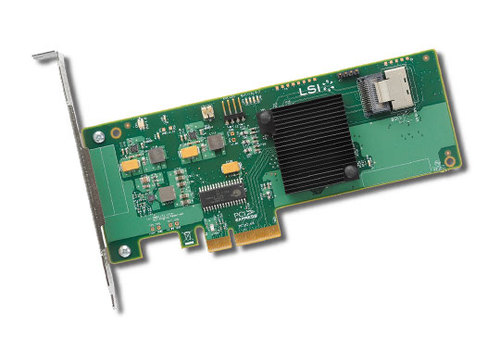

LSI 9211-4i SATA/SAS RAID Controller

Controllers

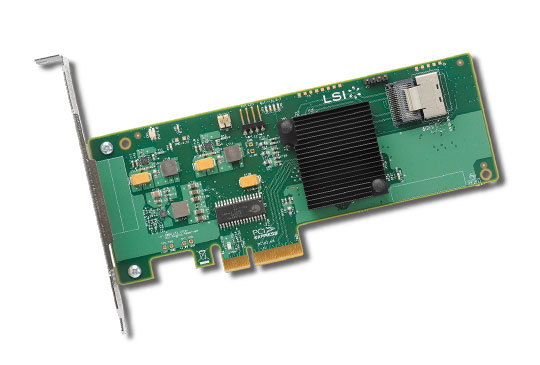

LSI 9211-4i SATA/SAS RAID Controller Picture 17713

Note: Does not include multi-lane cable, which must be purchased separately.

Model: LSI SAS 9211-4i

Specifications:
spacer
Card Specifications
Manufacturer  LSI
Type of Ports  Mini-SAS SFF8087
Number of Ports  1
Port Location(s)  internal
RAID Modes Supported  0, 1, 1E, 10
Native Supported Disks  4
Maximum Supported Disks  256
Battery Backup Available?  No
Slot Style  PCI-Express x4
Form Factor  Low/Full Height
Controller Chip
Brand  LSI
Model  SAS2004/ Fusion MPT 2.0

Features:
- 6Gb/s data transfer rate per port
- One x4 internal SFF8087 Mini-SAS connectors
- x4 lane PCI Express 2.0 host interface
- MD2 low-profile form-factor design
- Typical power usage of 7W
- Integrated RAID 0, 1, 1E, and 10
- Support for up to 256 end devices
