Intel X25-M 34nm Gen 2 160GB SATA II 2.5inch SSD

Hard Drive

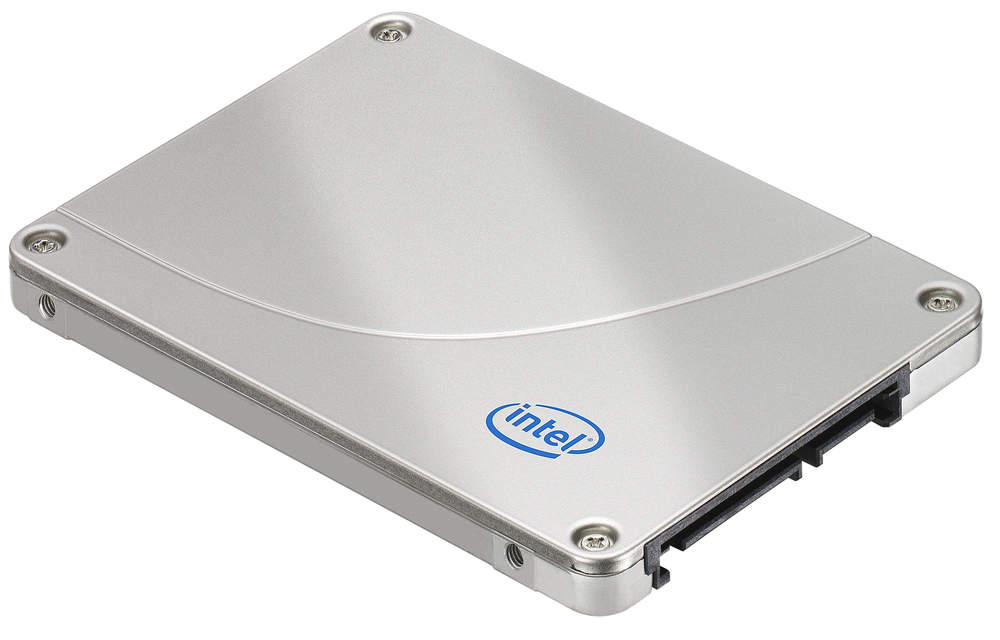

Intel X25-M 34nm Gen 2 160GB SATA II 2.5inch SSD Picture 13654
Model: Intel SSDSA2MH160G2

Specifications:
spacer
Capacity  160 GB
Interface  SATA2
Form Factor  2.5 Inch
Average Seek Time  0.1 ms
Idle Noise  0 dB
Seek Noise  0 dB
Command Queueing  NCQ
Performance
Sequential Read  250 MB/s
Sequential Write  70 MB/s
Random 4KB Read  35000 IOPS
Random 4KB Write  6800 IOPS

-SATA revision 2.6 compliant Compatible with SATA 3 Gb/s with Native Command Queueing and SATA 1.5 Gb/s interface rates.
-Intel Multi-Level Cell (MLC) NAND Flash Memory.
-10 Parallel Channel Architecture with 34nm MLC ONFI 1.0 NAND.
-Random 4 KB Reads: up to 35,000 IOPS
-Random 4 KB Writes: up to 8,600 IOPS

Sustained Sequential Read: up to 250 MB/s
Sustained Sequential Write: up to 70 MB/s

Life Expectancy:
1.2 million hours Mean Time Before Failure (MTBF)

Power Consumption:
Active: 150 mW Typical (PC workload1)
Idle (DIPM): 0.06 W Typical
Life Expectancy:
1.2 million hours Mean Time Before Failure (MTBF)

Power Consumption:
Active: 150 mW Typical (PC workload1)
Idle (DIPM): 0.06 W Typical




with the Intel X25-M 34nm Gen 2 160GB SATA II 2.5inch SSD.
