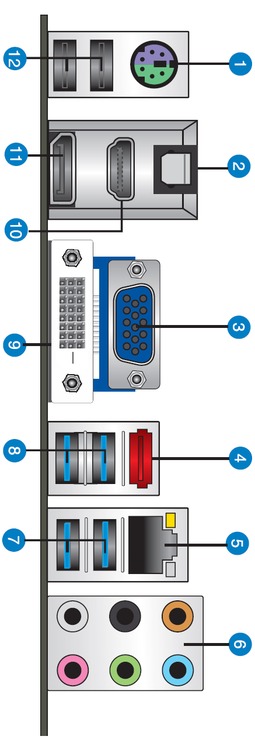

Asus F2A85-V Pro Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
DisplayPort Out: DisplayPort for outputting digital video.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Asus F2A85-V Pro Schematic
Model: Asus F2A85-V PRO
Specifications
| Socket | FM2 |
| CPU Compatibility | AMD Socket FM2 Athlon/A- Series Processors |
| Form Factor | ATX |
| Chipset Manufacturer | AMD |
| Chipset | A85X FCH(Hudson D4) |
| Wired Network Connectivity | Gigabit Networking |
| Network Controller | Realtek 8111F |
| Audio Controller | Realtek ALC892 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 |
| Maximum Speed | 1866 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | AMD |
| Processor Type | Radeon HD 7000 Series Graphics in A-series APU |
| Maximum Shared Memory | 2048 MB |
| Maximum Resolution | 4096x2160 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
Internal Connections | |
| USB 2.0 | 4 (providing 8 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 7 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 7 port - AMD A85X FCH (Hudson D4) |
| SATA III 6.0Gbps Controller 2 | 1 port eSATA - AMD A85X FCH (Hudson D4) |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x1 |
| Slot 2 | PCI Express 2.0 x16 |
| Slot 3 | PCI Express 2.0 x1 |
| Slot 4 | PCI |
| Slot 5 | PCI Express 2.0 x16 |
| Slot 6 | PCI |
| Slot 7 | PCI Express 2.0 x4 in a x16 size |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0, 1, 5, 10, JBOD |
| Bluetooth | No |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
PCIe 2.0 x16 slots operate in single x16 or dual x8 mode
