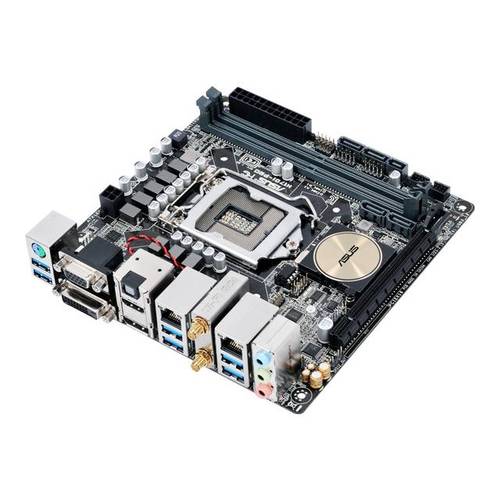

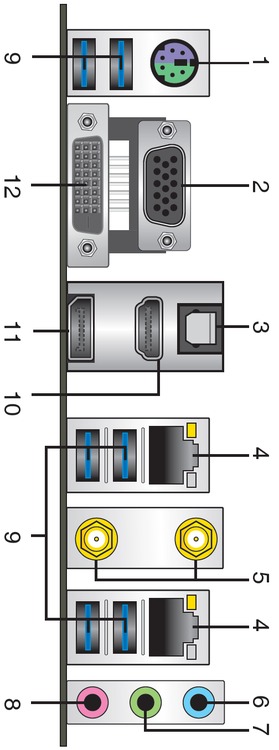

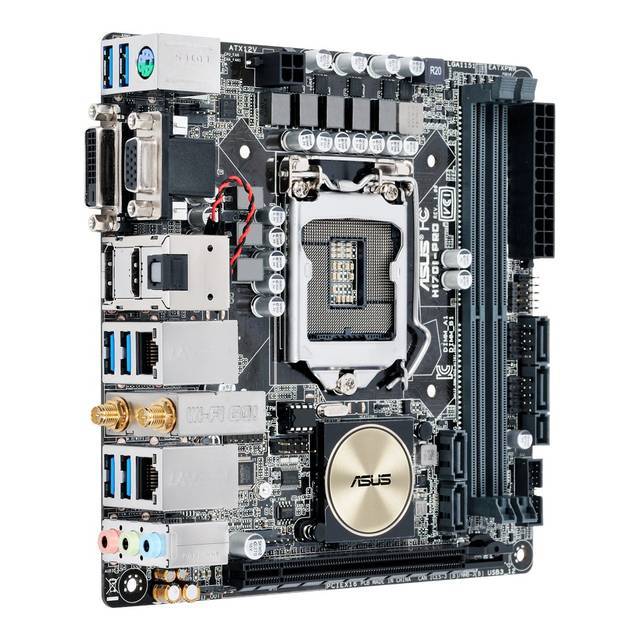

Asus H170I-Pro/CSM Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
DisplayPort Out: DisplayPort for outputting digital video.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.

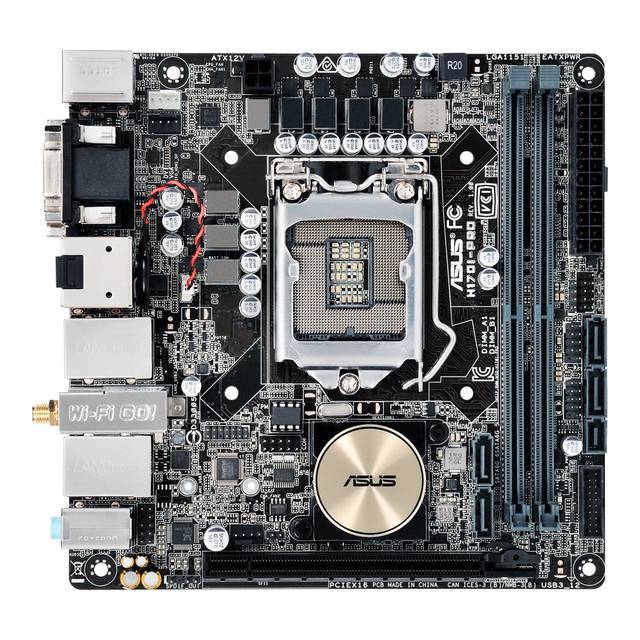

Asus H170I-Pro/CSM Schematic
Model: Asus H170I-PRO/CSM
Specifications
| Socket | 1151 |
| CPU Compatibility | Intel Socket 1151 for 6th Generation Processors |
| Form Factor | Mini-ITX |
| Chipset Manufacturer | Intel |
| Chipset | H170 |
| Front Side Bus | Direct Media Interface |
| Wired Network Connectivity | Gigabit Networking + 802.11 A/B/G/N/AC |
| Network Controller | Intel I219V + Realtek |
| Audio Controller | Realtek ALC887 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 |
| Maximum Speed | 2133 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 1024 MB |
| Maximum DVI Resolution | 1920x1200 |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 4096x2160 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 6 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (5.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 2 |
| SATA Express | 1 |
| M.2 Connector | 1 |
| M.2 Support | Socket 3 with M Key design, type 2242/2260/2280/22110 |
| TPM (module sold separately) | 1 |
| Compatible TPM | 14-1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4 port - Intel H170 |
| SATA III 6.0Gbps Controller 2 | M.2 - Intel H170 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Bluetooth | Yes (4.0) |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 170 mm (6.7 in) |
| Width | 170 mm (6.7 in) |
-M.2 socket is located on the bottom of the motherboard.
-Compatible with 14-1 pin TPM module
