Asus P7P55D Deluxe

Motherboard

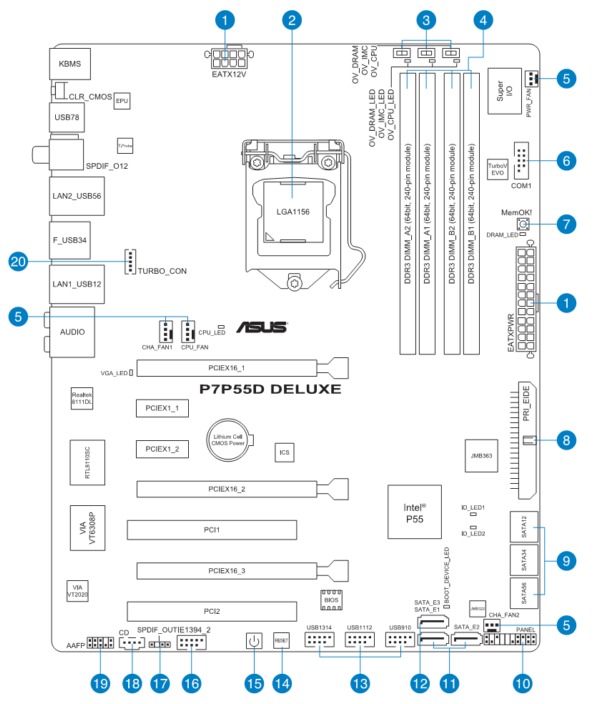

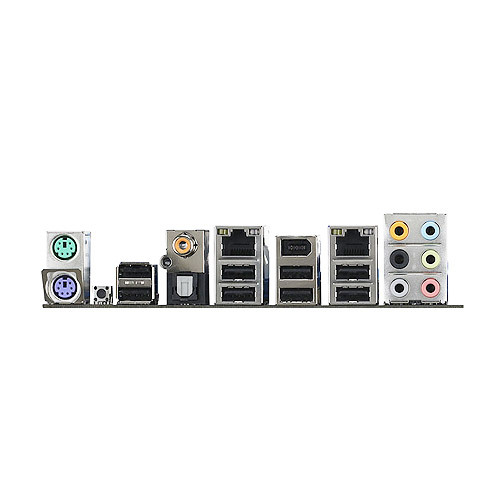

[ Rear Ports ][ Schematic ]

Asus P7P55D Deluxe Picture 13865Asus P7P55D Deluxe Picture 13866Asus P7P55D Deluxe Picture 13867Asus P7P55D Deluxe Picture 13882Asus P7P55D Deluxe Picture 13884
Model: Asus P7P55D Deluxe

Specifications:
spacer
Socket  1156
CPU Compatibility  Intel Core i5/i7
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  P55
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking
Cooling System  Heat Pipes
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1600 MHz
Number of Slots  4
Maximum Size per Slot  4 GB
Maximum Amount Supported  16 GB
External Connections
USB 2.0  8
Firewire  1
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical and Coaxial
LAN (RJ45)  2
Internal Connections
USB 2.0  3 (providing 6 ports)
Firewire  1
IDE  2 Devices
Expansion Slots
Slot 1  PCI
Slot 2  PCI Express 2.0 x16
Slot 3  PCI
Slot 4  PCI Express 2.0 x4 in a x16 size
Slot 5  PCI Express 2.0 x1
Slot 6  PCI Express 2.0 x1
Slot 7  PCI Express 2.0 x16
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10,JBOD
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

Internal Connections
SATA2: 9




with the Asus P7P55D Deluxe.
