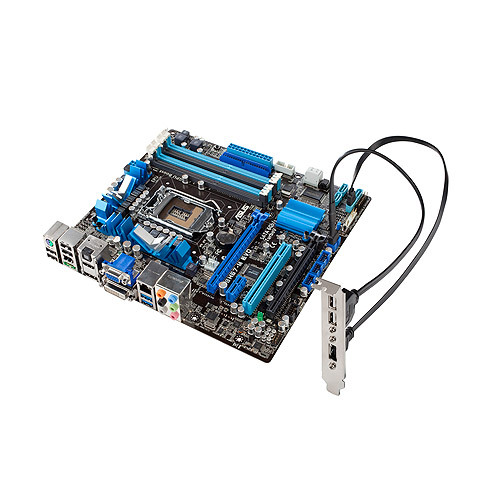

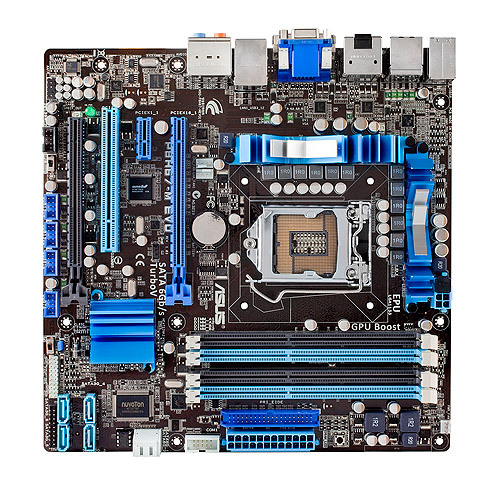

Asus P8H67-M EVO REV 3.0

Motherboard

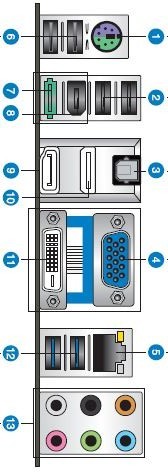

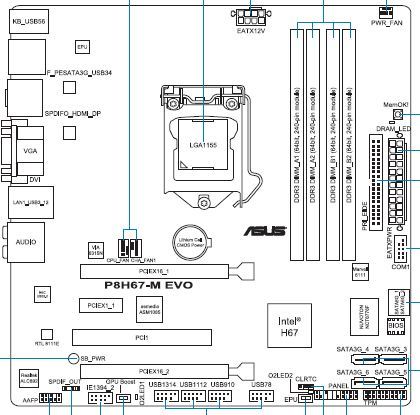

[ Rear Ports ][ Schematic ]

Asus P8H67-M EVO REV 3.0 Picture 16707Asus P8H67-M EVO REV 3.0 Picture 16708Asus P8H67-M EVO REV 3.0 Picture 16705Asus P8H67-M EVO REV 3.0 Picture 16706
Model: Asus P8H67-M EVO

Specifications:
spacer
Socket  1155
CPU Compatibility  Intel Core i3/i5/i7
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  H67 Express
Front Side Bus  QuickPath Interconnect
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8111E
Audio Controller  Realtek ALC 892 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR3
Maximum Speed  1333 MHz
Number of Slots  4
Maximum Size per Slot  8 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Maximum Shared Memory  128 MB
Maximum Resolution  1920x1200
DVI  1
VGA  1
HDMI  1
DisplayPort  1
External Connections
USB 2.0  4
USB 3.2 Gen 1 (USB 3.0)  2
Firewire  1
PS/2 Keyboard  Yes
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
External SATA  1
LAN (RJ45)  1
Internal Connections
USB 2.0  4 (providing 8 ports)
SATA II 3.0Gbps  4
SATA III 6.0Gbps  2
IDE  2 Devices
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel H67
SATA III 6.0Gbps Controller 1  2 port - Marvell 88SE6111
Expansion Slots
Slot 1  PCI Express 2.0 x16
Slot 2  PCI Express x1
Slot 3  PCI
Slot 4  PCI Express x4 in a x16 size
Additional Information
RAID Support  0,1,5,10
Dimensions
Height  244 mm (9.6 in)
Width  244 mm (9.6 in)


with the Asus P8H67-M EVO REV 3.0.
