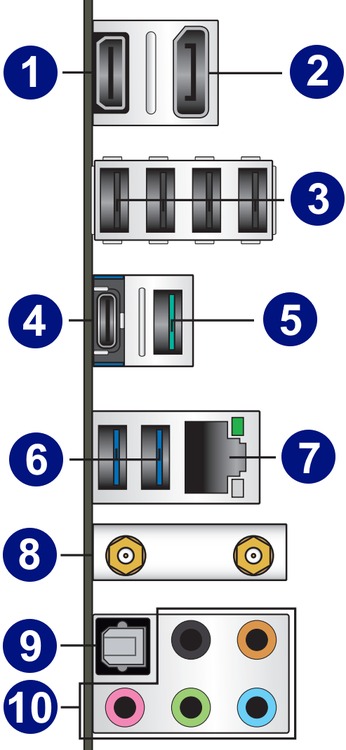

Asus TUF B760M-PLUS WIFI II Ports
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Asus TUF B760M-PLUS WIFI II Schematic
The primary PCI-Express 5.0 x16 slot is perfect for a video card - though one is not required, if the built-in graphics from the Intel processor is sufficient for your workflow. Additional PCIe x1 and x4 slots are also available for other expansion cards.
For external connectivity, it has both analog and digital audio outputs, 2.5Gb Ethernet, WiFi 6E, Bluetooth 5.2, eight USB ports of varying speeds (including one Type C), and HDMI & DisplayPort outputs for the on-chip Intel graphics.
Model: Asus TUFGAMINGB760M-PLUSWIFI II
Specifications
| Socket | 1700 |
| CPU Compatibility | Alder Lake |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | B760 |
| Front Side Bus | DMI 4.0 |
| Network Connectivity | 2.5G Networking + WiFi 6e |
| Audio Controller | Onboard Realtek ALC4080 HD Audio |
| Color | Black |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 128 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Dependent |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 7680x4320 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| DisplayPort | 1 |
| DisplayPort Version | 1.4 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | No |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 3 |
| M.2 Support | 2x 80mm PCIe 4.0, 1x 80mm PCIe 4.0 (x2) |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | Intel B760 (1-4) |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | PCI Express 4.0 x1 |
| Slot 4 | PCI Express 4.0 x4 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Built-in Webcam | No |
| Built-in Microphone | No |
| Bluetooth | Yes (5.2) |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.33 kg (2.9 lbs) |
