Asus WS C422 PRO/SE

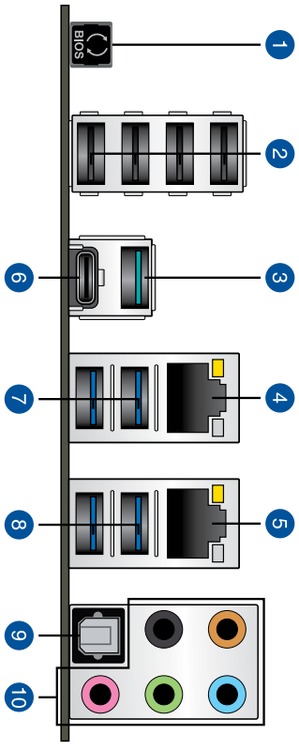

[ Rear Ports ][ Schematic ]

Asus WS C422 PRO/SE Picture 48341Asus WS C422 PRO/SE Picture 48342Asus WS C422 PRO/SE Picture 48344Asus WS C422 PRO/SE Picture 48338Asus WS C422 PRO/SE Picture 48337
The Asus WS C422 PRO/SE is a workstation motherboard, built for Intel's Xeon W line of processors. It features multiple PCI-Express slots, high RAM capacity (up to 512GB!), and a nice set of rear panel I/O ports more akin to those found on consumer motherboards than what is usually available for the Xeon processor family.

In terms of connectivity, the WS C422 PRO/SE has five PCI-E 3.0 slots of varying sizes - supporting up to three double-width video cards for multi-GPU applications. It also has two M.2 connectors, one U.2, and six SATA ports for internal drives. Externally, it has four USB 2.0, four USB 3.0, two USB 3.1 (including one Type C port), two Gb Ethernet ports, and both analog and digital audio jacks.
Model: Asus WS C422 PRO/SE

Socket  2066
CPU Compatibility  Xeon W
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  C422
Front Side Bus  DMI 3.0
Network Connectivity  Dual Gigabit Networking
Network Controller  Intel I210-AT
Audio Controller  Onboard Realtek ALC S1220A
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2666 MHz
Number of Slots  8
Maximum Size per Slot  64 GB
Maximum Amount Supported  512 GB
External Connections
USB 2.0  4
USB 3.2 Gen 1 (USB 3.0)  4
USB 3.2 Gen 2 (USB 3.1)  1
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Gen 1 Type C  1
SATA III 6.0Gbps  6
M.2 Connector  2
M.2 Support  X1 42-110mm NVMe, x1 42-80mm NVMe+SATA
U.2 Connector  1
Serial (Com)  1
TPM (module sold separately)  1
Compatible TPM  Asus TPM-M R2.0
SATA Controllers
SATA III 6.0Gbps Controller 1  Intel
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  Slot not available on this board
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x4
Slot 5  PCI Express 3.0 x16
Slot 6  PCI Express 3.0 x8 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0, 1, 10
Bluetooth  No
Dual GPU Slot Spacing  2-Slot
Integrated IO Shield  No
BIOS Features
EZ Flash  Yes
OC Profiles  Yes
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)
Net Weight  1.294 kg (2.9 lbs)


3 Years
