Asus Z9PE-D8 WS Ports

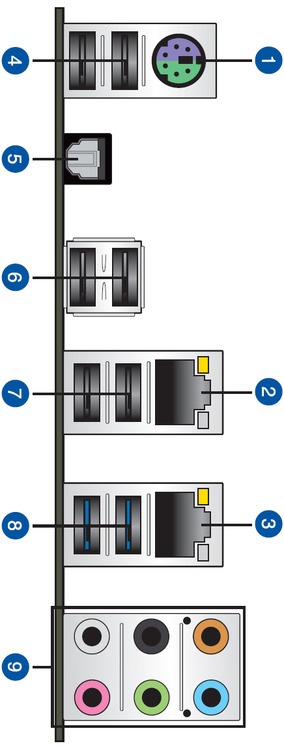

PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Asus Z9PE-D8 WS Schematic
Note: As this is a server/workstation motherboard, some desktop features are not present: specifically, standby/sleep functionality is not guaranteed.
Model: Asus Z9PE-D8 WS
Specifications
| Socket | Dual 2011 |
| CPU Compatibility | Intel Xeon E5-2600 Family |
| Form Factor | EATX |
| Chipset Manufacturer | Intel |
| Chipset | C602 |
| Front Side Bus | QuickPath Interconnect |
| Wired Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel 82574L |
| Audio Controller | Realtek ALC 898 8-Channel High Definition Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR3 ECC Registered |
| Maximum Speed | 1600 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 256 GB |
Onboard Video | |
| Processor Type | Aspeed AST2300 |
| Notes: | No external ports, used only for the optional remote management module |
External Connections | |
| USB 2.0 | 6 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA II 3.0Gbps | 8 |
| SATA III 6.0Gbps | 6 |
| Serial (Com) | 2 |
| Firewire | 2 |
SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 4 port - Intel C602 |
| SATA II 3.0Gbps Controller 2 | 4 port - Intel C602 |
| SATA III 6.0Gbps Controller 1 | 2 port - Intel C602 |
| SATA III 6.0Gbps Controller 2 | 4 port - Marvell 9230 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 3.0 x8 in a x16 size |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | PCI Express 3.0 x8 in a x16 size |
| Slot 7 | PCI Express 3.0 x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
Supports the Asus ASMB6-iKVM remote management module.
