Gigabyte MW51-HP0

Motherboard

Gigabyte MW51-HP0 Main Picture


Gigabyte MW51-HP0 Picture 46510Gigabyte MW51-HP0 Picture 46511
The Gigabyte MW51-HP0 is a workstation and server oriented motherboard, built for Intel's Xeon W line of processors. It pairs a lot of PCI-Express slots and high RAM capacity (up to 512GB!) with a nice set of rear panel I/O ports, more commonly found on consumer motherboards than those for processors in the Xeon family.

Speaking of connectivity, the MW51-HP0 has seven PCI-E 3.0 slots, which can either be set up as four x16 or one x16 and six x8 slots. It also has one M.2 connector, one U.2, and ten SATA ports for internal drives. Externally, it has eight USB 3.0, two USB 3.1 (including one Type C port), two Gb Ethernet ports, PS/2 ports for legacy mice and keyboards, and both analog and digital audio jacks.

Model: Gigabyte MW51-HP0

Specifications

Socket 2066
CPU Compatibility Xeon W
Form Factor CEB
Chipset Manufacturer Intel
Chipset C422
Front Side Bus DMI 3.0
Network Connectivity Dual Gigabit Networking
Network Controller Intel I210
Audio Controller Onboard Realtek ALC1150 HD Audio
Cooling System Heatsink
Color Black
Memory Support
Type DDR4 ECC Registered
Maximum Speed 2666 MHz
Number of Slots 8
Maximum Size per Slot 64 GB
Maximum Amount Supported 512 GB

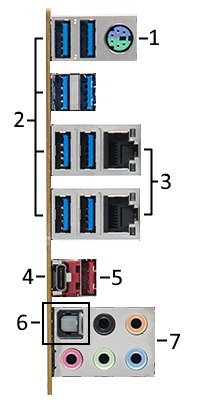

External Connections
USB 3.2 Gen 1 (USB 3.0) 8
USB 3.2 Gen 2 (USB 3.1) 1
USB 3.2 Type C 1
PS/2 Keyboard Yes
PS/2 Mouse Yes
Audio Out Surround Sound (7.1)
Audio In Line-In/Microphone
S/PDIF Optical
LAN (RJ45) 2
Wireless Antenna Port No
Internal Connections
USB 2.0 1 (providing 2 ports)
USB 3.2 Gen 1 (USB 3.0) 2
SATA III 6.0Gbps 10
M.2 Connector 1
M.2 Support 42-110mm, PCIe x4
U.2 Connector 1
Serial (Com) 2
TPM (module sold separately) 1
Compatible TPM 14-1
SATA Controllers
SATA III 6.0Gbps Controller 1 8x Intel
SATA III 6.0Gbps Controller 2 2x Marvel
Expansion Slots
Slot 1 PCI Express 3.0 x16
Slot 2 PCI Express 3.0 x8 in a x16 size
Slot 3 PCI Express 3.0 x16
Slot 4 PCI Express 3.0 x8 in a x16 size
Slot 5 PCI Express 3.0 x16
Slot 6 PCI Express 3.0 x8 in a x16 size
Slot 7 PCI Express 3.0 x16
Additional Information
SLI Compatible Yes
Crossfire Compatible Yes
RAID Support SATA RAID 0/1/10/5
Bluetooth No
Dual GPU Slot Spacing 2-Slot
Dimensions
Height 304.8 mm (12.0 in)
Width 266.7 mm (10.5 in)

Warranty

3 Years
