Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen)

Motherboard

Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22921Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22922Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22711Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22712Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22713Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22714Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22715Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22828Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22829Puget V552i 15.6-inch Notebook w/ GT 660M (Glossy Screen) Picture 22830
Model: Clevo W350ETQ

Specifications:
spacer
Socket  PGA988
CPU Compatibility  Intel Core i5/i7 Mobile
Form Factor  Notebook
Chipset Manufacturer  Intel
Chipset  HM77
Network Connectivity  Gigabit Networking
Network Controller  Realtek 8167
Audio Controller  Realtek High Definition Audio
Cooling System  Heatsink and Fan
Number of Fans  1
Color  Black
Notebook-Display
Screen Size  15.6 Inch
Widescreen  Yes
Native Resolution  Full HD (1920x1080)
Surface  Glossy Finish
Memory Support
Type  DDR3 SODIMM
Maximum Speed  1600 MHz
Number of Slots  3
Maximum Size per Slot  8 GB
Maximum Amount Supported  24 GB
Onboard Video
Chipset Manufacturer  nVidia
Processor Type  Geforce GT 660M
Onboard Memory  2048 MB
Maximum Resolution  3840x2160
VGA  1
HDMI  1
HDMI Version  1.4a

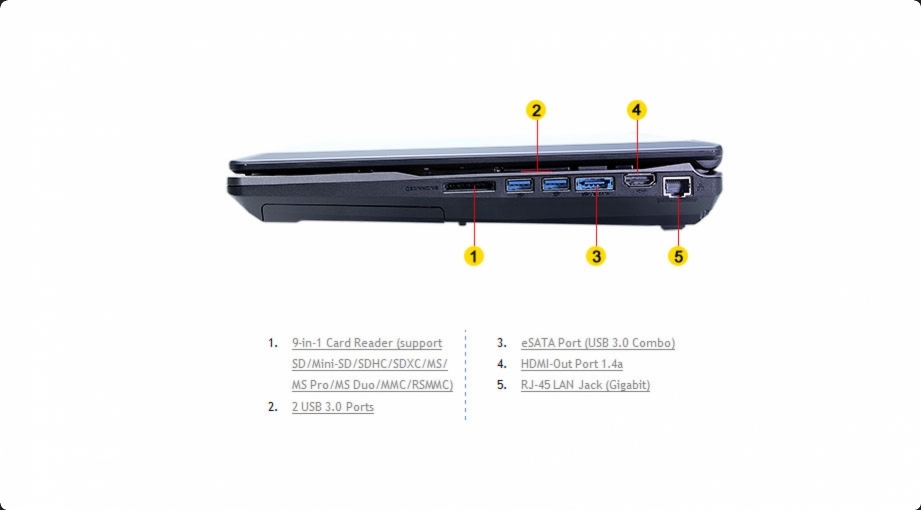

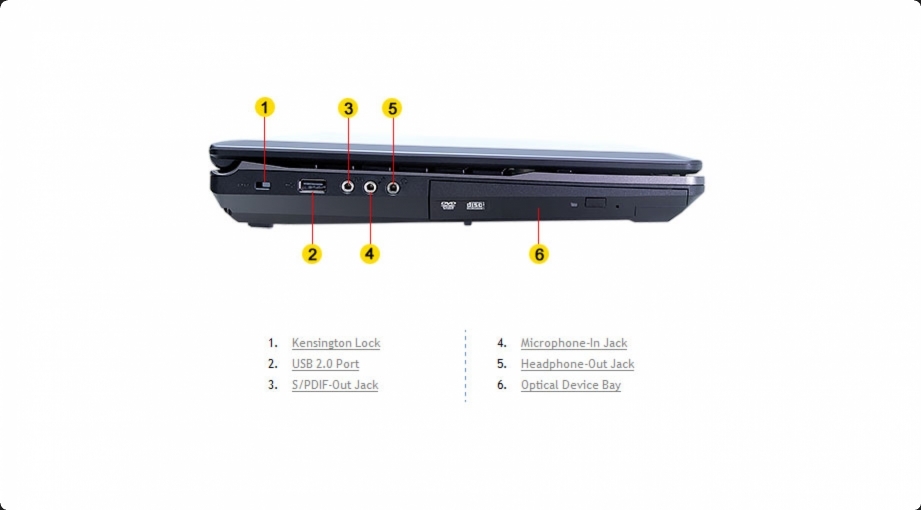

External Connections
USB 2.0  1
USB 3.2 Gen 1 (USB 3.0)  2
Audio Out  Stereo
Audio In  Line-In/Microphone
External SATA  1
LAN (RJ45)  1
Memory Card Reader  MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini SD/SDHC/SDXC
Fingerprint Reader  No
Internal Connections
SATA II 3.0Gbps  1
SATA III 6.0Gbps  2
SATA Controllers
SATA II 3.0Gbps Controller 1  Intel HM77
SATA III 6.0Gbps Controller 1  Intel HM77
Additional Information
SLI Compatible  No
Crossfire Compatible  No
Built-in Webcam  2.0Mpx
BIOS Features
UEFI BIOS  No
EZ Flash  No
OC Profiles  No
Dimensions
Height  43 mm (1.7 in)
Width  374 mm (14.7 in)
Depth  250 mm (9.8 in)
Net Weight  2.9 kg (6.4 lbs)
AC Adapter Input
Voltage  100-240 Vac
Frequency  50-60 Hz
AC Adapter Output
DC Voltage  19 V
Amperage  6.3 A

Wireless and Bluetooth are purchased separately.

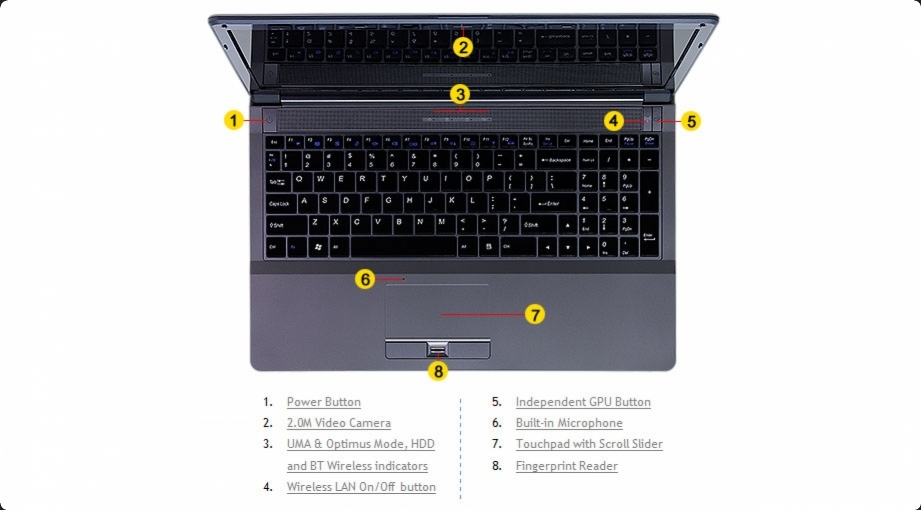

Switchable graphics button:
Green - Conserve Power Mode - Limit system to Intel graphics only
Orange - Performance Mode - Automatically select which graphics (Intel or NVIDIA) to use. By default the Intel graphics will be used, but will automatically switch to the NVIDIA graphics for higher-end 3D applications

Unit allows for two concurrent displays at once (built-in screen plus one external display).

Bluetooth functionality is disabled on startup by default and must be enabled with the function keys.
