Supermicro X9SRA

Motherboard

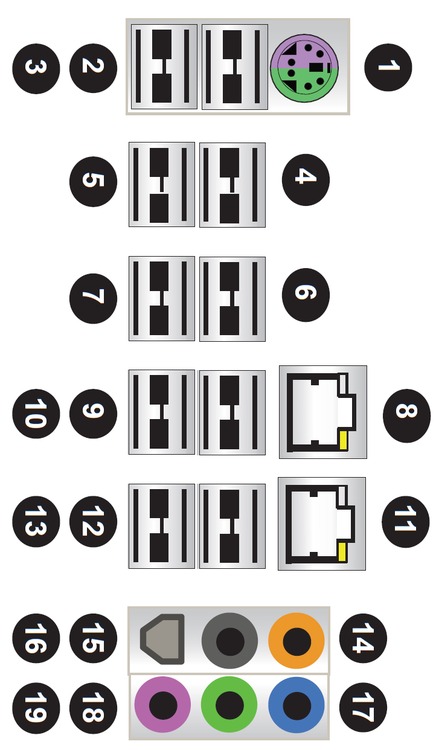

[ Rear Ports ][ Schematic ]

Supermicro X9SRA Picture 28881Supermicro X9SRA Picture 28882Supermicro X9SRA Picture 26746Supermicro X9SRA Picture 26745

Note: As this is a workstation motherboard, some desktop features are not present: specifically, S3 standby/sleep functionality is not guaranteed.

Model: Supermicro X9SRA

Specifications:
spacer
Socket  2011
CPU Compatibility  Intel Xeon E5-2600/1600 v2 Family, Core i7 v2/v3 Extreme/Performance processors (Ci7 CPU only works w/ Non-ECC UDIMM)
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  C602
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking
Network Controller  Intel 82579LM and Intel 82574L
Cooling System  Heatsink
Color  Green
Memory Support
Type  DDR3 ECC Registered
Maximum Speed  1600 MHz
Number of Slots  8
Maximum Size per Slot  32 GB
Maximum Amount Supported  256 GB
External Connections
USB 2.0  8
USB 3.0  2
PS/2 Keyboard  Yes
Audio Out  Surround Sound (5.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Internal Connections
USB 2.0  3 (providing 6 ports)
USB 3.0  1 (providing 2 ports)
SATA II 3.0Gbps  8
SATA III 6.0Gbps  2
Serial (Com)  2
TPM (module sold separately)  1
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel C602
SATA II 3.0Gbps Controller 2  4 port - Intel C602 SCU
SATA III 6.0Gbps Controller 1  2 port - Intel C602
Expansion Slots
Slot 2  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x16
Slot 5  PCI
Slot 6  PCI Express 3.0 x4 in a x8 size
Slot 7  PCI Express 2.0 x4 in a x8 size
Additional Information
RAID Support  0,1,5,10
BIOS Features
UEFI BIOS  Yes
EZ Flash  No
OC Profiles  No
Dimensions
Height  305 mm (12.0 in)
Width  330 mm (13.0 in)


with the Supermicro X9SRA.
