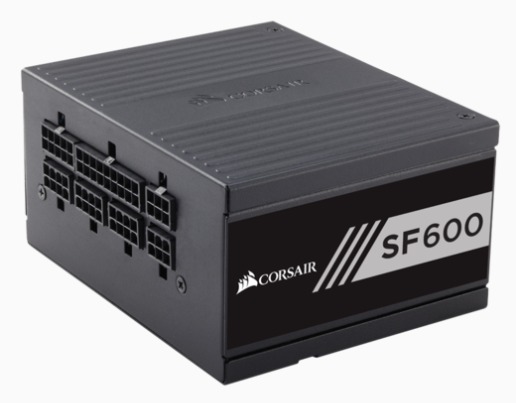

The Corsair SF600 power supply is a small form factor SFX power supply, ideally suited to use in our smaller ITX cases. It is very efficient, with an 80 PLUS Gold rating, while offering plenty of wattage for any hardware combination that our slim chassis can accommodate. Cooling is handled by a 92mm fan which turns off entirely at low power loads.
Please note that due to the smaller size of this PSU, it cannot be used in larger cases which are designed for full ATX power supplies.
Please note that due to the smaller size of this PSU, it cannot be used in larger cases which are designed for full ATX power supplies.
Model: Corsair CP-9020105-NA
Specifications
| Maximum Power | 600 W |
| Efficiency Certification | 80 PLUS Gold |

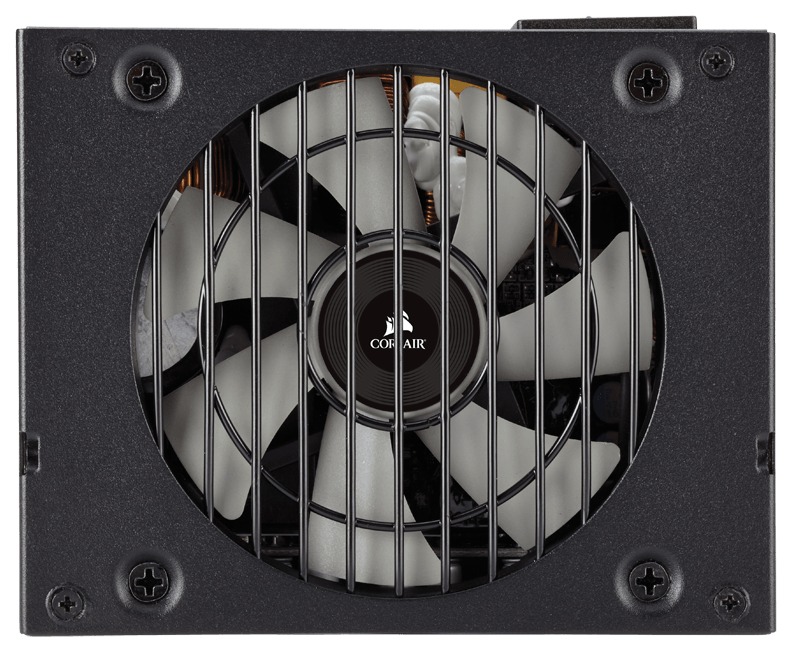

| Cooling System | 92mm Fan |
| Noise Level | 0-35 dB |
Power Distribution | |
| +3.3V rail | 20 amps |
| +5V rail | 20 amps |
| +12V1 rail | 50 amps |
Connectors | |
| Molex | 4 |
| SATA | 4 |
| PCIe 8-Pin | 2 |
| CPU Power 8/4 pin | 1 |

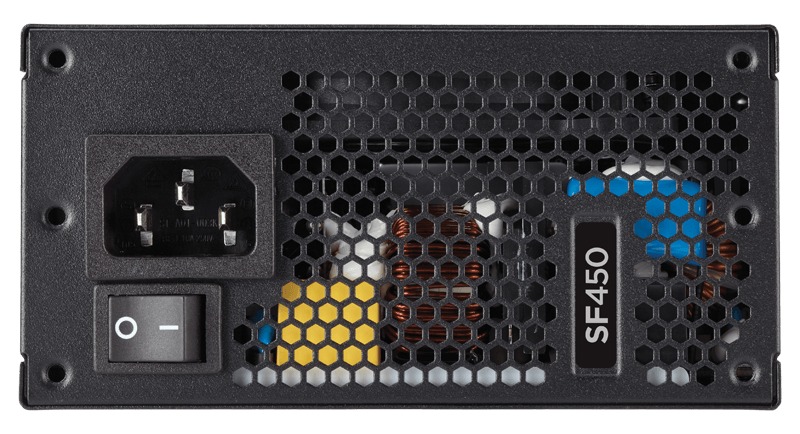

| External Connector Type | C13 |
Dimensions | |
| Height | 100 mm (3.9 in) |
| Width | 63 mm (2.5 in) |
| Depth | 125 mm (4.9 in) |
| Net Weight | .86 kg (1.9 lbs) |
Input | |
| Voltage | 100-240 Vac |
| Frequency | 47-63 Hz |
