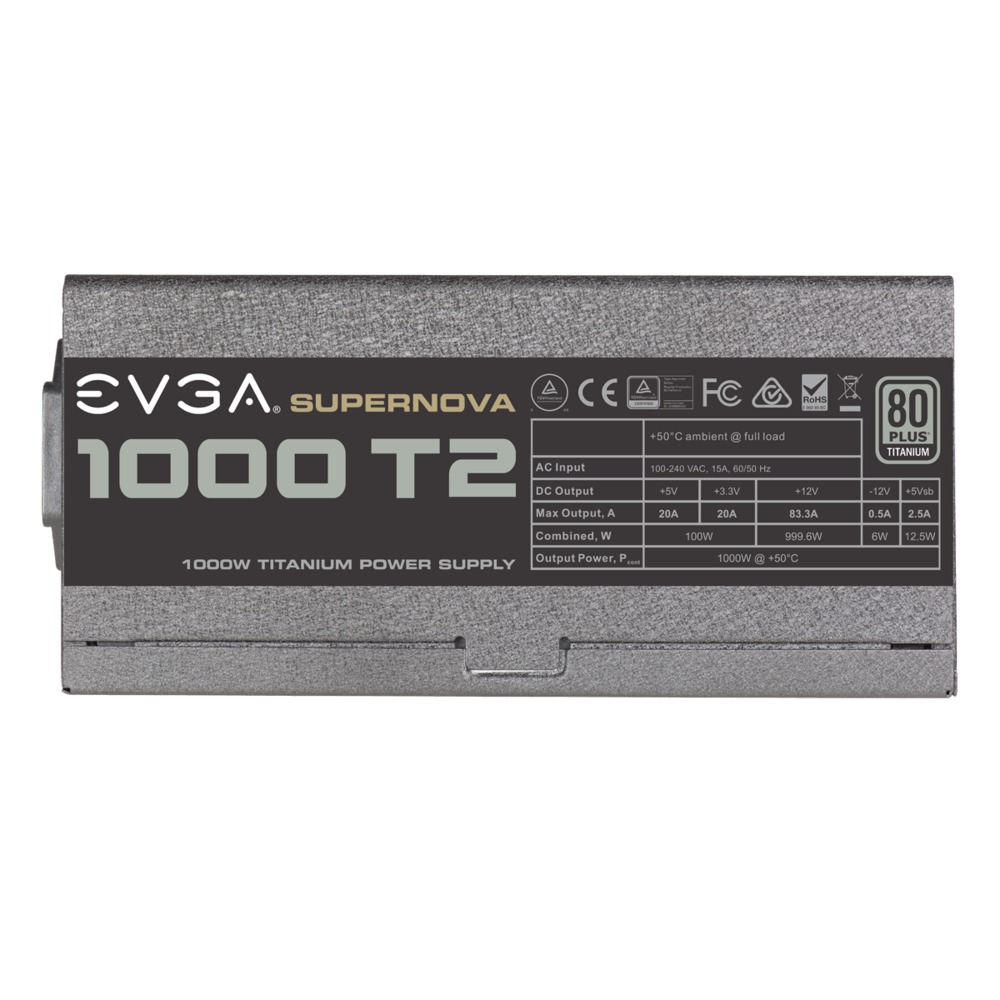

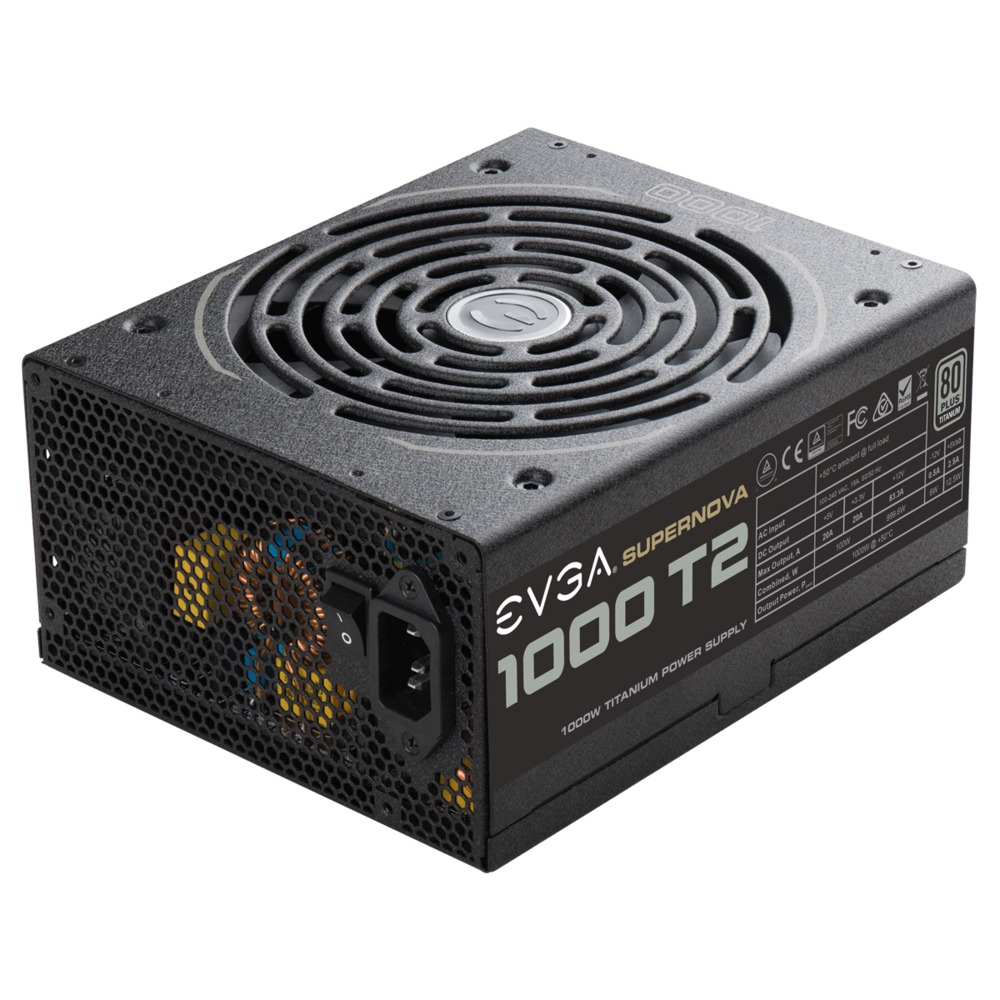

EVGA SuperNOVA 1000W T2 Power Supply

Power Supply

EVGA SuperNOVA 1000W T2 Power Supply Picture 65178EVGA SuperNOVA 1000W T2 Power Supply Picture 65179EVGA SuperNOVA 1000W T2 Power Supply Picture 65180EVGA SuperNOVA 1000W T2 Power Supply Picture 65181
Sorry, we have no advice for this part! Ask us and we'll add some.
Model: EVGA 220-T2-1000-X1

Specifications:
spacer
Maximum Power  1000 W
Standard Compliance  OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Peak Efficiency  94 %
Efficiency Certification  80 PLUS Titanium
Cooling System  Quiet 140mm Fan
Power Distribution
+3.3V rail  20 amps
+5V rail  20 amps
+12V1 rail  83.3 amps
Combined +12V Maximum  83.3 amps

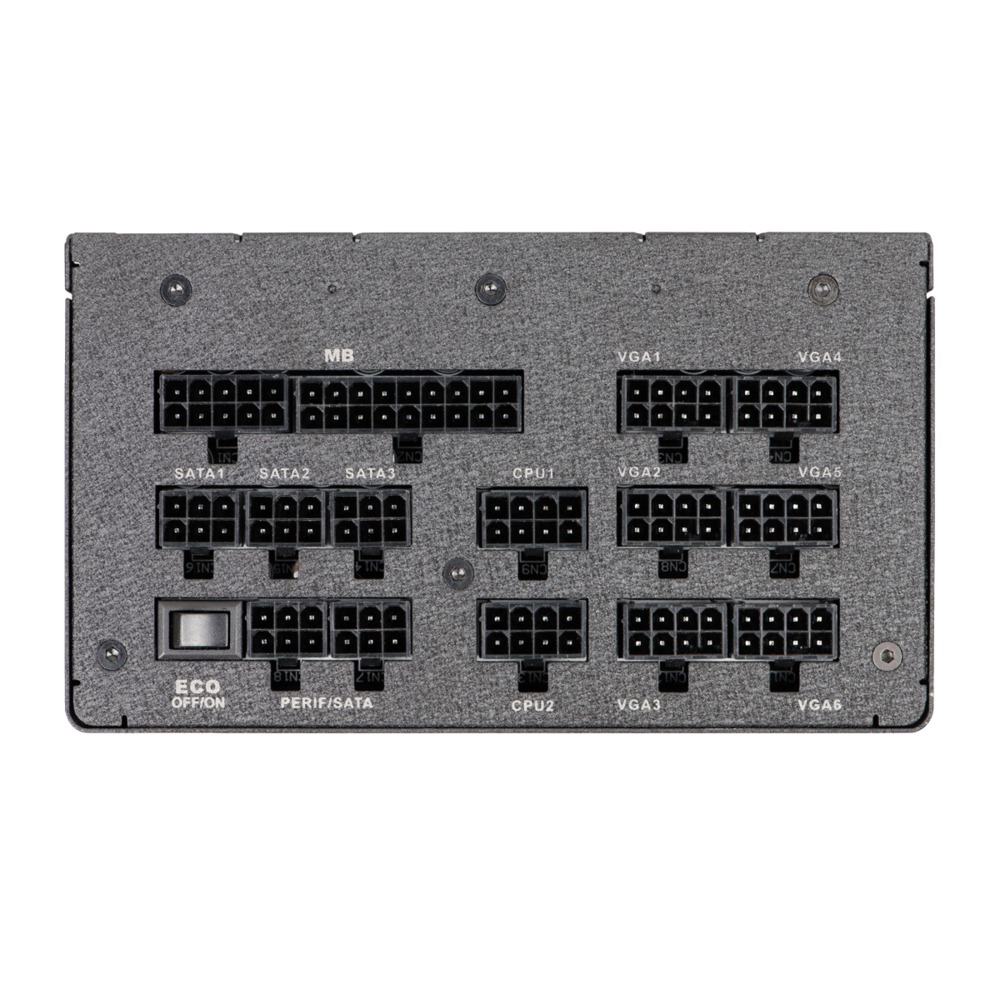

Connectors
Molex  6
SATA  9
Floppy  1
PCI Express  2
PCI Express 8-pin  6
CPU Power 8/4 pin  2
External Connector Type  C13
Dimensions
Height  85 mm (3.3 in)
Width  150 mm (5.9 in)
Depth  180 mm (7.1 in)
Net Weight  4.53 kg (10.0 lbs)
Input
Voltage  100-240 Vac
Frequency  50/60 Hz
